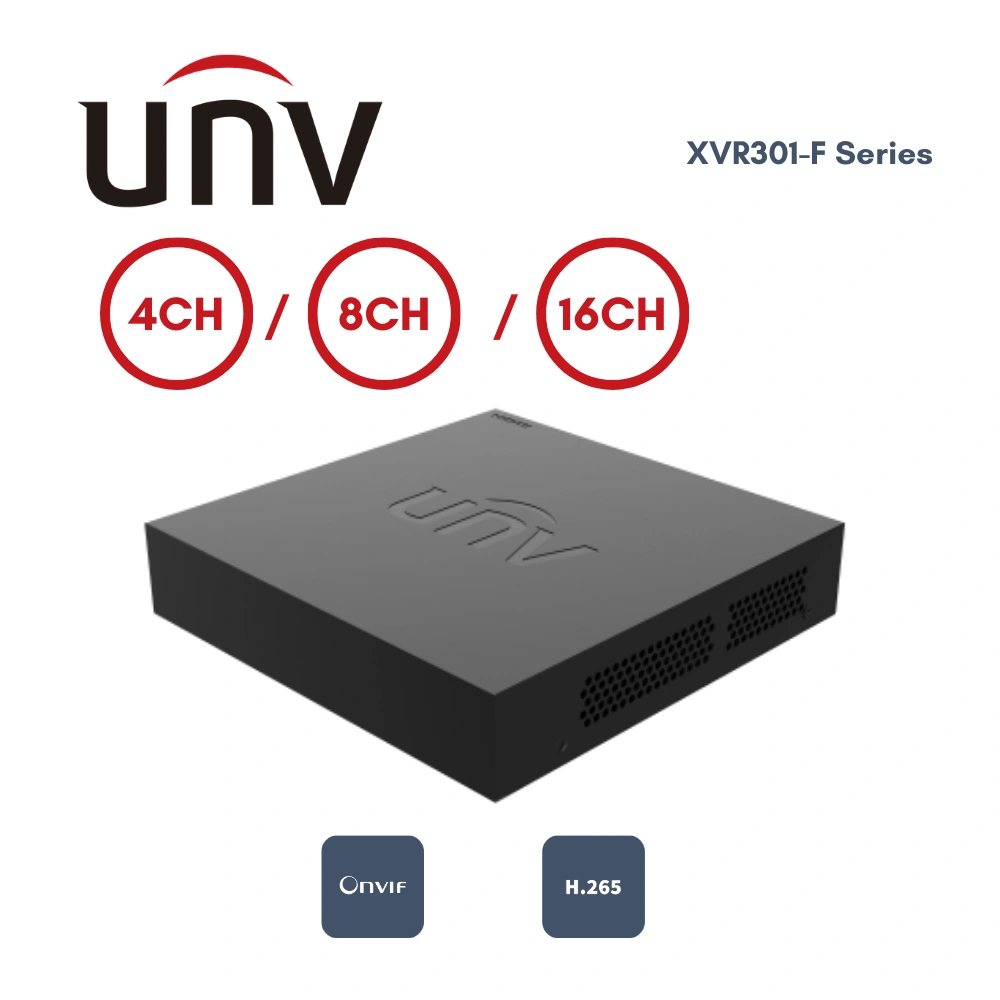

เครื่องบันทึกภาพ XVR UNV 4/8/16CH รุ่น XVR301-F Series รองรับสัญญาณได้หลายระบบทั้ง TVI/AHD/CVI/CVBS/IP Cameras ติดตั้งใช้งานร่วมกับกล้องวงจรปิดได้หลากหลายรุ่น รองรับรูปแบบการบีบอัดวิดีโอ H.265/H.264 แสดงผลผ่านพอร์ต HDMI และ VGA พร้อมกันที่ความละเอียดสูงสุด 1920×1080 รองรับการอัปเกรดกล้องแอนะล็อกผ่านสาย Coaxial รองรับการเชื่อมต่อกล้องผ่านสาย Coaxial ระยะไกล และรองรับโปรโตคอล ONVIF และ RTSP เพื่อการทำงานร่วมกับกล้องได้อย่างหลากหลาย เหมาะสำหรับติดตั้งระบบกล้องวงจรปิดทั้งภายในและภายนอกอาคาร
1 HDD 4-Ch 1U Digital Video Recorder
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Control the dual-light of UNV analog cameras under TVI
- Support analog camera upgrade over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920×1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
XVR301-04F | XVR301-08F | XVR301-16F | ||||||||||
Video/Audio Input | ||||||||||||
| IP Video Input | 2-ch | |||||||||||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC | 16-ch, BNC | |||||||||
| Max IP Video Input | 6-ch | 10-ch | 18-ch | |||||||||
| Supported Analog Camera Types | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input | |||||||||||
Video/Audio Output | ||||||||||||
| HDMI Output | HDMI: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |||||||||||
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |||||||||||
| Live View Display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | HDMI/VGA: 1/4/6/8/9/25 | |||||||||
Encoding/Decoding | ||||||||||||
| Recording Resolution | 1080P Lite/720P/D1 | |||||||||||
| Recording Frame Rate | Main stream: 1080P Lite@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps | Main stream: 1080P Lite@15fps Sub stream: D1@12fps Main stream: 720P@15fps Sub stream: D1@15fps | Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@15fps Sub stream: D1@15fps | |||||||||
| Audio Sample Rate | 8 kHz, 16 bit per channel | |||||||||||
| Audio Bit Rate | 64 Kbps per channel | |||||||||||
| Decoding Capability | Analog:4 x 1080P Lite@25, 4 x 720P@30
| Analog:8x 1080P Lite @15, 8x 720P @15
| Analog:16x 1080P Lite@12, 16x 720P@15
| |||||||||
Two-way Audio | ||||||||||||
| Two-way Audio | N/A | |||||||||||
Analog Snapshot | ||||||||||||
| FTP/Schedule/Event Snapshot | FTP/Event snapshot:4-ch snapshot, up to 704*576 resolution, Schedule snapshot: -not supported | FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution, Schedule snapshot: -not supported | FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution, Schedule snapshot: -not supported | |||||||||
Network | ||||||||||||
| Incoming Bandwidth | 24Mbps (Up to 32Mbps after all analog channel conversion) | 24Mbps (Up to 40Mbps after all analog channel conversion) | 24Mbps (Up to 56Mbps after all analog channel conversion) | |||||||||
| Outgoing Bandwidth | 48Mbps | 64Mbps | 64Mbps | |||||||||
| Remote Users | 128 | |||||||||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||||||||||
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||||||||||
Smart | ||||||||||||
| Analog Smart by XVR | Ultra Motion Detection (UMD) | |||||||||||
| VCA Search | Behavior Search | |||||||||||
| Smart Functions by XVR | 4-ch (UMD) | 8-ch (UMD) | 8-ch (UMD) | |||||||||
Alarm | ||||||||||||
| General Alarm | Motion | |||||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||||||||
GUI Language | ||||||||||||
| GUI Language | 20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian | |||||||||||
Hard Disk | ||||||||||||
| SATA | 1 SATA interface | |||||||||||
| Capacity | Up to 6 TB for each HDD | |||||||||||
External Interface | ||||||||||||
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface | |||||||||||
| USB | Rear panel: 2 × USB2.0 | |||||||||||
| Power Supply | DC 12 V/1.5 A | |||||||||||
Working Environment | ||||||||||||
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) | |||||||||||
| Working Humidity | ≤ 90% RH (non-condensing) | |||||||||||
| Power Consumption (without HDD) | ≤ 10W | |||||||||||
Dimensions | ||||||||||||
| Weight (without HDD) | ≤0.6 Kg ( 1.32lb ) | ≤0.6 Kg ( 1.32lb ) | ≤0.85 Kg ( 1.87lb ) | |||||||||
| Dimensions | 190mm × 202mm × 42mm (7.5″ × 7.9″ × 1.6″) | 190mm × 202mm × 42mm (7.5″ × 7.9″ × 1.6″) | 253mm × 212mm × 42mm (10.0″ × 8.4″ × 1.7″) | |||||||||
Certification | ||||||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||||||
| FCC | Part15 Subpart B | |||||||||||
