เซ็นเซอร์กันขโมย VXI-R จาก Optex เป็นอุปกรณ์ตรวจจับการเคลื่อนไหวสำหรับติดตั้งภายนอกอาคาร ออกแบบมาเพื่อเพิ่มความปลอดภัยด้วยการตรวจจับที่แม่นยำและทนทานต่อสภาพแวดล้อม เหมาะสำหรับใช้งานในระบบรักษาความปลอดภัยของบ้านและอาคาร

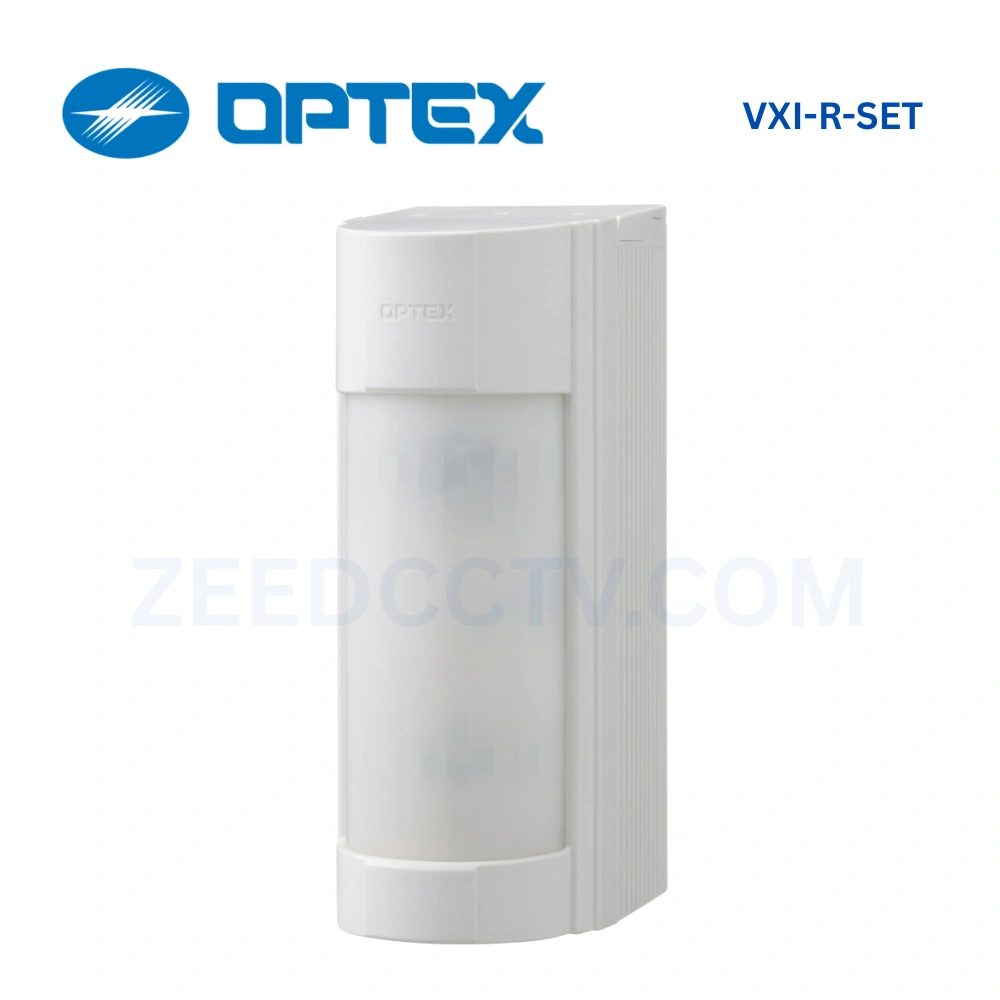

เซ็นเซอร์กันขโมย VXI-R / VX Infinity “R” model เซนเซอร์ตรวจจับผู้บุกรุกภายนอกแบบไร้สาย VXI-R พัฒนาความเสถียรและความแม่นยำเพื่อให้ทนทานต่อการใช้ในสภาพแวดล้อมภายนอกที่ควบคุมได้ยาก ตัวอุปกรณ์รองรับตัวส่งสัญญาณได้หลากหลาย สามารถปรับการใช้งานกับระบบรักษาความปลอดภัยเดิมที่ใช้งานอยู่แล้ว เพื่อยกระดับความปลอดภัยเน้นป้องกันตั้งแต่ก่อนเกิดเหตุ ผู้ใช้งานจะได้รับประสบการณ์ที่ดีในการใช้จากเซนเซอร์ที่มีคุณภาพการตรวจจับสูง แทบไม่ได้รับการแจ้งเตือนผิดพลาด และสัญญาณแจ้งเตือนที่เชื่อถือได้เพื่อการระงับเหตุที่รวดเร็ว
- 12 m by 90-degree flexible detection pattern adjustable to 5 ranges
- SMDA logic
- Easy masking for overspill prevention
- Double conductive shielding
- Conduit/TX-battery case for both wired and wireless-ready models
- IP55
Model | VXI-R |
| Detection method | Passive Infrared |
| PIR coverage | 12.0 m (40 ft) wide / 16 zones |
| PIR distance limit | 12 -2.5 m (5 levels) |
| Detectable speed | 0.3 – 1.5 m/s (1 – 5 ft/s) |
| Sensitivity | 2.0 ํC (3.6 ํF ) at 0.6 m/s (2 ft/s) |
| Power input | 3 – 9 V DC (Lithium or Alkaline Battery) |
| Current draw | 9 A (standby) / 4 mA (max) at 3 V DC |
| Alarm period | 2.0 ± 1.0sec. |
| Warm-up period | Approx. 60 sec. (LED blinks) |
| Alarm output | N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.) |
| Trouble output | N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.) |
| LED indicator | Enable: During DIP switch 1 (WALK TEST MODE) or DIP switch 4 (LED) ON Disable: During normal operation Light/Blink: Warm-up, alarm, masking detection (FTN-RAM only) |
| RF interference | No alarm 10 V/m |
| Operation temperature | -20 ± 60 ํC (-4 ± 140 ํF) |
| Environment humidity | 95 % max. |
| International protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor) |
| Mounting height | 0.8 – 1.2 m (2.64 ft – 3’94 ft) |
| Weight | 500 g (17.7 oz) |
| Accessories | Connector for POWER and ALARM, connector for TROUBLE, screw (4 X 20 mm) X 2, Masking seal X 3 |
