กล้องวงจรปิด Analog UNV 5MP รุ่น UAC-B145-AF28(40)LM-DL ดีไซน์แบบทรงกระบอก ให้ภาพคมชัดความละเอียด 5MP รองรับสัญญาณได้หลายระบบทั้ง TVI/AHD/CVI/CVBS ติดตั้งใช้งานร่วมกับเครื่องบันทึกได้หลากหลายรุ่น มาพร้อมฟิลเตอร์ IR-cut พร้อมระบบสลับอัตโนมัติ (ICR) ให้ภาพสีสมจริงในเวลากลางวันและภาพคมชัดในเวลากลางคืน รองรับการกลับภาพแนวนอนและแนวตั้ง 180° ตั้งค่าเมนู OSD ใช้งานง่าย รองรับได้ถึง 11 ภาษา เหมาะสำหรับติดตั้งระบบกล้องวงจรปิดทั้งภายในและภายนอกอาคาร

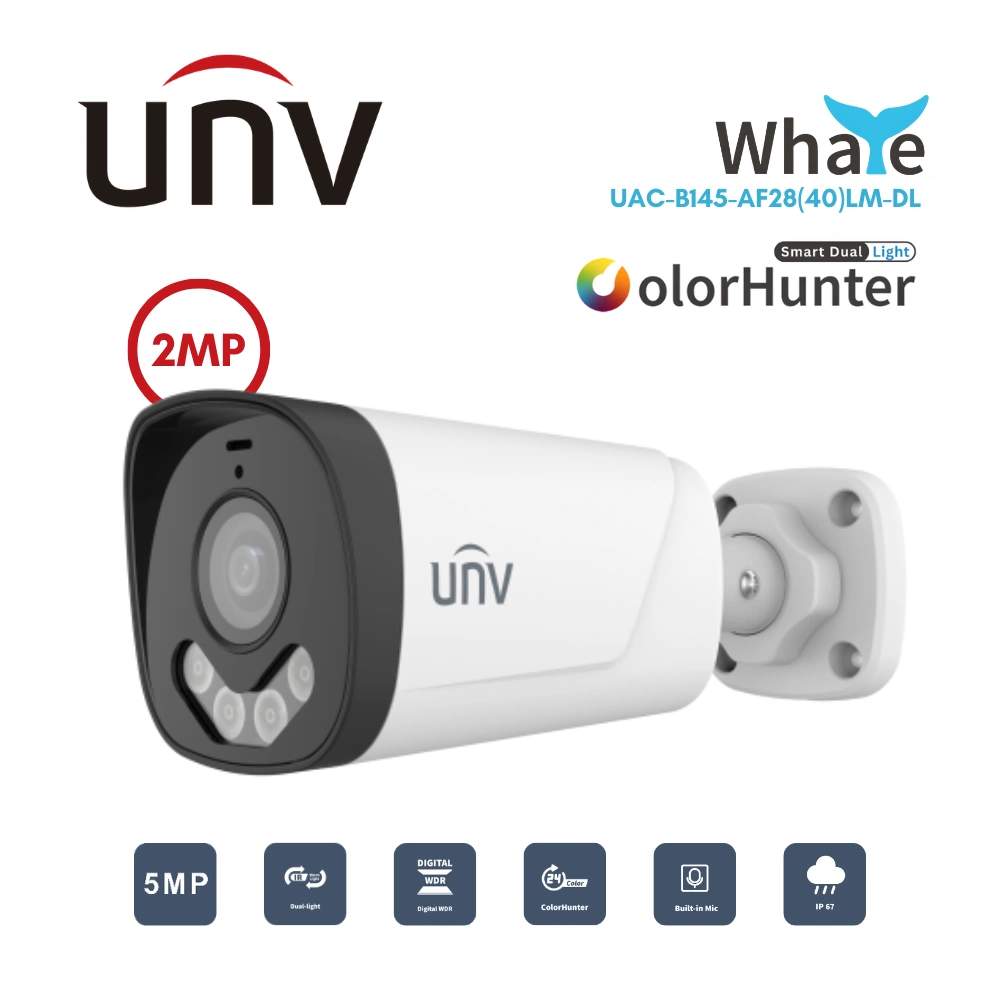

5MP ColorHunter Fixed Dual-light Bullet Analog Camera
- High quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR-cut filter with auto-switch (ICR)
- Smart Dual Light (only TVI)
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
| UAC-B145-AF28LM-DL | UAC-B145-AF40LM-DL | |||||||
Camera | ||||||||
| Max Resolution | 5 MP | |||||||
| Sensor Size | 1/2.7″ CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (Illuminator ON) | |||||||
Lens | ||||||||
| Focus | 2.8 mm | 4.0 mm | ||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 110.0° | 90.0° | ||||||
| Angle of View (V) | 57.0° | 48.0° | ||||||
| Angle of View (D) | 130.0° | 109.1° | ||||||
Illuminator | ||||||||
| Illuminator Number | Two IR illuminators; Two white-light illuminators | |||||||
| Illumination Distance | IR: 40m (131.23 ft) White light: 40m (131.23ft) | |||||||
| Lifetime | ≥ 60000 hours | |||||||
Video | ||||||||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |||||||
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC | |||||||
| Shutter Time | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s | |||||||
Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | DWDR | |||||||
| Light Mode | Dual light (default) , Infrared, White light | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps | |||||||
Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
Operating Environment | ||||||||
| Temperature | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉) | |||||||
| Humidity | ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4kV for power&4kV for video output interfaces | |||||||
General | ||||||||
| Power | DC 12 V ± 25% | |||||||
| Power Consumption | MAX 3.5W | |||||||
| Mount | Corner Mount&Pole Mount | |||||||
| Dimensions | 198mm*74mm*74mm (L*W*H) | |||||||
| Material | Metal + Plastic | |||||||
| Weight | 227g (0.50lb) | 227g(0.50lb) | ||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
