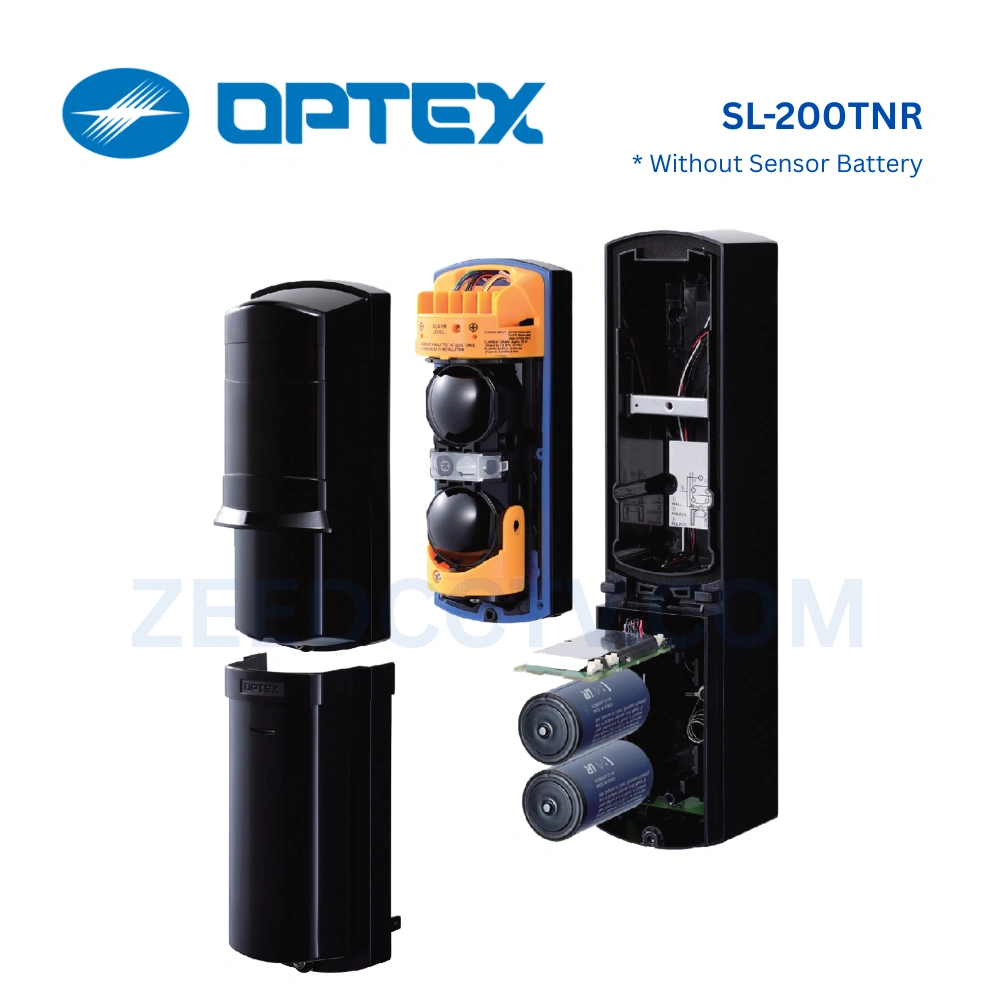

เซ็นเซอร์กันขโมย SL-200TNR จาก Optex เป็นอุปกรณ์ตรวจจับการบุกรุกแบบลำแสงอินฟราเรด ออกแบบมาเพื่อป้องกันการบุกรุกตามแนวรั้วและพื้นที่ภายนอกอาคาร ให้การตรวจจับที่แม่นยำและเสถียร เหมาะสำหรับระบบรักษาความปลอดภัยของบ้านและอาคาร
เซ็นเซอร์กันขโมย SL-200TNR / SL-TNR offers a cost-effective and versatile solution to protect a perimeter line up to 60m long, where cabling is an issue convenient. Both transmitter and receiver beam can be battery powered using D size lithium battery or universal CR123A batteries and the receiver can also be hard-wired.
- Twin Beam
SL-100TNR Detection Range 30m
SL-100TNR Detection Range 60m
- Battery operated detector
D size lithium battery or CR123A lithium battery (OPTION CRH-5)
- Simplified optical adjustment
Sniper ViewFinder with ×2 magnification - Avoids having to install a wireless transmitter in the photoelectric transmitter.
IR signal transmission technology transfers the low battery signal to the receiver - Possible to connect the power and alarm cables to both the receiver and the transmitter or either of them
OPTION PCU-5 - Long battery life
- Battery saving function
- Intermittent output function
- Slim body design
- Easy to see vivid interior color for optical alignment
- Tamper function
- Indicator LED for an easy alignment
- IP65 waterproof structure
Model | SL-200TNR |
| Maximum detection range | 60m (200ft.) |
| Maximum arrival ditance | 530m (1740ft.) |
| Detection method | Twin infrared beam interruption detection |
| Interruption period | Selectable from 50/100/250/500 ms (4 selections) |
| Power source | 3.6 to 3.9VDC D size lithium batteries Each Transmitter and Receiver: 2 ubits (Recommended SB-D02HP manufactured by VITZROCELL) 3.0 VDC CR123A lithium batteries Each Transmitter and Receiver: 8 units (With optional battery holder CRH-5: 2 units) |
| Current draw (stand by/at 25 ํC) 3.6 to 3.9 VDC size Lithium battery | Total: Approx. 600 𝜇A Transmitter : Approx. 300 𝜇A Receiver : Approx. 300 𝜇A |
| Current draw (stand by/at 25 ํC) 3.0 VDC CR123A | Total: Approx. 700 𝜇A Transmitter : Approx. 300 𝜇A Receiver : Approx. 400 𝜇A |
| *Battery life : D size Lithium battery (Transmitter) | Approx. 5 years |
| *Battery life : D size Lithium battery (Receiver) | Approx. 5 years |
| *Battery life : CR123A (Transmitter) | Approx. 1 years |
| *Battery life : CR123A (Receiver) | Approx. 1 years |
| Alarm output | Form C-Solid State Switch : 3.6 VDC, 0.01A |
| Alarm period | 2 s (± 1) |
| Low battery output | N.C. (Solid State Switch): 3.9 VDC, 0.01 A |
| Cover tamper output (Receiver) | N.C. (Solid State Switch): 3.9 VDC, 0.01 A Opens when the battery cover removed |
| Indicator LED : Alarm/Level indicator (Receiver) | NO : Beam not received Blinking : Beam not received sufficiently OFF : Beam received |
| Indicator LED : Power/Low battery indicator (Transmitter and Receiver) | NO : Power ON Blinking : Voltage reduction OFF : Power OFF |
| Operation temperature | -20 ํC to +60 ํC (-4 ํF to + 140 ํF) |
| Operating ambient humidity | 95 % max. |
| Alignment angle | ± 90 ํ Horizontal, ± 5 ํ Vertical |
| Dimension | H × W × D mm (inch): 295 (11.6) × 69 (2.7) × 117 (4.6) |
| Weight | 1200g (42.4 oz) (Total weight of transmitter + receiver, excluding accessories) |
| International protection | IP65 |
Approx. 5 years
