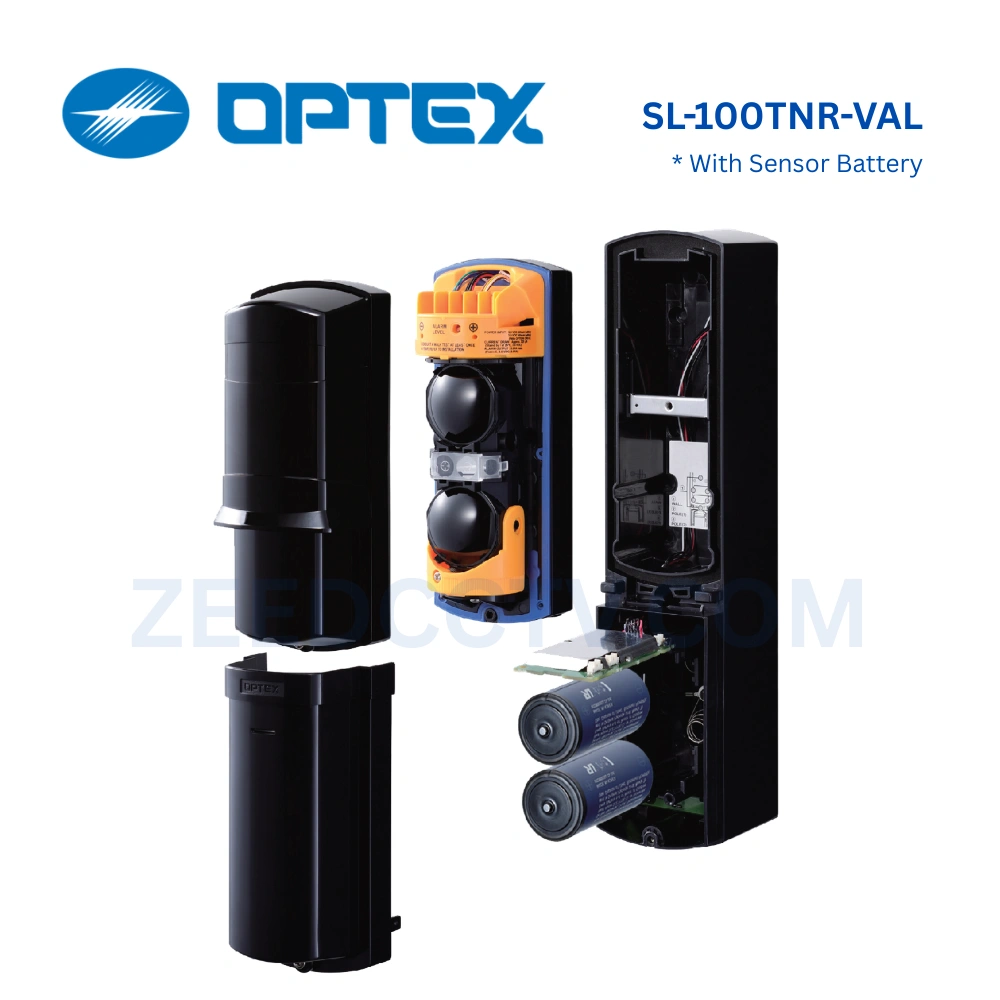

เซ็นเซอร์กันขโมย SL-100TNR VAL SET เครื่องตรวจจับลำแสงอินฟราเรด เป็นเซ็นเซอร์กันขโมยแบบลำแสงอินฟราเรด ระยะตรวจจับ 30 เมตร เหมาะสำหรับพื้นที่ขนาดเล็กหรือแนวรั้วระยะสั้น ภายในชุดรวมแบตเตอรี่ Vitzro SB-D02HP จำนวน 2 ก้อน เพียงพอสำหรับการเริ่มต้นใช้งาน เป็นตัวเลือกที่เหมาะสำหรับผู้ใช้งานที่ต้องการควบคุมงบประมาณ แต่ยังคงประสิทธิภาพการตรวจจับที่เชื่อถือได้
SL-100TNR เป็นโซลูชันที่คุ้มค่าและยืดหยุ่น สำหรับการป้องกันแนวพื้นที่รอบนอกในระยะไม่เกิน 30 เมตร เหมาะอย่างยิ่งสำหรับพื้นที่ที่ไม่สะดวกในการเดินสายสัญญาณ โดยทั้งตัวส่งและตัวรับสามารถใช้พลังงานจากแบตเตอรี่ได้
และฝั่งตัวรับยังสามารถต่อไฟแบบเดินสายได้อีกด้วย
- เซ็นเซอร์ตรวจจับแบบลำแสงอินฟราเรดคู่ (Twin Beam)
- รุ่น SL-100TNR ระยะตรวจจับสูงสุด 30 เมตร
- เซ็นเซอร์ใช้พลังงานจากแบตเตอรี่ลิเธียม
- รองรับแบตเตอรี่ลิเธียมขนาด D หรือแบตเตอรี่ CR123A (อุปกรณ์เสริม CRH-5)
- ปรับแนวลำแสงได้ง่ายด้วย Sniper ViewFinder กำลังขยาย 2 เท่า
- ไม่จำเป็นต้องติดตั้งตัวส่งสัญญาณไร้สายในฝั่งตัวส่งลำแสง
- ส่งสัญญาณแจ้งเตือนแบตเตอรี่อ่อนจากตัวส่งไปยังตัวรับผ่านเทคโนโลยี IR
- สามารถเชื่อมต่อสายไฟและสายสัญญาณเตือนได้ทั้งฝั่งตัวส่งและตัวรับ หรือเลือกต่อเพียงด้านเดียว (อุปกรณ์เสริม PCU-5)
- อายุการใช้งานแบตเตอรี่ยาวนาน
- มีฟังก์ชันประหยัดพลังงาน
- ฟังก์ชันเอาต์พุตสัญญาณแบบเป็นช่วง
- ดีไซน์ตัวเครื่องบาง กระทัดรัด
- สีภายในตัวเครื่องช่วยให้ตั้งแนวลำแสงได้ง่าย
- มีระบบ Tamper ตรวจจับการเปิดฝาครอบ
- มีไฟ LED แสดงสถานะ ช่วยในการตั้งแนวลำแสง
- โครงสร้างกันน้ำกันฝุ่นระดับ IP65 เหมาะสำหรับใช้งานภายนอก
Model | SL-100TNR |
| Maximum detection range | 30m (100ft.) |
| Maximum arrival ditance | 265m (870ft.) |
| Detection method | Twin infrared beam interruption detection |
| Interruption period | Selectable from 50/100/250/500 ms (4 selections) |
| Power source | 3.6 to 3.9VDC D size lithium batteries Each Transmitter and Receiver: 2 ubits (Recommended SB-D02HP manufactured by VITZROCELL) 3.0 VDC CR123A lithium batteries Each Transmitter and Receiver: 8 units (With optional battery holder CRH-5: 2 units) |
| Current draw (stand by/at 25 ํC) 3.6 to 3.9 VDC size Lithium battery | Total: Approx. 500 𝜇A Transmitter : Approx. 200 𝜇A Receiver : Approx. 300 𝜇A |
| Current draw (stand by/at 25 ํC) 3.0 VDC CR123A | Total: Approx. 600 𝜇A Transmitter : Approx. 200 𝜇A Receiver : Approx. 400 𝜇A |
| *Battery life : D size Lithium battery (Transmitter) | Approx. 6 years |
| *Battery life : D size Lithium battery (Receiver) | Approx. 5 years |
| *Battery life : CR123A (Transmitter) | Approx. 1.5 years |
| *Battery life : CR123A (Receiver) | Approx. 1 years |
| Alarm output | Form C-Solid State Switch : 3.6 VDC, 0.01A |
| Alarm period | 2 s (± 1) |
| Low battery output | N.C. (Solid State Switch): 3.9 VDC, 0.01 A |
| Cover tamper output (Receiver) | N.C. (Solid State Switch): 3.9 VDC, 0.01 A Opens when the battery cover removed |
| Indicator LED : Alarm/Level indicator (Receiver) | NO : Beam not received Blinking : Beam not received sufficiently OFF : Beam received |
| Indicator LED : Power/Low battery indicator (Transmitter and Receiver) | NO : Power ON Blinking : Voltage reduction OFF : Power OFF |
| Operation temperature | -20 ํC to +60 ํC (-4 ํF to + 140 ํF) |
| Operating ambient humidity | 95 % max. |
| Alignment angle | ± 90 ํ Horizontal, ± 5 ํ Vertical |
| Dimension | H × W × D mm (inch): 295 (11.6) × 69 (2.7) × 117 (4.6) |
| Weight | 1200g (42.4 oz) (Total weight of transmitter + receiver, excluding accessories) |
| International protection | IP65 |
