เครื่องบันทึก Dahua NVR 4CH 4PoE จาก Dahua Technology เป็นโซลูชันสำหรับระบบกล้อง IP ขนาดเล็ก รองรับการเชื่อมต่อกล้องได้สูงสุด 4 ตัว

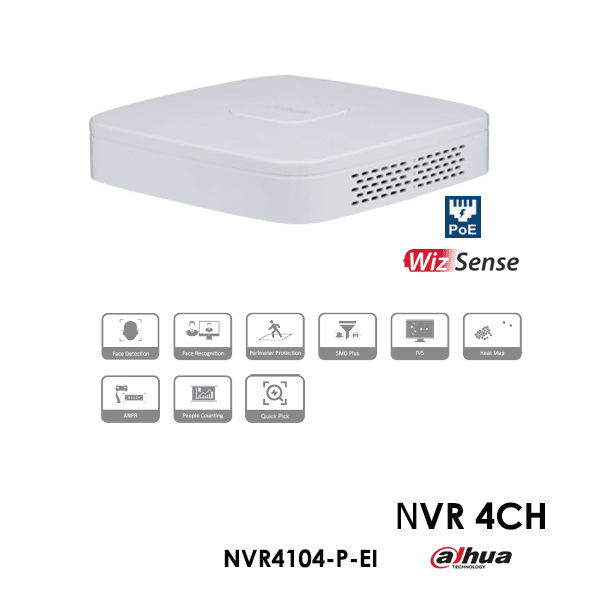

4CH Smart 1U 4PoE 1HDD WizSense Network Video Recorder
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 80 Mbps
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive
decoding - AI by NVR: 1-channel face detection and recognition; 2-channel
perimeter protection; up to 10 face databases and 20,000 face
images; 4-channel SMD Plus - AI by Camera: Face detection and recognition, perimeter
protection; SMD Plus; people counting; stereo analysis; heat map - Connected to the third-party network cameras
- Security baseline 2.3
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera | All channels (8 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance by Recorder | 1 channel (up to 12 face images/s each channel) |
| Face Detection Performance by Camera | All channels (8 targets/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images, total 2.5GB with detailed attributes |
| Face Recognition by Recorder | 4-channel FD+FR (image), 1-channel video stream |
| Face Recognition by Camera | All channels (8 targets/s) |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: filtering human & vehicle, reduce false alarms |
| SMD Plus by Camera | All channels (16 targets/s) |
| Audio and Video | |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps incoming / recording / outgoing |
| Resolution | 16MP to CIF |
| Network | |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4/IPv6, etc. |
| Mobile | iOS, Android |
| General | |
| Power Supply | 53 VDC |
| Power Consumption | <10W (no HDD), PoE 36W |
| Weight | 0.50 kg |
