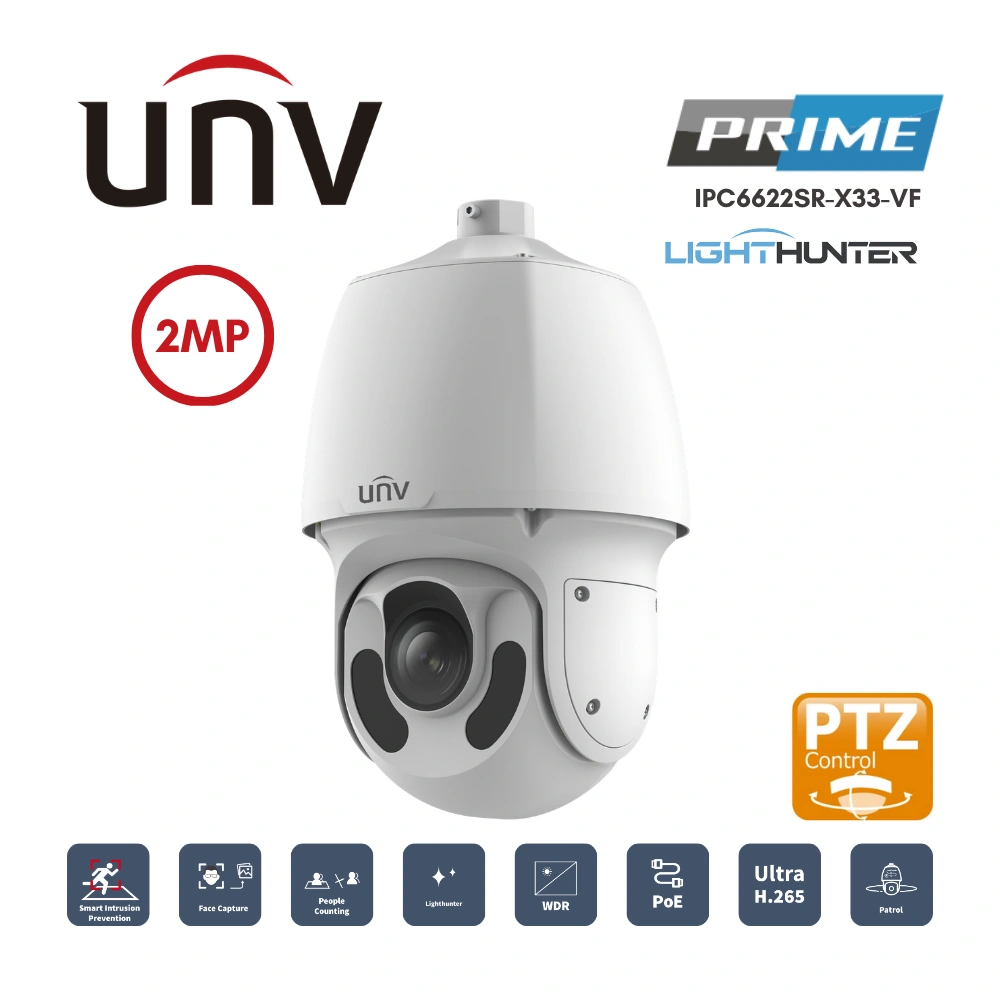

กล้องวงจรปิด IP UNV PTZ 2MP รุ่น IPC6622SR-X33-VF แบบสปีดโดม (PTZ) ซูมออปติคอลไกล 33 เท่า ให้ภาพคมชัดระดับ Full HD ด้วยเซ็นเซอร์ CMOS ขนาด 1/2.8″ รองรับความละเอียด 1920×1080 ที่ 60fps ให้ภาพลื่นไหลคมชัด บีบอัดวิดีโอ Ultra 265, H.265, H.264 และ MJPEG มาพร้อมระบบ Smart Intrusion Prevention ตรวจจับเส้นข้าม การบุกรุก การเข้า–ออกพื้นที่ พร้อมระบบคัดกรองการแจ้งเตือนผิดพลาดอัจฉริยะ รองรับการตรวจจับใบหน้าและการเลือกภาพสแนปช็อตที่ดีที่สุด สามารถนับจำนวนคน วิเคราะห์การไหลของผู้คน และประเมินความหนาแน่นฝูงชน เหมาะกับงานสถิติหลากหลายรูปแบบ เทคโนโลยี LightHunter ให้ภาพคุณภาพสูงในสภาพแสงน้อย พร้อมอินฟราเรดอัจฉริยะระยะไกลสูงสุด 150 เมตร รองรับการจ่ายไฟ AC/DC และ PoE มีพอร์ต Alarm I/O และ Audio I/O สำหรับงานระบบ โครงสร้างทนทานมาตรฐานกันน้ำกันฝุ่น IP66 เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยในพื้นที่กว้างทั้งภายในและภายนอกอาคาร
2MP 33X LightHunter IR Network PTZ Camera
High quality image with 1080P, 1/2.8″ CMOS sensor
1920 × 1080 @ 60 fps in the main stream
Ultra 265, H.265, H.264, MJPEG
33X optical zoom
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
Automatic selection of best snapshots, supports face detection masked area
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
Smart IR, up to 150 m (492.1 ft) IR distance
AC 24 V±25%, DC 24 V±25%, PoE power supply
Alarm I/O: 2/1, audio I/O: 1/1
IP66 ingress protection
| IPC6622SR-X33-VF | ||||||||
Camera | ||||||||
| Sensor | 1/2.8″ CMOS | |||||||
| Min. Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
Lens | ||||||||
| Focal Length | 4.5 to 148.5 mm | |||||||
| Optical Zoom | 33X | |||||||
| Digital Zoom | 16X | |||||||
| Iris | F1.5 to F4.0 | |||||||
| Field of View (H) | 56.2° to 2.6° | |||||||
| Field of View (V) | 33.5° to 1.4° | |||||||
| Field of View (D) | 69.1° to 3.1° | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 4.5 to 148.5 mm | |||||||
| DORI Distance (Detect) | 72.9 m to 2187.9 m (239.2 ft. to 7178.2 ft) | |||||||
| DORI Distance (Observe) | 29.2 m to 875.2 m (95.7 ft. to 2871.3 ft) | |||||||
| DORI Distance (Recognize) | 14.6 m to 437.6 m (47.9 ft. to 1435.7 ft) | |||||||
| DORI Distance (Identify) | 7.3 m to 218.8 m (24.0 ft. to 717.8 ft) | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 60 fps Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
| OSD | Up to 10 OSDs | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Intelligent | ||||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
PTZ | ||||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Number of Presets | 1024 | |||||||
| Preset Image Freeze | Support | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Pan Range | 360° (endless) | |||||||
| Pan Speed | 0.1°/s to 200°/s | |||||||
| Tilt Range | -15° to 90° (auto reverse) | |||||||
| Tilt Speed | 0.1°/s to 200°/s | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital defog | |||||||
| Heatwave Reduction | Support | |||||||
Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| WIFI | N/A | |||||||
| Alarm I/O | 2/1 | |||||||
| Serial Port | 1 * RS485 | |||||||
| Built-in Mic | N/A | |||||||
| Built-in Speaker | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | 1 BNC (for debugging) | |||||||
Illuminator | ||||||||
| Illumination Distance (IR) | 150 m (492.1 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
Certification | ||||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
| Power | AC 24 V±25%, DC 24 V±25%, PoE (PSE Required) | |||||||
| Power Consumption | Max. 53.72 W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | Ø227 mm × 384.8 mm (Ø 8.9″ × 15.1″) (Ø × H) | |||||||
| Weight | 5.39 kg (11.88 lb) | |||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Heater | Support | |||||||
