กล้องวงจรปิด IP UNV PTZ 2MP รุ่น IPC6622SR-X25-VF แบบสปีดโดม (PTZ) ซูมออปติคอลไกล 25 เท่า ให้ภาพคมชัดระดับ Full HD ด้วยเซ็นเซอร์ CMOS ขนาด 1/2.8″ รองรับความละเอียด 1920×1080 ที่ 60fps บีบอัดวิดีโอ Ultra 265, H.265, H.264 และ MJPEG มาพร้อมระบบ Smart Intrusion Prevention ตรวจจับเส้นข้าม การบุกรุก การเข้า–ออกพื้นที่ พร้อมระบบคัดกรองการแจ้งเตือนผิดพลาดอัจฉริยะ และฟังก์ชันเลือกภาพสแนปช็อตที่ดีที่สุด รองรับการตรวจจับใบหน้าและพื้นที่ปกปิดใบหน้า เสริมด้วยระบบนับจำนวนคนและวิเคราะห์ความหนาแน่นฝูงชน เทคโนโลยี LightHunter ให้ภาพคุณภาพสูงในสภาพแสงน้อย อินฟราเรดอัจฉริยะไกลสูงสุด 150 เมตร รองรับการจ่ายไฟ AC 24V, DC 24V และ PoE+ (IEEE 802.3at) มีพอร์ต Alarm I/O และ Audio I/O สำหรับงานระบบ โครงสร้างทนทานมาตรฐานกันน้ำกันฝุ่น IP66 เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยในพื้นที่กว้างทั้งภายในและภายนอกอาคาร

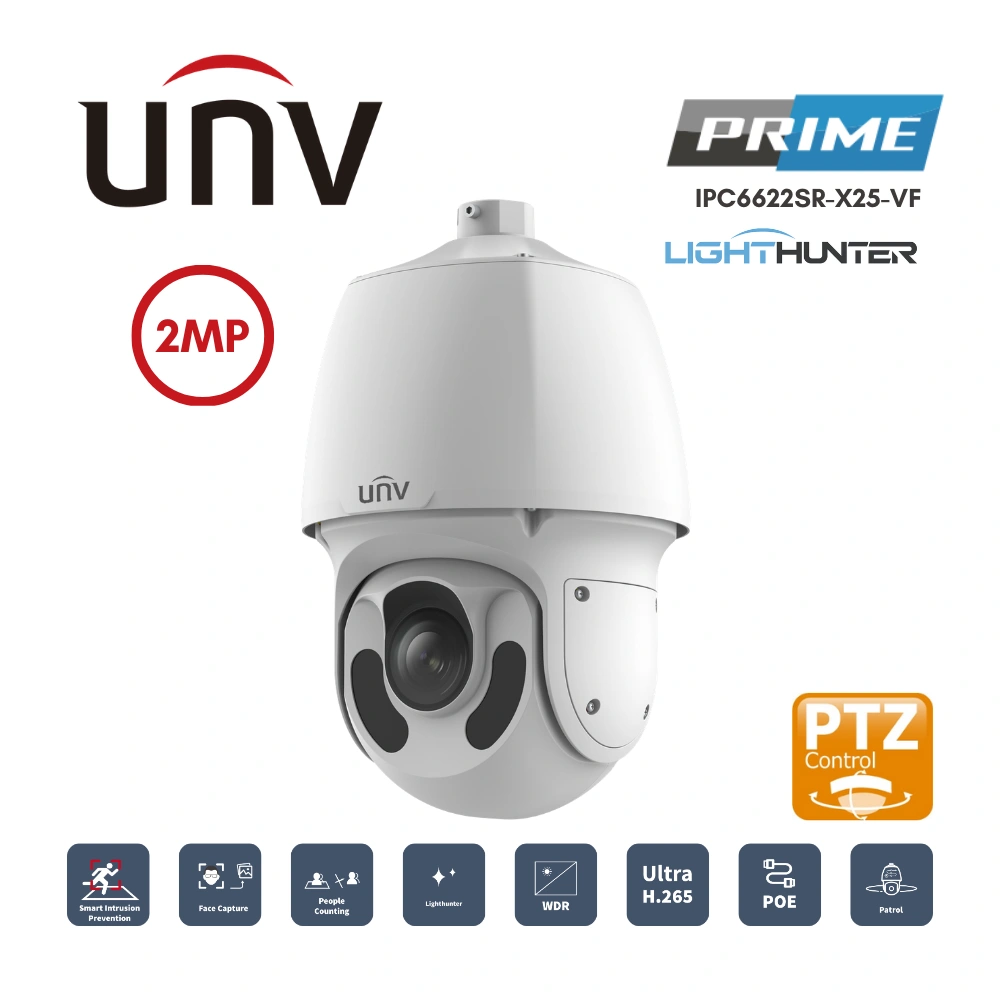

2MP 25X LightHunter IR Network PTZ Camera
- High quality image with 1080P, 1/2.8″ CMOS sensor
- 1920 × 1080 @ 60 fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom
- Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
- Automatic selection of best snapshots, supports face detection masked area
- People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 150 m (492.1 ft) IR distance
- AC 24 V±25%, DC 24 V±25%, PoE+ (IEEE 802.3at) power supply
- Alarm I/O: 2/1, Audio I/O: 1/1
- IP66 ingress protection
| IPC6622SR-X25-VF | ||||||||
Camera | ||||||||
| Sensor | 1/2.8″ CMOS | |||||||
| Min. Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
Lens | ||||||||
| Focal Length | 5 to 125 mm | |||||||
| Optical Zoom | 25X | |||||||
| Digital Zoom | 16X | |||||||
| Iris | F1.5 to F4.0 | |||||||
| Field of View (H) | 54.37° to 2.68° | |||||||
| Field of View (V) | 32.23° to 1.51° | |||||||
| Field of View (D) | 66.88° to 3.16° | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 5 to 125 mm | |||||||
| DORI Distance (Detect) | 85.3 m to 1706.9 m (280.0 ft. to 5600.1 ft) | |||||||
| DORI Distance (Observe) | 34.1 m to 382.8 m (112.0 ft. to 2240.0 ft) | |||||||
| DORI Distance (Recognize) | 17.1 m to 341.4 m (56.1 ft. to 1120.1 ft) | |||||||
| DORI Distance (Identify) | 8.5 m to 170.7 m (28.0 ft. to 560.0 ft) | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 60 fps Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
| OSD | Up to 10 OSDs | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Intelligent | ||||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
PTZ | ||||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Number of Presets | 1024 | |||||||
| Preset Image Freeze | Support | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Home Position | Support | |||||||
| Pan Range | 360° (endless) | |||||||
| Pan Speed | 0.1°/s to 200°/s | |||||||
| Tilt Range | -15° to 90° (auto reverse) | |||||||
| Tilt Speed | 0.1°/s to 200°/s | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital defog | |||||||
| Heatwave Reduction | Support | |||||||
Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| WIFI | N/A | |||||||
| Alarm I/O | 2/1 | |||||||
| Serial Port | 1 * RS485 | |||||||
| Built-in Mic | N/A | |||||||
| Built-in Speaker | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | 1 BNC (for debugging) | |||||||
Illuminator | ||||||||
| Illumination Distance (IR) | 150 m (492.1 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
Certification | ||||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
| Power | AC 24 V±25%, DC 24 V±25%, PoE+ (IEEE 802.3 at) | |||||||
| Power Consumption | Max. 25 W | |||||||
| Power Interface | Wires with cold-pressed terminal | |||||||
| Dimensions | Ø227 mm × 384.8 mm (Ø 8.9″ × 15.1″) (Ø × H) | |||||||
| Weight | 5.28 kg (11.64 lb) | |||||||
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Heater | Support | |||||||
