กล้องวงจรปิด IP UNV PTZ 2MP รุ่น IPC6612SR-X33-VG แบบสปีดโดม (PTZ) ซูมออปติคอลไกล 33 เท่า ให้ภาพคมชัดระดับ Full HD ด้วยเซ็นเซอร์ CMOS ขนาด 1/2.8″ รองรับความละเอียด 1920×1080 ที่ 30fps บีบอัดวิดีโอ Ultra 265, H.265, H.264 และ MJPEG มาพร้อมระบบ Smart Intrusion Prevention ตรวจจับเส้นข้าม การบุกรุก การเข้า–ออกพื้นที่ พร้อมระบบคัดกรองการแจ้งเตือนผิดพลาดอัจฉริยะ และฟังก์ชันเลือกภาพสแนปช็อตที่ดีที่สุด เทคโนโลยี LightHunter ให้ภาพคุณภาพสูงในสภาพแสงน้อย เสริมด้วย WDR กว้างสูงสุด 120dB ให้ภาพชัดในสภาพแสงต่างระดับ อินฟราเรดอัจฉริยะไกลสูงสุด 150 เมตร รองรับการจ่ายไฟ DC 12V และ PoE+ (IEEE 802.3at) มีพอร์ต Alarm I/O และ Audio I/O สำหรับงานระบบ บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างทนทานมาตรฐานกันน้ำกันฝุ่น IP66 เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยในพื้นที่กว้างทั้งภายในและภายนอกอาคาร

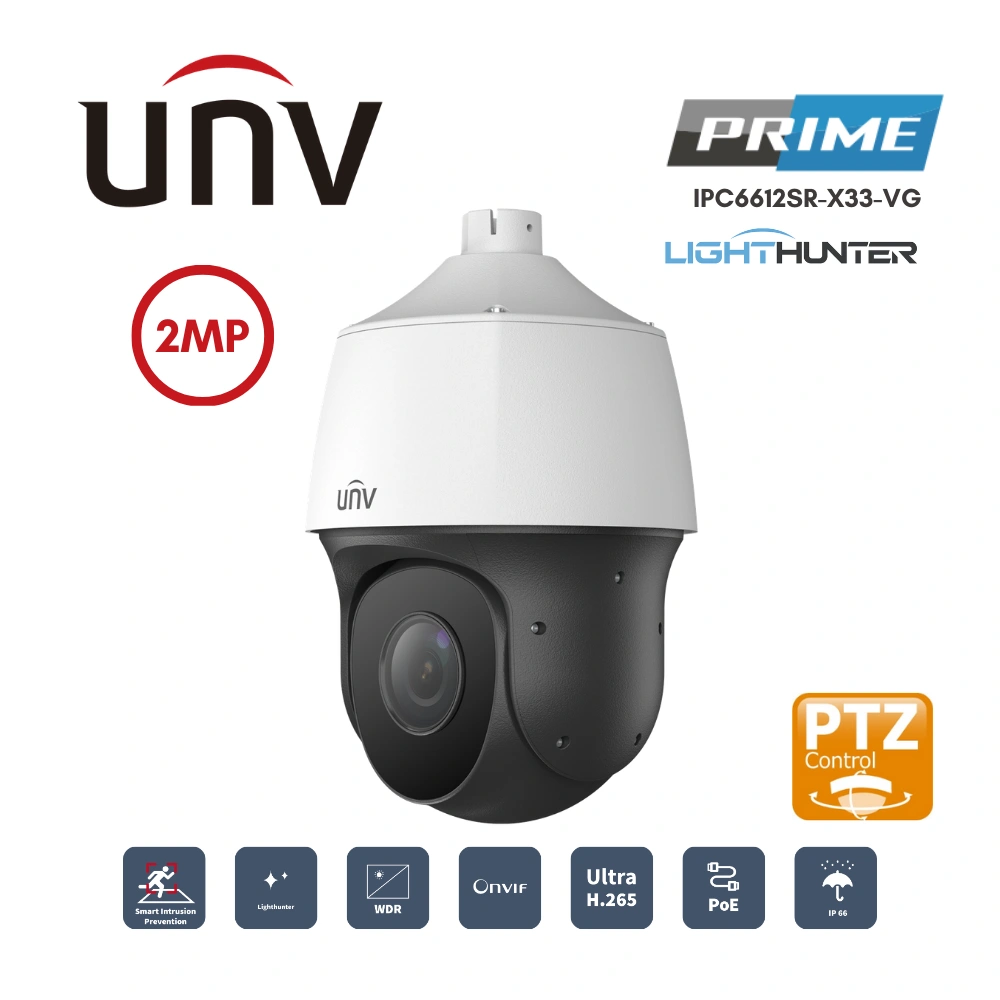

2MP 33x LightHunter IR Network PTZ Camera
- High quality image with 1080P, 1/2.8″ CMOS sensor
- 1920 × 1080 @ 30 fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 33X optical zoom allows for closer viewing of subjects
- Smart intrusion prevention with false alarm filtering, including cross line, intrusion, enter area, leave area detection
- Automatic selection of best snapshots
- LightHunter technology ensures ultra-high image quality in low illumination environments
- Up to 120 dB optical WDR (wide dynamic range)
- DC 12 V, PoE+ (IEEE 802.3at) power supply
- Alarm I/O: 2/1, Audio I/O: 1/1
- MicroSD, up to 512 GB
- Smart IR, up to 150 m (492.1 ft) IR distance
- IP66 ingress protection
| IPC6612SR-X33-VG | ||||||||
Camera | ||||||||
| Sensor | 1/2.8″ CMOS | |||||||
| Min. Illumination | Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| WDR | 120 dB | |||||||
| S/N | >52 dB | |||||||
Lens | ||||||||
| Focal Length | 4.5 to 148.5 mm | |||||||
| Optical Zoom | 33X | |||||||
| Iris | F1.5 to F4.0 | |||||||
| Field of View (H) | 56.23° to 2.57° | |||||||
| Field of View (V) | 33.46° to 1.44° | |||||||
| Field of View (D) | 69.16° to 3.03° | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 4.5 to 148.5 mm | |||||||
| DORI Distance (Detect) | 72.9 m to 2187.9 m (239.2 ft. to 7178.2 ft) | |||||||
| DORI Distance (Observe) | 29.2 m to 875.2 m (95.7 ft. to 2871.3 ft) | |||||||
| DORI Distance (Recognize) | 14.6 m to 437.6 m (4739 ft. to 1435.7 ft) | |||||||
| DORI Distance (Identify) | 7.3 m to 218.8 m (24.0 ft. to 717.8 ft) | |||||||
Video | ||||||||
| Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| OSD | Up to 8 OSDs | |||||||
Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital defog | |||||||
| Heatwave Reduction | Support | |||||||
Illuminator | ||||||||
| Light On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Illumination Distance (IR) | 150 m (492.1 ft) | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
PTZ | ||||||||
| Number of Presets | 1024 | |||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
| Patrol Stay Time | 15 s to 1800 s | |||||||
| Preset Image Freeze | Support | |||||||
| Home Position | Support | |||||||
| Pan Range | 360° (endless) | |||||||
| Tilt Range | -15° to 90° (auto reverse) | |||||||
| Pan Speed | 2°/s to 75°/s | |||||||
| Tilt Speed | 2°/s to 75°/s | |||||||
Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 2/1 | |||||||
| Serial Port | 1 * RS485 | |||||||
| Built-in Mic | N/A | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
Certification | ||||||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) | |||||||
General | ||||||||
| Power | DC 12 V±10%, PoE+ (IEEE 802.3at) | |||||||
| Power Consumption | Max. 25 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø220 mm × 370 mm (Ø8.7″ × 14.6″) (Ø × H) | |||||||
| Weight | 3.4 kg (7.48 lb) | |||||||
| Working Environment | -40℃~65℃(-40°F ~ 149°F)，Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Reset Button | Support | |||||||
| Heater | Support | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
Configurable | ||||||||
| P/N | Support | |||||||
