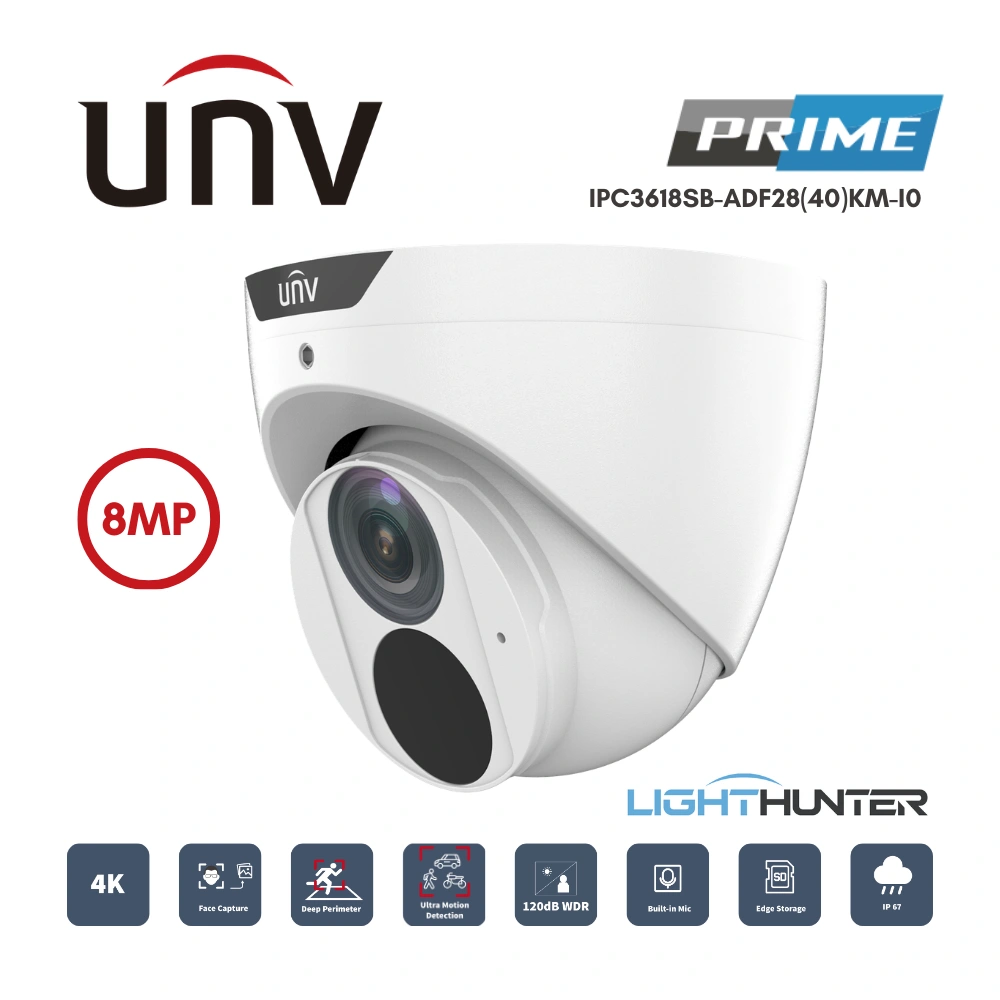

กล้องวงจรปิด IP UNV Light 8MP รุ่น IPC3618SB-ADF28(40)KM-I0

กล้องวงจรปิด IP UNV LightHunter 8MP รุ่น IPC3618SB-ADF28(40)KM-I0

8MP LightHunter Fixed IR Turret Network Camera

High quality image with 8 MP, 1/2.7″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

Categories: UNV, UNV IP Cameras, UNV Prime Series Tags: IP, กล้องวงจรปิด

Description
Additional information

กล้องวงจรปิด IP UNV Light 8MP รุ่น IPC3618SB-ADF28(40)KM-I0 แบบ Turret ให้ภาพคมชัดสูงระดับ 8MP (4K) ด้วยเซ็นเซอร์ CMOS รองรับเทคโนโลยี WDR 120dB ช่วยให้ภาพชัดแม้สภาพแสงจ้า มาพร้อมระบบ Intelligent Perimeter Protection ตรวจจับเส้นข้าม พื้นที่บุกรุก เข้า–ออกพื้นที่ และคัดแยกเป้าหมายมนุษย์/ยานพาหนะ ลดการแจ้งเตือนผิดพลาด รองรับการนับจำนวนคนและวิเคราะห์ความหนาแน่นฝูงชน รองรับโหมด Corridor 9:16 มีไมโครโฟนในตัว อินฟราเรดอัจฉริยะไกล 30 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างทนทานมาตรฐานกันน้ำกันฝุ่น IP67 เหมาะสำหรับงานติดตั้งเพื่อรักษาความปลอดภัยขั้นสูงทั้งภายในและภายนอกอาคาร

8MP LightHunter Fixed IR Turret Network Camera

High quality image with 8 MP, 1/2.7″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

	IPC3618SB-ADF28KM-I0	IPC3618SB-ADF40KM-I0
Camera
Sensor	1/2.7″ CMOS
Min. Illumination	Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	>52 dB
WDR	120 dB
Lens
Focal Length	2.8 mm	4.0 mm
Iris	F1.6
Field of View (H)	112.4°	86.5°
Field of View (V)	60.1°	44.1°
Field of View (D)	146.1°	112.5°
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm	4 mm
DORI Distance (Detect)	84.0 m (275.6 ft.)	120.0 m (393.7 ft.)
DORI Distance (Observe)	33.6 m (110.2 ft.)	48.0 m (157.5 ft.)
DORI Distance (Recognize)	16.8 m (55.1 ft.)	24.0 m (78.7 ft.)
DORI Distance (Identify)	8.4 m (27.6 ft.)	12.0 m (39.4 ft.)
Illuminator
Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840 × 2160), max. ,20 fps; 5 MP (3072 × 1728), max. ,30 fps; 4 MP (2560 × 1440), max. ,30 fps; 1080P (1920 × 1080), max. ,30 fps; Sub Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max., 30 fps; CIF (352 × 288), max. ,30 fps; Third Stream: D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	Support
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density detection
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Built-in Mic	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
Protection	IP67 (IEC 60529)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 6.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 95 mm (Ø4.4″ × 3.7″) (Ø × H)
Weight	0.41 kg (0.90 lb)
Material	Metal
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
