กล้องวงจรปิด IP UNV Dual-light 2MP รุ่น IPC3612LB-AF28K-DL2 แบบ Turret ให้ภาพคมชัดระดับ Full HD ด้วยเซ็นเซอร์ CMOS มาพร้อมระบบไฟ Smart Dual-light ทั้งอินฟราเรดและไฟส่องสว่างระยะไกล 30 เมตร ช่วยให้ได้ภาพชัดทั้งกลางวันและกลางคืน รองรับระบบตรวจจับความเคลื่อนไหวขั้นสูง มีไมโครโฟนในตัว บันทึกผ่าน MicroSD ได้สูงสุด 512GB ทนทานมาตรฐานกันน้ำกันฝุ่น IP67 รองรับ PoE ติดตั้งง่าย ปรับมุมมองได้ 3 แกน เหมาะสำหรับงานรักษาความปลอดภัยทุกประเภท

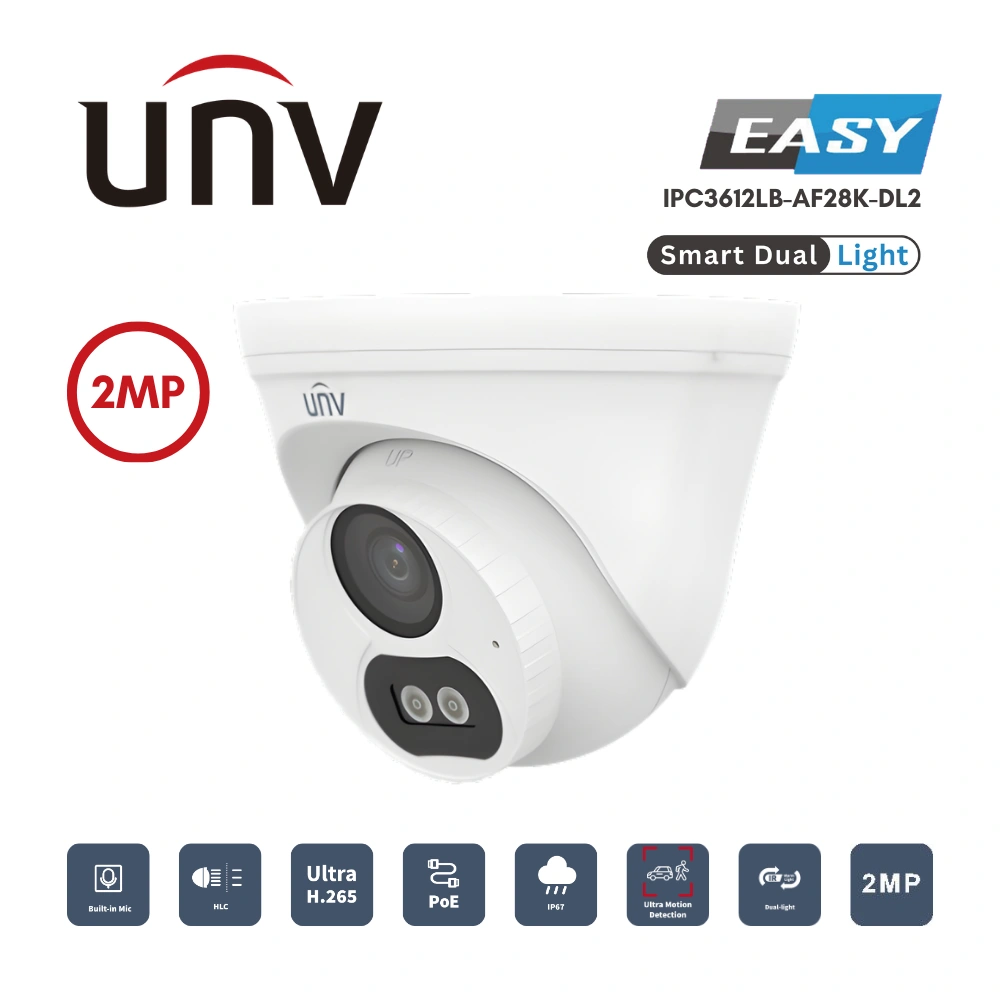

2MP Fixed Dual-light Turret Network Camera
High quality image with 1080P, 1/3.0″ CMOS sensor
1080P (1920 × 1080)@25/30 fps; 720P (1280 × 720)@25/30 fps
Smart dual-light ensures high quality image
Ultra 265, H.265, H.264
Supports ultra motion detection
Built-in mic
Up to 30 m (98.4 ft) IR and warm light distance
MicroSD, up to 512 GB
IP67 protection
3-axis
Supports PoE power supply
| IPC3612LB-AF28K-DL2 | ||||||||
Camera | ||||||||
| Max Resolution | 2 MP | |||||||
| Sensor | 1/3.0″ CMOS | |||||||
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | |||||||
| S/N | >52 dB | |||||||
| WDR | DWDR | |||||||
Lens | ||||||||
| Focal Length | 2.8 mm | |||||||
| Iris Type | Fixed | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 92.6° | |||||||
| Field of View (V) | 51.1° | |||||||
| Field of View (D) | 105.8° | |||||||
| Lens Type | Fixed | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | |||||||
| DORI Distance (Detect) | 46.7 m (153.2 ft) | |||||||
| DORI Distance (Observe) | 18.7 m (61.4 ft) | |||||||
| DORI Distance (Recognize) | 9.3 m (30.5 ft) | |||||||
| DORI Distance (Identify) | 4.7 m (15.4 ft) | |||||||
Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
| Wavelength | 850 nm | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264 | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps Sub Stream: 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps | |||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual streams | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
| Built-in Mic | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
| Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 4.0 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø117.8 mm × 100.3 mm (Ø4.6″ × 3.9″) (Ø × H) | |||||||
| Weight | 0.26 kg (0.57 lb) | |||||||
| Material | Graphene + Plastic | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese | |||||||
