กล้องวงจรปิด IP UNV 4MP รุ่น IPC3524LE-ADF28(40)K-WP แบบ Dome ให้ภาพคมชัดระดับ 4MP ด้วยเซ็นเซอร์ CMOS ขนาด 1/1.8″ และเลนส์รูรับแสงกว้าง F1.0 รองรับหลายความละเอียดสูงสุด 2688×1520 เฟรมเรตสูงสุด 30fps บีบอัดวิดีโอ Ultra 265, H.265, H.264 และ MJPEG มาพร้อมระบบ Intelligent Perimeter Protection ตรวจจับเส้นข้ามและการบุกรุกพื้นที่ พร้อมเทคโนโลยีคัดแยกเป้าหมายอัจฉริยะ ลดการแจ้งเตือนผิดพลาดจากสิ่งรบกวน และโฟกัสเฉพาะมนุษย์และยานพาหนะ เทคโนโลยี ColorHunter ผสาน Wise-ISP ให้ภาพสีคมชัดตลอด 24 ชั่วโมงแม้ในสภาพแสงน้อย พร้อม WDR 120dB ให้ภาพชัดในฉากย้อนแสง รองรับโหมด Corridor 9:16 เหมาะกับพื้นที่ทางเดิน มีไมโครโฟนในตัว ไฟส่องสว่างแบบ Warm Light ระยะไกล 30 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างแข็งแรงมาตรฐานกันน้ำกันฝุ่น IP67 และป้องกันการทุบทำลาย IK10 รองรับการจ่ายไฟผ่าน PoE และปรับมุมกล้องได้แบบ 3 แกน เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยทั้งภายในและภายนอกอาคาร

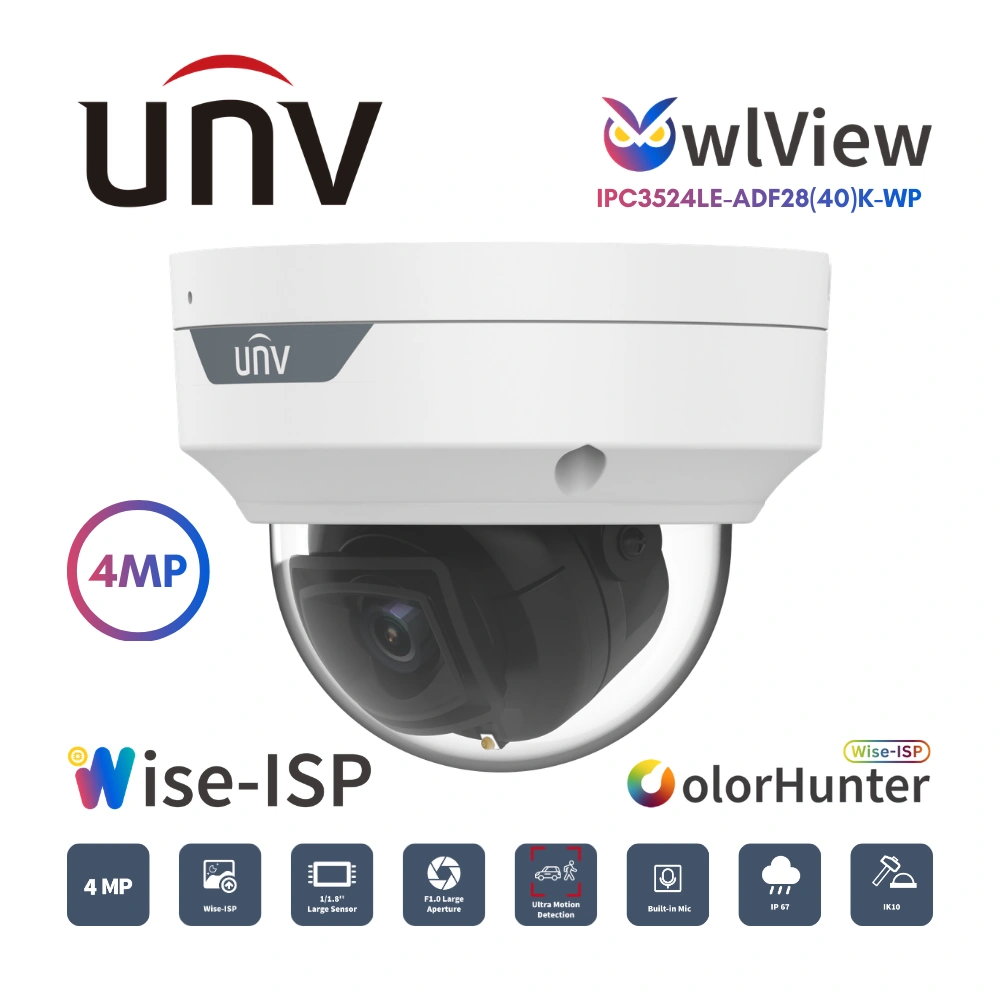

4MP ColorHunter Wise-ISP Fixed Dome Network Camera
High quality image with 4 MP, 1/1.8″ CMOS sensor and F1.0 large aperture lens
4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion
Based on target classification, the intelligent intrusion prevention system significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans and motor vehicles
ColorHunter with Wise-ISP technology ensures 24-hour full-color images
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft) warm light distance
MicroSD, up to 512 GB
IP67 protection
IK10 protection
Supports PoE power supply
3-axis
| IPC3524LE-ADF28K-WP | IPC3524LE-ADF40K-WP | |||||||
Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/1.8″ CMOS | |||||||
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | |||||||
| S/N | > 52 dB | |||||||
| WDR | 120 dB | |||||||
Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 124.3° | 96.1° | ||||||
| Field of View (V) | 61.4° | 52.2° | ||||||
| Field of View (D) | 135° | 113.5° | ||||||
| Lens Type | Fixed | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | 4 mm | ||||||
| DORI Distance (Detect) | 43.4 m (142.4 ft.) | 62.1 m (203.7 ft.) | ||||||
| DORI Distance (Observe) | 17.4 m (57.1 ft.) | 24.8 m (81.4 ft.) | ||||||
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) | 12.4 m (40.7 ft.) | ||||||
| DORI Distance (Identify) | 4.3 m (14.1 ft.) | 6.2 m (20.3 ft.) | ||||||
Illuminator | ||||||||
| Supplemental Light | Warm light | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
| Light On/Off Control | Auto/Manual | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 4 MP (2688 × 1520), max. ,25 fps; 4 MP (2560 × 1440), max. ,25 fps; 3 MP (2304 × 1296), max. ,30 fps; 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps; Sub Stream: 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps | |||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual streams | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart Illumination | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
Intelligent | ||||||||
| Smart Intrusion Prevention (Lite) | Intrusion, crossline detection (both detection are based on human body and vehicle detection) | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
| Built-in Mic | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 4.0 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø128 mm × 100 mm (Ø5.0″ × 3.9″) (Ø × H) | |||||||
| Weight | 0.53 kg (1.16 lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | |||||||
