กล้องวงจรปิด IP UNV 2MP รุ่น IPC3522LE-ADF28(40)K-WP แบบ Dome ให้ภาพคมชัดระดับ 1080P ด้วยเซ็นเซอร์ CMOS และเลนส์รูรับแสงกว้าง F1.0 มาพร้อมเทคโนโลยี ColorHunter ผสาน Wise-ISP ให้ภาพสีตลอด 24 ชั่วโมงแม้ในที่แสงน้อย ระบบป้องกันอัจฉริยะตรวจจับการบุกรุกและคัดแยกเป้าหมายได้แม่นยำ ลดการแจ้งเตือนผิดพลาด เทคโนโลยี WDR 120dB ให้ภาพชัดในสภาวะแสงจ้า รองรับโหมด Corridor 9:16 มีไมโครโฟนในตัว ไฟส่องสว่างแสงขาวไกล 30 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB มาตรฐานกันน้ำกันฝุ่น IP67 และป้องกันการทุบทำลาย IK10 รองรับการจ่ายไฟผ่าน PoE ปรับมุมกล้องได้แบบ 3 แกน เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยทั้งภายในและภายนอกอาคาร

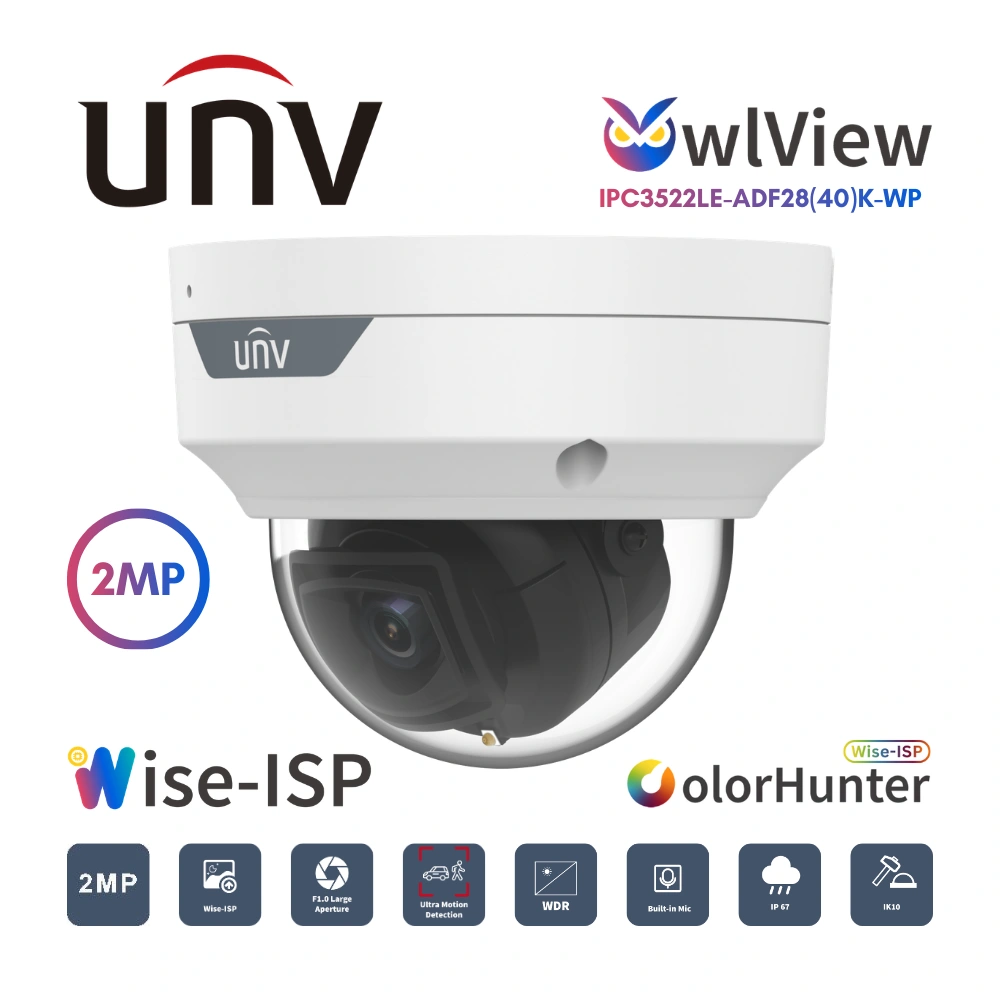

2MP ColorHunter Wise-ISP Dome Network Camera
High quality image with 1080P, 1/2.9″ CMOS sensor and F1.0 large aperture lens
1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion
Based on target classification, the intelligent intrusion prevention system significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans and motor vehicles
ColorHunter with Wise-ISP technology ensures 24-hour full-color images
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft) warm light distance
MicroSD, up to 512 GB
IP67 protection
IK10 protection
Supports PoE power supply
3-axis
| IPC3522LE-ADF28K-WP | IPC3522LE-ADF40K-WP | |||||||
Camera | ||||||||
| Max Resolution | 2 MP | |||||||
| Sensor | 1/2.7″ CMOS | |||||||
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | |||||||
| S/N | > 52 dB | |||||||
| WDR | 120 dB | |||||||
Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 99.0° | 85.4° | ||||||
| Field of View (V) | 53.0° | 47.5° | ||||||
| Field of View (D) | 118.0° | 98.5° | ||||||
| Lens Type | Fixed | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | 4 mm | ||||||
| DORI Distance (Detect) | 45.0 m (147.6 ft.) | 64.3 m (211.0 ft.) | ||||||
| DORI Distance (Observe) | 18.0 m (59.1 ft.) | 25.7 m (84.3 ft.) | ||||||
| DORI Distance (Recognize) | 9.0 m (29.5 ft.) | 12.9 m (42.3 ft.) | ||||||
| DORI Distance (Identify) | 4.5 m (14.8 ft.) | 6.4 m (21.0 ft.) | ||||||
Illuminator | ||||||||
| Supplemental Light | Warm light | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max., 30 fps; Sub Stream: 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps | |||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual streams | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Smart Illumination | Support | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
Intelligent | ||||||||
| Smart Intrusion Prevention (Lite) | Intrusion, crossline detection (both detection are based on human body and vehicle detection) | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
| Built-in Mic | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 3.0 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø128 mm × 100 mm (Ø5.0″ × 3.9″) (Ø × H) | |||||||
| Weight | 0.51 kg (1.12 lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | |||||||
