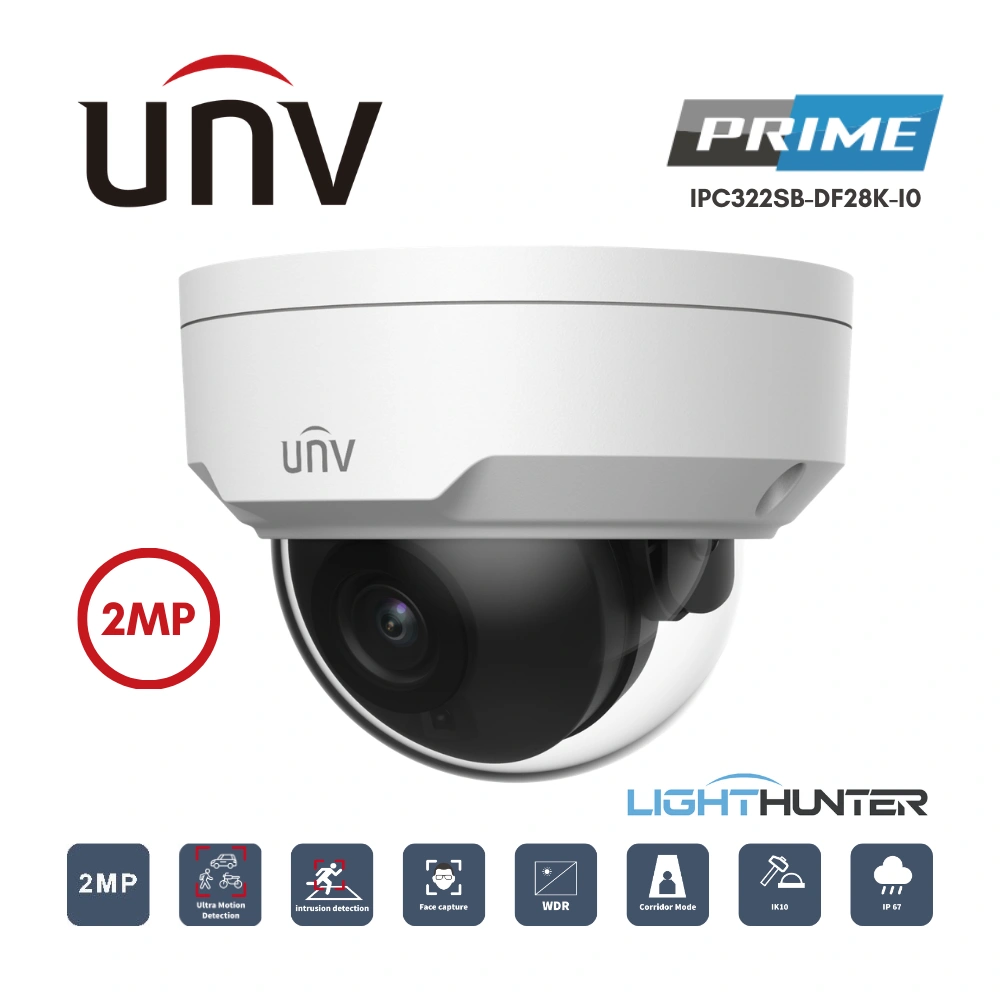

กล้องวงจรปิด IP UNV LightHunter 2MP รุ่น IPC322SB-DF28K-I0

2MP LightHunter Fixed IR Dome Network Camera

High quality image with 1080P, 1/2.8″ CMOS sensor
1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
LightHunter technology ensures ultra-high image quality in low illumination environment
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection
Supports PoE power supply

Categories: UNV, UNV IP Cameras, UNV Prime Series Tags: IP, กล้องวงจรปิด

Description
Additional information

กล้องวงจรปิด IP UNV LightHunter 2MP รุ่น IPC322SB-DF28K-I0 แบบโดม ให้ภาพคมชัดระดับ Full HD ด้วยเซ็นเซอร์ CMOS พร้อมเทคโนโลยี LightHunter ให้ภาพคุณภาพสูงในที่แสงน้อย และ WDR 120dB ให้ภาพชัดแม้สภาพแสงจ้า มาพร้อมระบบ Smart Intrusion Prevention ตรวจจับเส้นข้าม พื้นที่บุกรุก เข้า–ออกพื้นที่ และคัดแยกเป้าหมายมนุษย์/ยานพาหนะ ลดการแจ้งเตือนผิดพลาด รองรับโหมด Corridor 9:16 มีพอร์ต Alarm I/O และ Audio I/O สำหรับงานระบบ อินฟราเรดอัจฉริยะไกล 30 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างแข็งแรงมาตรฐานกันน้ำกันฝุ่น IP67 และกันกระแทกระดับ IK10 รองรับ PoE ติดตั้งง่าย เหมาะสำหรับงานรักษาความปลอดภัยขั้นสูง

2MP LightHunter Fixed IR Dome Network Camera

High quality image with 1080P, 1/2.8″ CMOS sensor
1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
LightHunter technology ensures ultra-high image quality in low illumination environment
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection
Supports PoE power supply

	IPC322SB-DF28K-I0	IPC322SB-DF40K-I0
Camera
Max Resolution	2 MP
Sensor	1/2.8″ CMOS
Min. Illumination	Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360°
S/N	>52 dB
WDR	120 dB
Lens
Focal Length	2.8 mm	4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	106.7°	87.5°
Field of View (V)	57.1°	46.3°
Field of View (D)	115.7°	92.4°
Lens Type	Fixed
DORI
DORI Distance (Lens)	2.8 mm	4 mm
DORI Distance (Detect)	43.4 m (142.4 ft.)	62.1 m (203.7 ft.)
DORI Distance (Observe)	17.4 m (57.1 ft.)	24.8 m (81.4 ft.)
DORI Distance (Recognize)	8.7 m (28.5 ft.)	12.4 m (40.7 ft.)
DORI Distance (Identify)	4.3 m (14.1 ft.)	6.2 m (20.3 ft.)
Illuminator
Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft)
IR On/Off Control	Auto/Manual
Wavelength	850 nm
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps; Sub Stream: 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; Third Stream: D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams
Smart IR	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (false alarm filtering & human/vehicle classification)
People Counting	Support people flow counting and crowd density detection
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Logs, RTSP/HTTP Digest Auth, TLS 1.2, ONVIF WSSE/Digest
Client	EZStation, APP
Web Browser	Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ Plug-in free: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 In (35 kΩ, 2 Vp-p) / 1 Out (600 Ω, 2 Vp-p)
Alarm I/O	1/1
Network	1 × RJ45 10/100 Base-TX Ethernet
Certification
Protection	IP67, IK10
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø108.7 × 81.1 mm
Weight	0.42 kg
Material	Metal
Working Environment	-30 ℃ to 60 ℃, ≤95% RH
Storage Environment	-30 ℃ to 60 ℃, ≤95% RH
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	20 Languages incl. EN, TH, JP, CN, FR, DE, ES, PT, etc.
Other
Software Version	IPC_G6202
