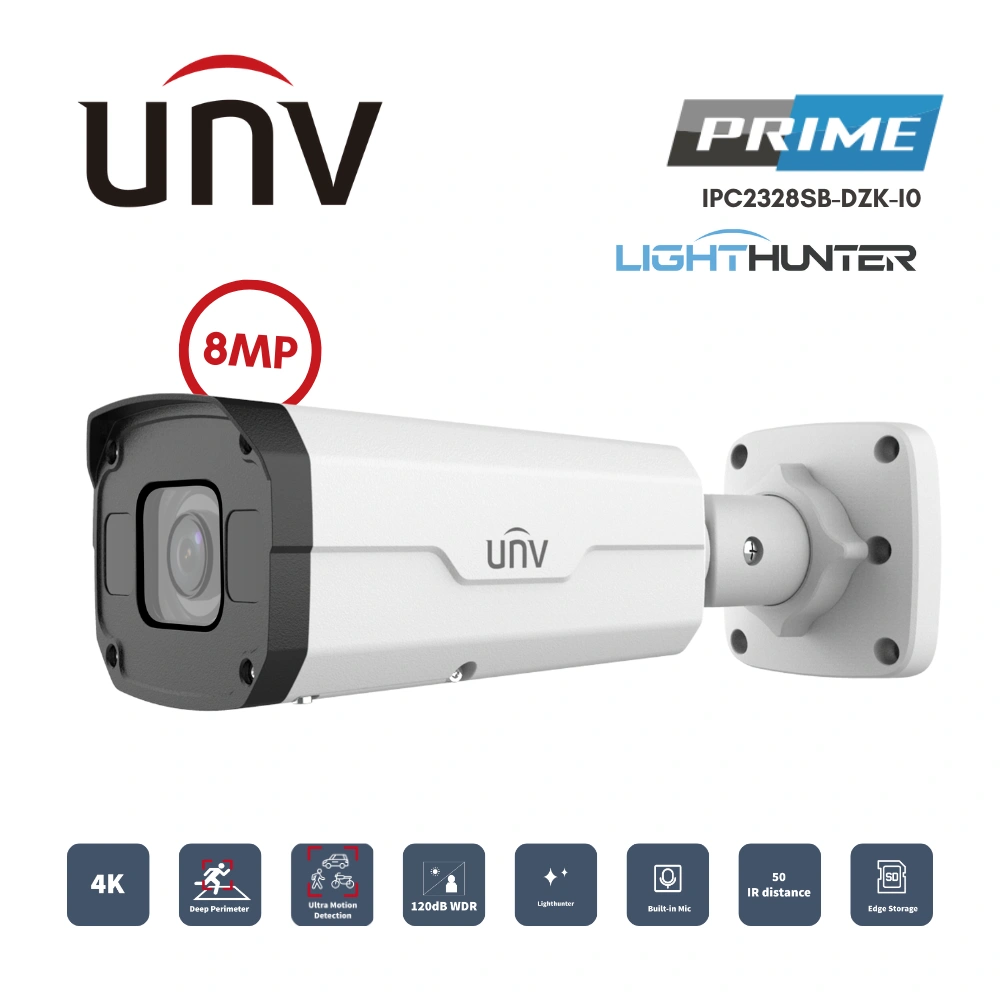

กล้องวงจรปิด IP UNV LightHunter 8MP รุ่น IPC2328SB-DZK-I0

8MP LightHunter VF IR Bullet Network Camera

High quality image with 8 MP, 1/2.8″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
LightHunter technology ensures ultra-high image quality in low illumination environment
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1
Smart IR, up to 50 m (164.0 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection
Supports PoE power supply

Categories: UNV, UNV IP Cameras, UNV Prime Series Tags: IP, กล้องวงจรปิด

Description
Additional information

กล้องวงจรปิด IP UNV LightHunter 8MP รุ่น IPC2328SB-DZK-I0 แบบ Bullet ปรับระยะเลนส์ได้ ให้ภาพคมชัดระดับ 8MP ด้วยเซ็นเซอร์ CMOS พร้อมเทคโนโลยี LightHunter ให้ภาพคุณภาพสูงในสภาพแสงน้อย และ WDR 120dB ให้ภาพชัดแม้แสงจ้า รองรับระบบ Smart Intrusion Prevention ตรวจจับเส้นข้าม พื้นที่บุกรุก เข้า–ออกพื้นที่ พร้อมคัดแยกมนุษย์และยานพาหนะ ลดการแจ้งเตือนผิดพลาด เสริมด้วยฟังก์ชันนับจำนวนคนและวิเคราะห์ความหนาแน่นฝูงชน รองรับโหมด Corridor 9:16 มีพอร์ต Alarm I/O และ Audio I/O อินฟราเรดอัจฉริยะไกล 50 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างแข็งแรงมาตรฐานกันน้ำกันฝุ่น IP67 และกันกระแทกระดับ IK10 รองรับการจ่ายไฟผ่าน PoE เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยทั้งภายในและภายนอกอาคาร

8MP LightHunter VF IR Bullet Network Camera

High quality image with 8 MP, 1/2.8″ CMOS sensor
Video resolution:
- 8MP (3840 × 2160) @20 fps
- 5MP (3072 × 1728) @30/25 fps
- 4MP (2560 × 1440) @30/25 fps
- 1080P (1920 × 1080) @30/25 fps
Supports Ultra 265, H.265, H.264, and MJPEG compression formats
Smart intrusion prevention with cross-line detection, intrusion detection, enter-area alerts, and leave-area alerts
Moreover, intelligent target classification significantly reduces false alarms caused by leaves, birds, and lighting changes
Intelligent people flow counting and crowd density monitoring
LightHunter technology ensures ultra-high image quality in low illumination environment
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Alarm I/O: 1/1, audio I/O: 1/1
Smart IR, up to 50 m (164.0 ft) IR distance
MicroSD, up to 512 GB
IK10 vandal resistant
IP67 protection
Supports PoE power supply

	IPC2328SB-DZK-I0
Camera
Max Resolution	8 MP
Sensor	1/2.8″ CMOS
Min. Illumination	Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120 dB
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 56 dB
Lens
Focal Length	2.8 to 12 mm
Iris	F1.6
Field of View (H)	107.4° to 29.2°
Lens Type	Motorized
Field of View (V)	54.2° to 16.3°
Field of View (D)	111.0° to 33.1°
Iris Type	Fixed
DORI
DORI Distance (Lens)	2.8 to 12 mm
DORI Distance (Detect)	86.9 m to 372.4 m (285.1 ft. to 1121.8 ft)
DORI Distance (Observe)	34.8 m to 149.0 m (114.2 ft. to 488.8 ft)
DORI Distance (Recognize)	17.4 m to 74.5 m (57.1 ft. to 244.4 ft)
DORI Distance (Identify)	8.7 m to 37.2 m (28.5 ft. to 112.0 ft)
Illuminator
Illumination Distance (IR)	50 m (164.0 ft)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Supplemental Light	IR
Video
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840 × 2160), max. ,20 fps; 5 MP (3072 × 1728), max. ,30 fps; 4 MP (2560 × 1440), max. ,30 fps; 1080P (1920 × 1080), max. ,30 fps; Sub Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps; Third Stream: D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
Dewarping	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital defog
Intelligent
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 10.5 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	245 mm × 86 mm × 72 mm (9.6″ × 3.4″ × 2.8″) (L × W × H)
Weight	0.92 kg (2.03 lb)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Material	Metal
Web Client Language	20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
