กล้องวงจรปิด IP UNV 2MP รุ่น IPC2312LE-ADF28(40)KM-WP แบบ Bullet ให้ภาพคมชัดระดับ Full HD ด้วยเซ็นเซอร์ CMOS และเลนส์รูรับแสงกว้าง F1.0 มาพร้อมเทคโนโลยี ColorHunter ผสาน Wise-ISP ช่วยเพิ่มประสิทธิภาพสี รายละเอียด และลดภาพเบลอในสภาพแสงน้อยมาก เทคโนโลยี WDR 120dB ให้ภาพชัดแม้แสงจ้า รองรับโหมด Corridor 9:16 มีไมโครโฟนในตัว ไฟส่องสว่างแบบแสงขาวไกล 30 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างแข็งแรงมาตรฐานกันน้ำกันฝุ่น IP67 รองรับการจ่ายไฟผ่าน PoE และปรับมุมกล้องได้แบบ 3 แกน เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยทั้งภายในและภายนอกอาคาร

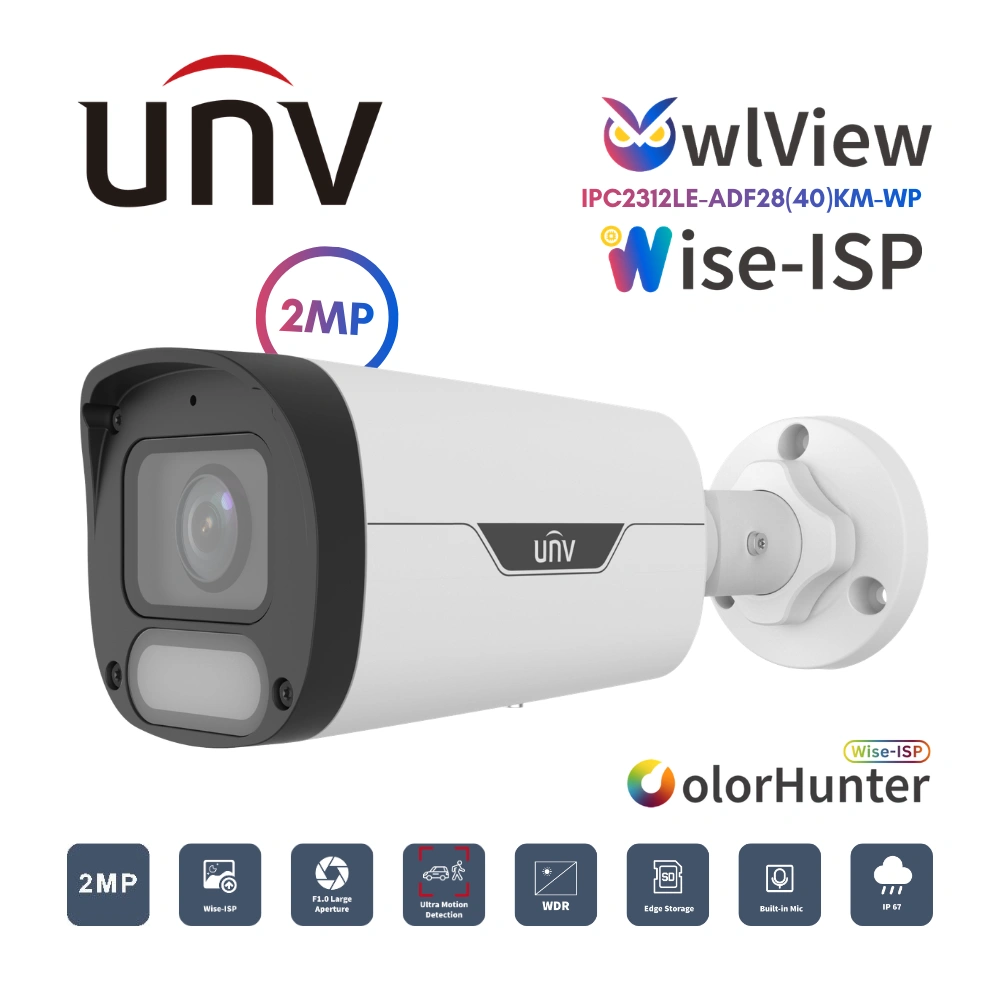

2MP ColorHunter Wise-ISP Fixed Warm Light Bullet Network Camera
High quality image with 1080P, 1/2.7″ CMOS sensor and F1.0 large aperture lens
1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
White light, up to 30 m (98.4 ft) warm light distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis
| IPC2312LE-ADF28KM-WP | IPC2312LE-ADF40KM-WP | |||||||
Camera | ||||||||
| Max Resolution | 2 MP | |||||||
| Sensor | 1/2.7″ CMOS | |||||||
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |||||||
| S/N | >52 dB | |||||||
| WDR | 120 dB | |||||||
Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 99.0° | 85.4° | ||||||
| Field of View (V) | 53.0° | 47.5° | ||||||
| Field of View (D) | 118.0° | 98.5° | ||||||
| Lens Type | Fixed | |||||||
DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | 4 mm | ||||||
| DORI Distance (Detect) | 45.0 m (147.6 ft.) | 64.3 m (211.0 ft.) | ||||||
| DORI Distance (Observe) | 18.0 m (59.1 ft.) | 25.7 m (84.3 ft.) | ||||||
| DORI Distance (Recognize) | 9.0 m (29.5 ft.) | 12.9 m (42.3 ft.) | ||||||
| DORI Distance (Identify) | 4.5 m (14.8 ft.) | 6.4 m (21.0 ft.) | ||||||
Illuminator | ||||||||
| Supplemental Light | Warm light | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps; Sub Stream: 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps | |||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual streams | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Smart Illumination | Support | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
Intelligent | ||||||||
| Smart Intrusion Prevention (Lite) | Intrusion, crossline detection (both detection are based on human body and vehicle detection) | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
| Built-in Mic | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
| Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 2.6 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 206 mm × 73 mm × 73 mm (8.1″ × 2.9″ × 2.9″) (L × W × H) | |||||||
| Weight | 0.47 kg (1.04 lb) | |||||||
| Material | Graphene + Metal | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | |||||||
