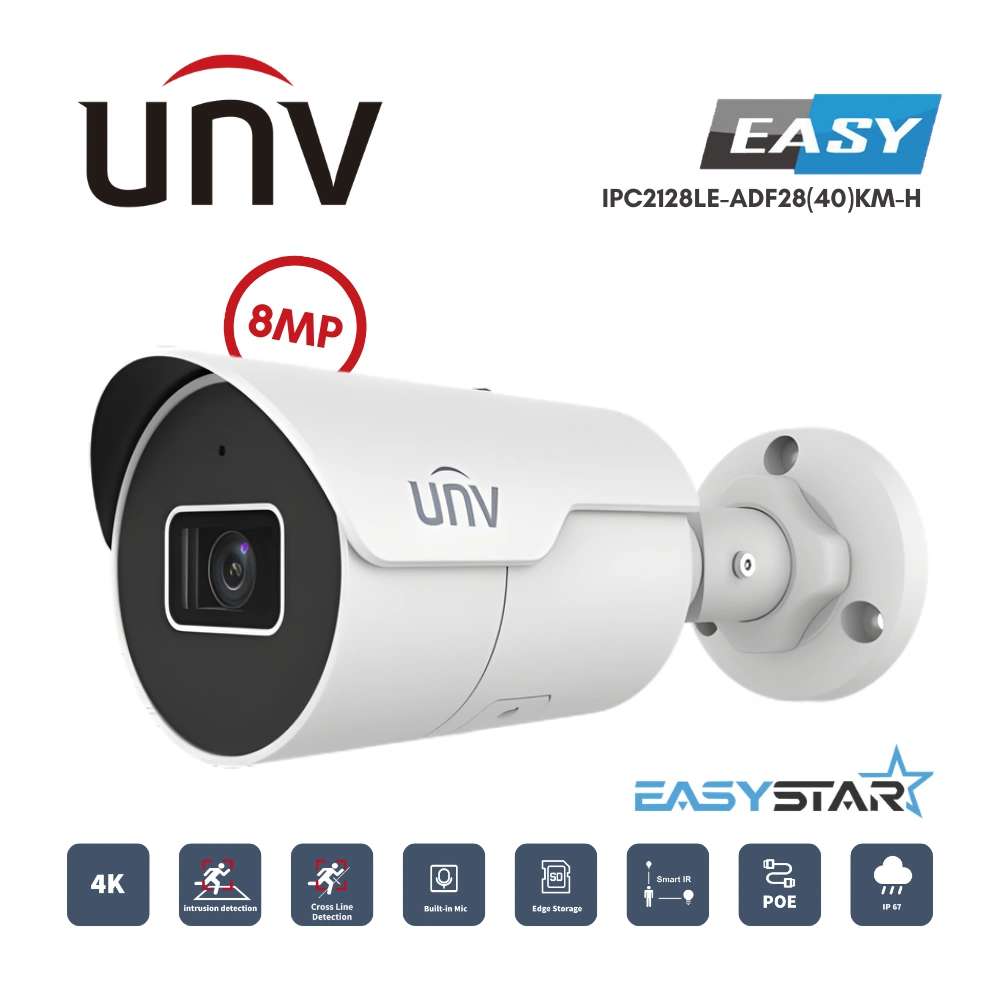

กล้องวงจรปิด IP UNV EasyStar 8MP รุ่น IPC2128LE-ADF28(40)KM-H แบบ Bullet ให้ภาพคมชัดสูงระดับ 8MP (4K) ด้วยเซ็นเซอร์ CMOS รองรับ WDR 120dB ให้ภาพชัดแม้แสงย้อน รองรับโหมด Corridor 9:16 มีไมโครโฟนในตัว อินฟราเรดอัจฉริยะไกล 50 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB ทนทานมาตรฐานกันน้ำกันฝุ่น IP67 รองรับ PoE ติดตั้งง่าย ปรับมุมมองได้ 3 แกน เหมาะสำหรับงานรักษาความปลอดภัยทุกประเภท
8MP EasyStar Fixed IR Bullet Network Camera
High quality image with 8 MP, 1/2.8″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 50 m (164.0 ft) IR distance
MicroSD, up to 512 GB
IP67 protection
Supports PoE power supply
3-axis
| IPC2128LE-ADF28KM-H | IPC2128LE-ADF40KM-H | |||||||
Camera | ||||||||
| Max Resolution | 8 MP | |||||||
| Sensor | 1/2.8″ CMOS | |||||||
| Min. Illumination | Support Easystar: color: 0.005 Lux ( F1.6, AGC ON), 0 Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |||||||
| S/N | >52 dB | |||||||
| WDR | 120 dB | |||||||
Lens | ||||||||
| Focal Length | 2.8 mm | 4.0 mm | ||||||
| Iris Type | Fixed | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 98.7° | 83.1° | ||||||
| Field of View (V) | 53.9° | 48.0° | ||||||
| Field of View (D) | 103.6° | 86.5° | ||||||
DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | 4 mm | ||||||
| DORI Distance (Detect) | 86.9 m (285.1 ft.) | 124.1 m (407.2 ft.) | ||||||
| DORI Distance (Observe) | 34.8 m (114.2 ft.) | 49.7 m (163.1 ft.) | ||||||
| DORI Distance (Recognize) | 17.4 m (57.1 ft.) | 24.8 m (81.4 ft.) | ||||||
| DORI Distance (Identify) | 8.7 m (28.5 ft.) | 12.4 m (40.7 ft.) | ||||||
Illuminator | ||||||||
| Supplemental Light | IR | |||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| Wavelength | 850 nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. ,30 fps; 4 MP (2560 × 1440), max. ,30 fps; 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual streams | |||||||
Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, APP | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
| Built-in Mic | Support | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
| Protection | IP67 (IEC 60529) | |||||||
General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 6.9 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 190 mm × 73 mm × 71 mm (7.5″ × 2.9″ × 2.8″) (L × W × H) | |||||||
| Weight | 0.40 kg (0.88 lb) | |||||||
| Material | Graphene + Metal | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | |||||||
