กล้องวงจรปิด IP UNV OmniView 5MP รุ่น IPC2105SB-ADF16KM-I0 แบบ Bullet ให้ภาพคมชัดระดับ 5MP ด้วยเซ็นเซอร์ CMOS มาพร้อมเทคโนโลยีมุมมองกว้างพิเศษ 180° ครอบคลุมพื้นที่ได้มากกว่า และสามารถตั้งค่าระดับการคลายภาพ (Dewarp) ได้ 1–9 ระดับ รองรับระบบ Smart Intrusion Prevention ตรวจจับเส้นข้าม พื้นที่บุกรุก เข้า–ออกพื้นที่ พร้อมคัดแยกมนุษย์และยานพาหนะ ลดการแจ้งเตือนผิดพลาด เทคโนโลยี WDR 120dB ให้ภาพชัดแม้สภาพแสงจ้า มีไมโครโฟนในตัว อินฟราเรดอัจฉริยะไกล 20 เมตร บันทึกผ่าน MicroSD ได้สูงสุด 512GB โครงสร้างแข็งแรงมาตรฐานกันน้ำกันฝุ่น IP67 รองรับการจ่ายไฟ DC12V และ PoE ปรับมุมกล้องได้แบบ 3 แกน เหมาะสำหรับติดตั้งระบบรักษาความปลอดภัยทั้งภายในและภายนอกอาคาร

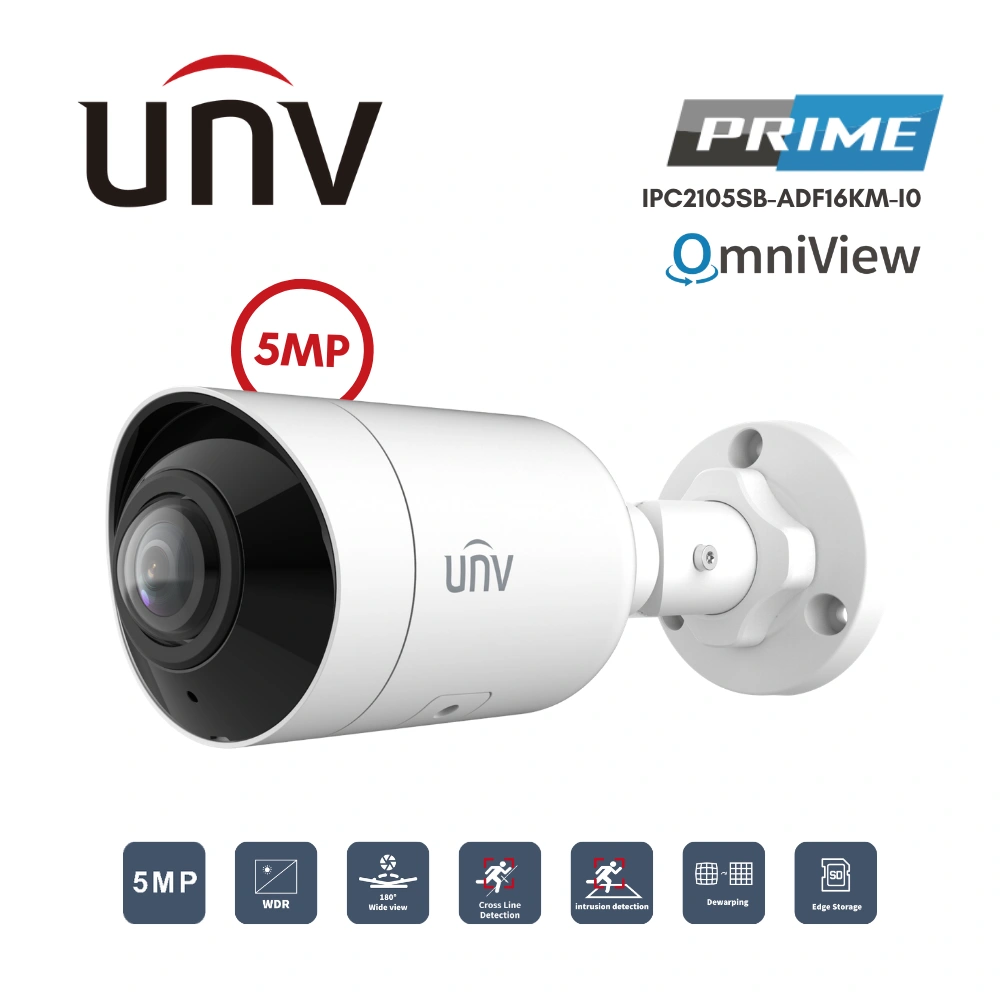

5MP OmniView Fixed IR Bullet Network Camera
High quality image with 5 MP, 1/2.7″ CMOS sensor
Video resolution:
5MP (2880 × 1620) @30/25 fps
4MP (2560 × 1440) @30/25 fps
3MP (2304 × 1296) @30/25 fps
1080P (1920 × 1080) @30/25 fps
Wide-angle technology enables a 180° horizontal field of view
Moreover, the dewarp level is configurable from level 1 to level 9
Supports Ultra 265, H.265, H.264, and MJPEG compression formats
Smart intrusion prevention with cross-line detection, intrusion detection, enter-area alerts, and leave-area alerts
Furthermore, intelligent target classification significantly reduces false alarms caused by leaves, birds, and lighting changes
As a result, the system focuses accurately on humans, vehicles, and non-motor vehicles
120 dB true WDR technology enables clear image in strong light scene
Built-in mic
Smart IR, up to 20 m (65.6 ft) IR distance
MicroSD, up to 512 GB
DC 12 V, PoE (IEEE 802.3af) power supply
IP67 protection
3-axis
IPC2105SB-ADF16KM-I0 | ||
Camera | ||
| Max Resolution | 5 MP | |
| Sensor | 1/2.7″ CMOS | |
| Min. Illumination | Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |
| S/N | >52 dB | |
| WDR | 120 dB | |
Lens | ||
| Focal Length | 1.68 mm | |
| Iris Type | Fixed | |
| Iris | F2.0 | |
| Field of View (H) | 180° | |
| Field of View (V) | 100° | |
| Field of View (D) | 180° | |
DORI | ||
| DORI Distance (Lens) | 1.68 mm | |
| DORI Distance (Detect) | 37.8 m (124.0 ft) | |
| DORI Distance (Observe) | 15.1 m (49.6 ft) | |
| DORI Distance (Recognize) | 7.6 m (24.9 ft) | |
| DORI Distance (Identify) | 3.8 m (12.5 ft) | |
Illuminator | ||
| Supplemental Light | IR | |
| Illumination Distance (IR) | 20 m (65.6 ft) | |
| IR On/Off Control | Auto/Manual | |
| Wavelength | 850 nm | |
Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 5 MP (2880 × 1620), max. ,30 fps; 4 MP (2560 × 1440), max. ,30 fps; 3 MP (2304 × 1296), max. ,30 fps; 1080P (1920 × 1080), max. ,30 fps; 1280 × 720 max. ,30 fps Sub Stream: 1080P (1920 × 1080), max. ,30 fps; 720P (1280 × 720), max. ,30 fps; D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps Third Stream: D1 (720 × 576), max. ,30 fps; 640 × 360, max. ,30 fps; 2CIF (704 × 288), max. ,30 fps; CIF (352 × 288), max. ,30 fps | |
| Video Bit Rate | 128 Kbps to 16 Mbps | |
| U-code | Support | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Support | |
| Video Stream | Triple streams | |
Image | ||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
| Smart IR | Support | |
| Digital Noise Reduction | 2D/3D DNR | |
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |
| Dewarping | Support | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital defog | |
| Low Illumination Characteristics | Low-light | |
Intelligent | ||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |
Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | N/A | |
| Suppression | Support | |
| Sampling Rate | 8 kHz | |
Storage | ||
| Edge Storage | MicroSD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
Network | ||
| Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
| Client | EZStation, APP | |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
Interface | ||
| Built-in Mic | Support | |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
Certification | ||
| Protection | IP67 (IEC 60529) | |
General | ||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Max. 5.5 W | |
| Power Interface | Ø5.5 mm coaxial power plug | |
| Dimensions | 198 mm × 71 mm × 71 mm (7.8″ × 2.8″ × 2.8″) (L × W × H) | |
| Weight | 0.42 kg (0.93 lb) | |
| Material | Metal | |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | Support | |
| Web Client Language | Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |
