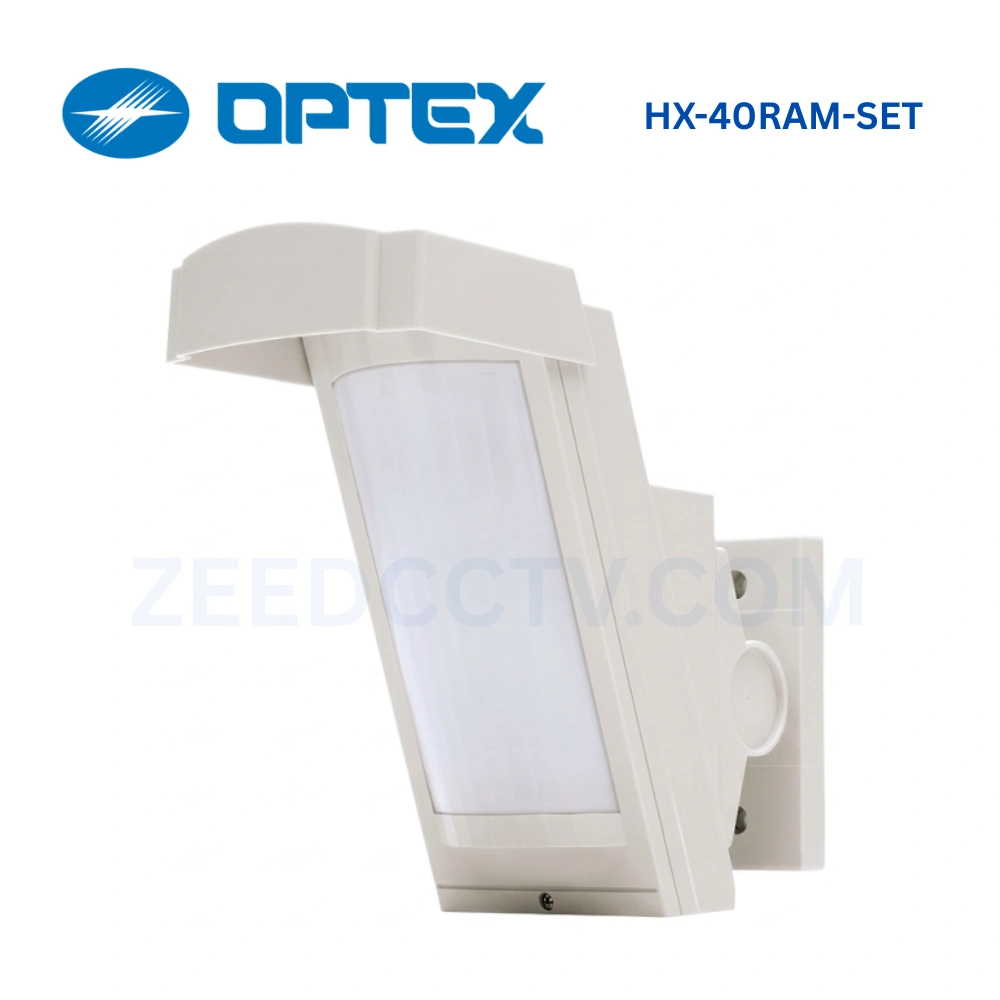

เซ็นเซอร์กันขโมย HX-40RAM จาก Optex เป็นอุปกรณ์ตรวจจับการเคลื่อนไหวสำหรับติดตั้งภายนอกอาคาร ออกแบบมาให้ทนทานต่อสภาพแวดล้อม และทำงานร่วมกับระบบรักษาความปลอดภัยได้อย่างมีประสิทธิภาพ
เซ็นเซอร์กันขโมย HX-40RAM ตรวจจับความเคลื่อนไหวภายนอก เชื่อมต่อกับแผงควบคุมด้วยระบบไร้สายช่วยลดค่าใช้จ่ายและเวลาในการติดตั้ง โดยที่คงความสามารถในการตรวจจับที่แม่นยำสูง หมดกังวลเรื่องได้รับการแจ้งเตือนที่ผิดพลาดจากสัตว์เลี้ยงและสัตว์ขนาดเล็ก นอกจากนี้ HX-40RAM ยังมาพร้อมกับเทคโนโลยี Anti-masking ระบบแจ้งเตือนเมื่อมีผู้บุกรุกพยายามบดบังการทำงานของเซนเซอร์
- Mounting height 2.5-3m
- Detection range 12 m. 90° wide
- Long battery life
- Active IR digital anti-masking
- Form C alarm output and tamper output-soild state swtich-
- Selectable N.C./N.O. trouble output -solid state swtich-
- Battery saving timer function
- Compatible with numerous wireless transmitters
- IP55
Model | HX-40RAM |
| Detection method | Passive Infrared |
| Anti-masking | ✓ |
| PIR Coverage | 12 m (40′) 85″ wide / 94 zones |
| PIR distance limit | 4.0 m, 5.5 m, 9.0 m (13’1″, 18’1″, 29’6″) |
| Detectable speed | 0.3 m/s – 1.5 m/s (1’/s – 4’11″/s) |
| Sensitivity | 2.0 ํC (3.6 ํF) at 0.6 m/s |
| Power input | 3 -7.2VDC Lithium Battery (CR123 × 3, CR2 × 3, 1/2AA × 3, 1/2AA × 6) |
| Operating Voltage | 2.5 to 9 VDC |
| Current draw | 30 𝜇A (standby) / 4 mA (max) at 3 VDC |
| Alarm period | 2.0 ± 1.0sec. |
| Warm-up period | Approx. 90 sec. or less (LED blinks) |
| Alarm output | Form C-Solid State Switch – 10VDC 0.01A max |
| Temper output | Form C. 28V DC 0.1A max. activates when cover is removed |
| Trouble output | N.C./N.O. Selectable -Solid State Switch- 10VDC 0.01A max |
| Aux input | – |
| LED indicator | Disable: During normal operation Enable: During WALK TEST or LED SW on. Red: Warm-up, Alarm, Trouble, Low battery |
| RF interference | No alarm 10 V/m |
| Operation temperature | -20 ํC to +60 ํC (-4 ํF to + 140 ํF) |
| Environment humidity | 95 % max. |
| Weatherproof | IP55 |
| Mounting | Wall |
| Mounting height | 2.5 – 3.0 m (8’2″ – 9’10”) |
| Bracket adjust angle | Vertical: ± 20 ํ Horizontal: ±95 ํ |
| Weight | 600 g (21.2 oz) |
| Accessories | Bracket, Hood, Area masking seal, Swrew kit (3 × 10-2, 4 × 20-4) Velcro tape × 2, Alarm cable, Battery lead × 2, Dummy battery kit |
