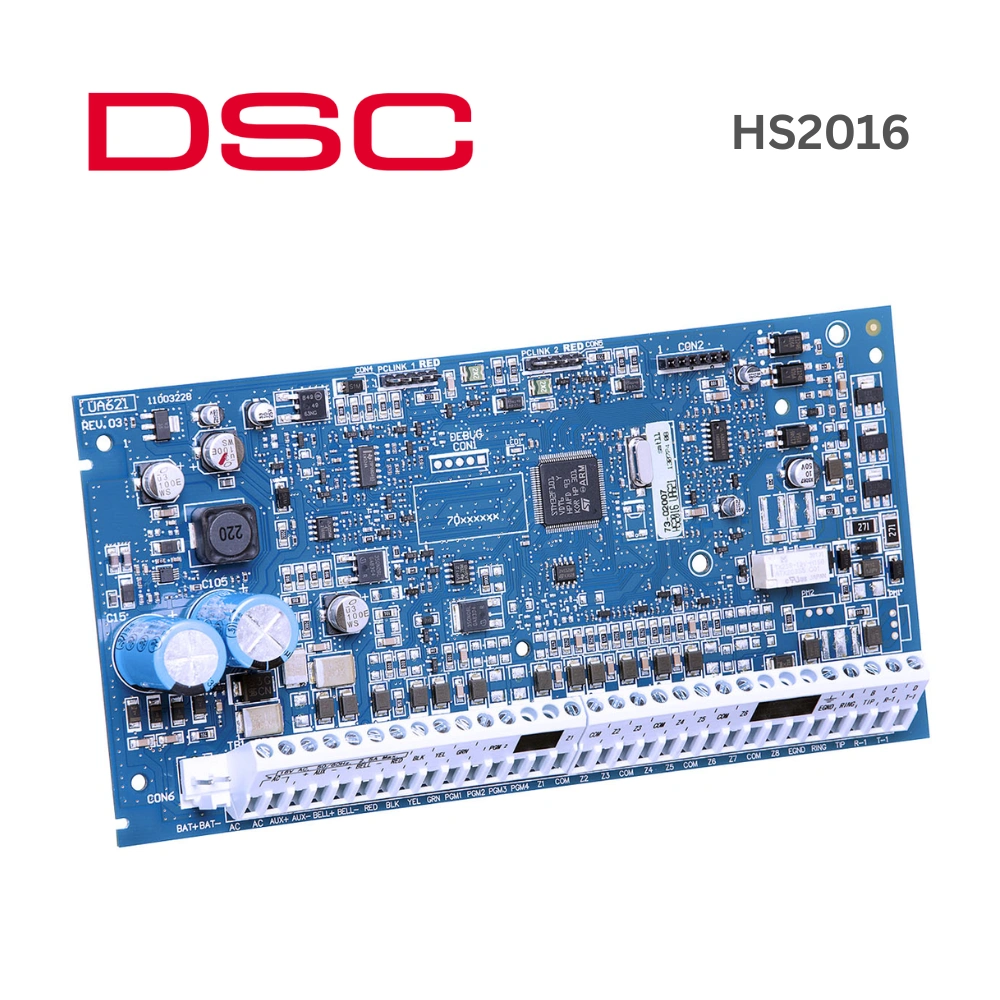

DSC ตู้ควบคุม Alarm Control Panel 6 Zone รุ่น HS2016 ปกป้องอาคารของคุณด้วยระบบแจ้งเตือนบุกรุกที่มีความเสถียรสูง พร้อมรับบริการวางระบบโครงข่ายและ ติดตั้ง ระบบ Network และ Fiber Optic เพื่อการเชื่อมต่อระบบความปลอดภัยที่สมบูรณ์แบบ
6 Zone Control Panel Exp.to 16 zones
- 6 on-board zones
- Expandable to 16 wireless and hardwired zones
- 2 PGM outputs: expandable to 22 (HSM2204, HSM2208)
- Template programming
- Connect up to 8 supervised keypads with keypad zones
- 2 partitions
- 500-event buffer
- 48 user codes
- Interconnected smoke detector support with v1.2 allows for additional warning in potential life-threatening situations
| Features | HS2016 |
|---|---|
| Number of On-Board Zones | 6 |
| Total Zones Supported | 16 |
| Keypad Zone Expansion | Yes |
| Hardwired Zones | Yes |
| Wireless Zone Expansion | Yes |
| Number of Hardwired Keypads | 8 |
| Number of Wireless Keypads | 8 |
| Number of Wireless Receivers | 1 |
| Number or Wireless Repeaters | 4 |
| On-Board PGM Outputs | 2 |
| Number of Main Panel Low-Current PGM Outputs | 1 |
| Number of Main Panel High-Current PGM Outputs | 1 |
| PGM Expansion | Yes |
| Number of Additional High-Current PGM Outputs | 4 |
| Number of Additional Low-Current PGM Outputs | 16 |
| Number of Access Codes | 47 + master |
| Number of Partitions | 2 |
| Panel Event Buffer | 500 |
| Phone Line Supervision | Yes |
| Siren Supervision | Yes |
| Bell Output | Yes |
| SIA CP-01 Compliant | Yes |
| SMS Command and Control | Yes |
| Upload/Download Support | Yes |
| Direct-Connect (PC Link) Downloading Support | Yes |
| DLS SA End-User Downloading Support | Yes |
| Internet Alarm Communications | Yes |
| Audio Alarm Verification | with HSM2955(R) |
| Cellular Alarm Communications | Yes |
| Battery Required | Yes |
