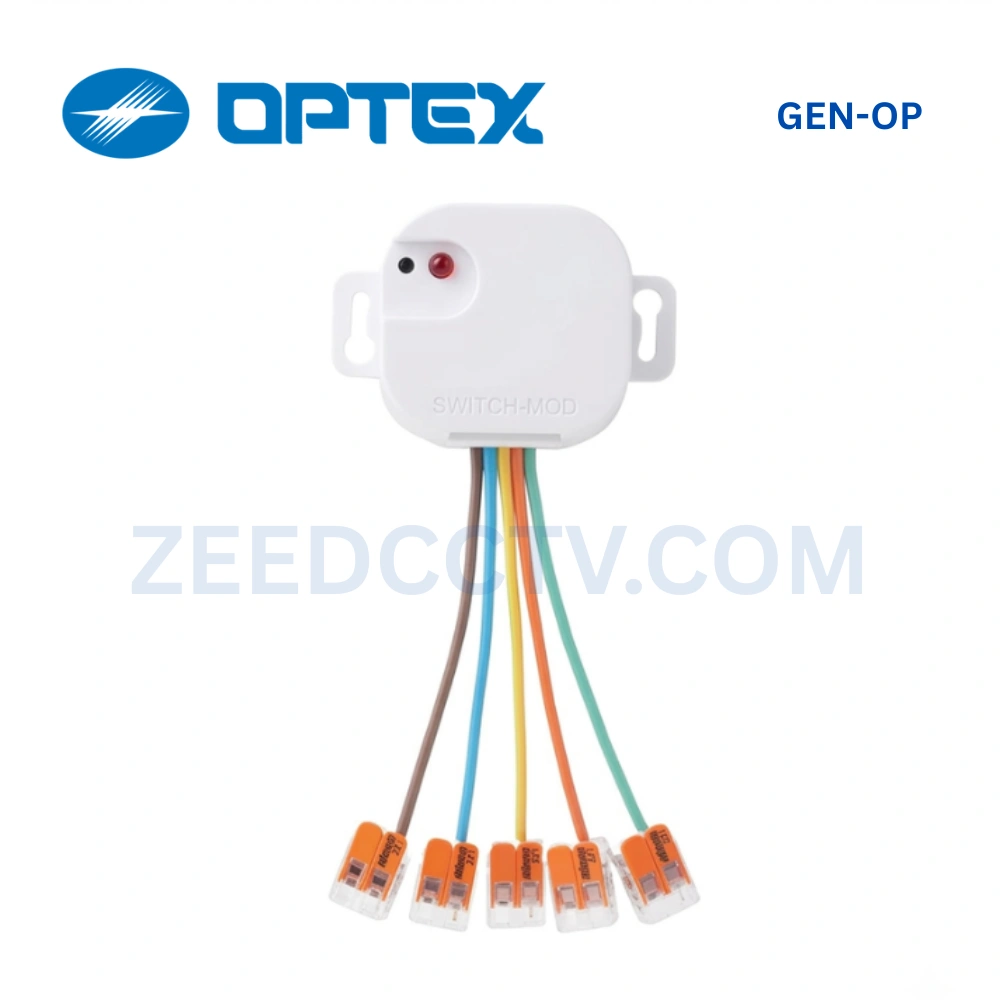

ตัวแปลงรีเลย์ไร้สาย GEN-OP / PRL-5-GEN is a ZigBee relay controller designed to automatically open and close pool covers, gas valve, water valve or sprinkler system, etc. With its service the user can remotely manage facilities inside and outside the home using remote controls, keypads, or control hubs. The PRL-5-GEN also allows relay activation events to be integrated into other home automation activities, enhancing the convenience and capabilities of an automated home.
- Automates any device controllable by an SPDT relay
- One relay contact and one dry contact
- Simplifies wiring efforts
- Compatible with other manufacturers’ ZigBee products
Model | GEN-OP |
| Networks supported | IEEE 802.15.4 mesh networking |
| Data rate | 250kbps |
| Frequency | 2.4 GHz |
| Power soure (external power) | 5V DC (PRL-1ZBS-5V) 12~24V DC (PRL-1ZBS-12V/24V) 100~240V AC (PRL-1ZBS-AC) |
| Power usage | ~300 mA fully active |
| Relay output | SPDT relay |
| Operating Temperature | -10 ํC to + 45 ํC |
| Operating humidity | Up to 85% non-condensing |
| Dimensions | 71.1mm x 49mm x 26mm |
