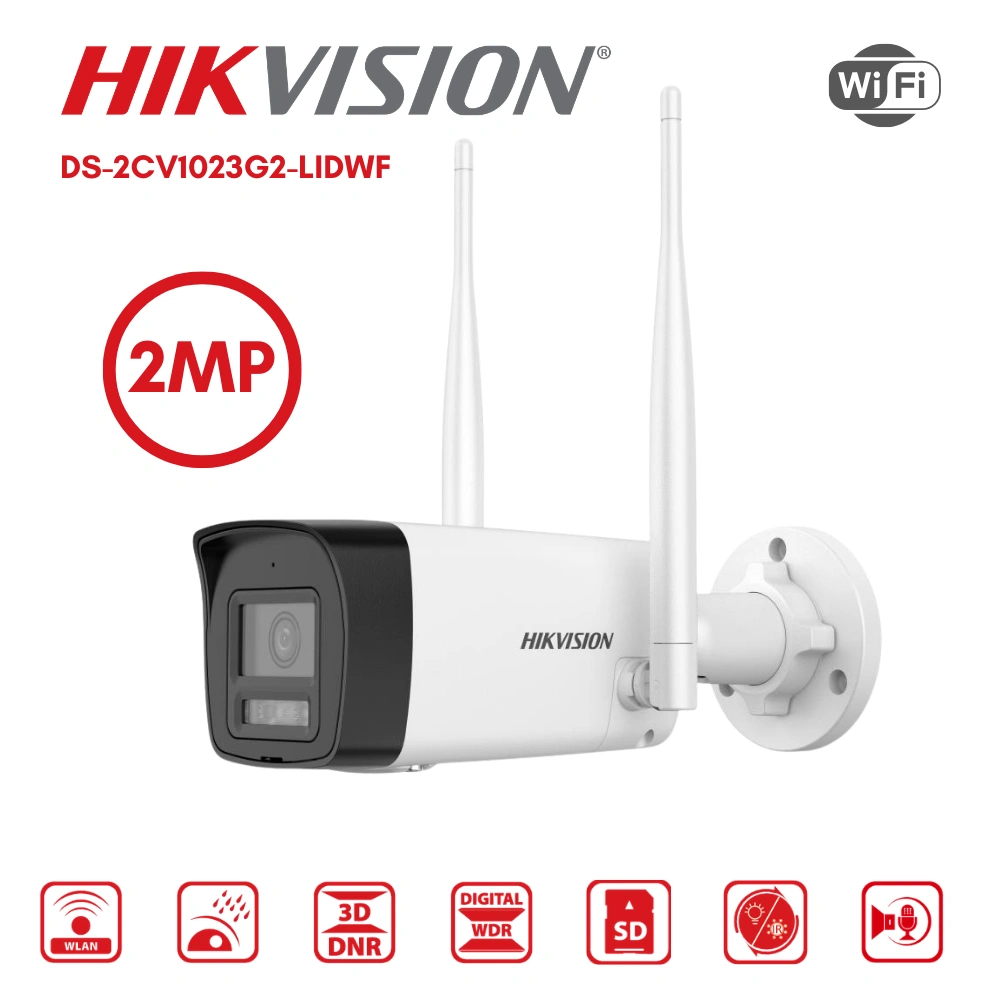

กล้องวงจรปิด Wi-Fi Hikvision 2MP รุ่น DS-2CV1023G2-LIDW(F)(B) กล้อง Outdoor รองรับ Wi-Fi 6 ความละเอียด 2MP ตรวจจับคนและรถ พร้อมไมค์ลำโพงสนทนา Two-Way Audio
อินฟราเรดและแสงขาวระยะ 30 เมตร รองรับ MicroSD สูงสุด 512GB มาตรฐานกันน้ำกันฝุ่น IP66
4 MP Indoor Wi-Fi Fixed PT Turret Network Camera
- ใช้งาน Wi-Fi 6 ได้อย่างเสถียร
- มีไมโครโฟนและลำโพงในตัว รองรับการสนทนาสองทาง
- ให้ภาพกลางคืนชัดเจน ด้วยอินฟราเรดสูงสุด 20 เมตร และแสงสีขาว 15 เมตร
- มาพร้อม Digital WDR, HLC, BLC และ 3D DNR
- ความละเอียด 4 ล้านพิกเซล ให้ภาพคมชัดสูง
Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens | |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92° 6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F2.0 |
| Depth of Field | 2.8 mm: 0.8 m~∞ 4 mm: 1.1 m~∞ 6 mm: 2.3 m~∞ |
DORI | |
| DORI | 2.8 mm: D: 43 m, O: 17 m, R: 8 m, I: 4 m 4 mm: D: 59 m, O: 23 m, R: 11 m, I: 5 m 6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m |
Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432) |
| Sub-Stream | 50 Hz: 25 fps (768 × 432) 60 Hz: 30 fps (768 × 432) |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG, |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711(ulaw)/ (AAC-LC) |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
Wi-Fi | |
| Transfer Rate | 11b: up to 11 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps, 11ax: up to 114 Mbps |
| Wi-Fi Protocol | IEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax |
| Frequency Range | 2.412 GHz to 2.472 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, 64QAM, 802.11n: BPSK, QPSK, 16QAM, 64QAM, 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
Image | |
| Image Settings | Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR,Defog |
| Wide Dynamic Range (WDR) | 120 dB |
Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
General | |
| Power | 12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, |
| Material | Plastic |
| Dimension | 260.9 mm × 113.9 mm × 67.4 mm (10.3″ × 4.5″ × 2.7″) |
| Package Dimension | 300 mm × 130 mm × 100 mm (10.2″ × 5.1″ × 4.9″) |
| Weight | Approx. 310 g (0.68 lb.) |
| With Package Weight | Approx. 550 g (1.12 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
Approval | |
| Protection | IP67: IEC 60529-2013 |
