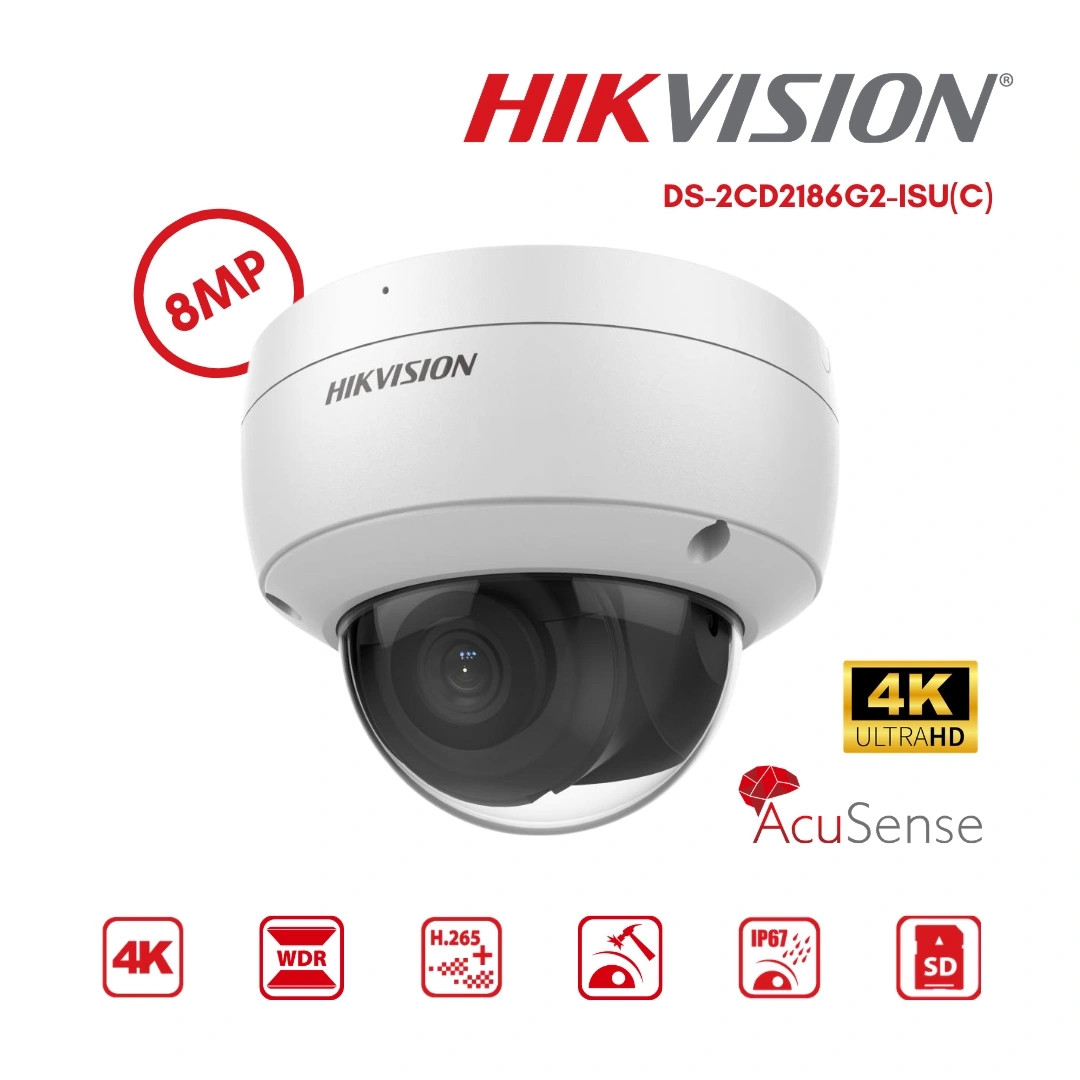

กล้องวงจรปิด Hikvision 8MP 4K DS-2CD2186G2-ISU เป็นกล้องระบบ IP ความละเอียด 8MP ระดับ 4K ให้ภาพคมชัดสูง เห็นรายละเอียดได้ชัดเจน มาพร้อมไมโครโฟนในตัวสำหรับบันทึกเสียง รองรับอินฟราเรด (IR) สำหรับการมองเห็นในเวลากลางคืน และมาตรฐานกันน้ำกันฝุ่น IP67 เหมาะสำหรับติดตั้งทั้งภายในและภายนอกอาคาร เชื่อมต่อกับเครื่องบันทึก NVR และดูภาพผ่านมือถือได้สะดวก
- กล้องวงจรปิด รุ่น DS-2CD2166G2-I
- ความละเอียด 8 ล้านพิกเซล (8MP)
- รูปทรงโดม Dome Camera
- ขนาดเลนส์ 2.8mm / 4mm
- ขนาดเซนเซอร์ 1/1.8″
- ค่า(LUX) 0.003
- การบีบอัดไฟล์ H.265+
- ระยะอินฟาเรด IR 30m
- การย้อนแสง 120 dB WDR
- มีไมค์ในตัว บันทึกเสียงได้
- มาตรฐานการป้องกัน IP67 , IK10
Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° |
| Aperture | F1.6 |
| Lens Mount | M12 |
DORI | |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m |
Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | At 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) At 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 (*Third stream is supported under certain settings.) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-strea |
| Audio | |
| Environment Noise Filtering | -U: Yes |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Type | -U: Mono sound |
Image | |
| Image Parameters Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
Interface | |
| Built-in Microphone | -U: Yes |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Alarm | -S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA) |
| Audio | -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Reset Key | Yes |
Deep Learning Function | |
| Face Capture | Yes |
General | |
| Web Client Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Material | Aluminum alloy body, bubble: plastic |
| Camera Dimension | Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.6″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ ×5.6″) |
| Camera Weight | Approx. 590 g (1.3 lb.) |
| With Package Weight | Approx. 850 g (1.9 lb.) |
Approval | |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
