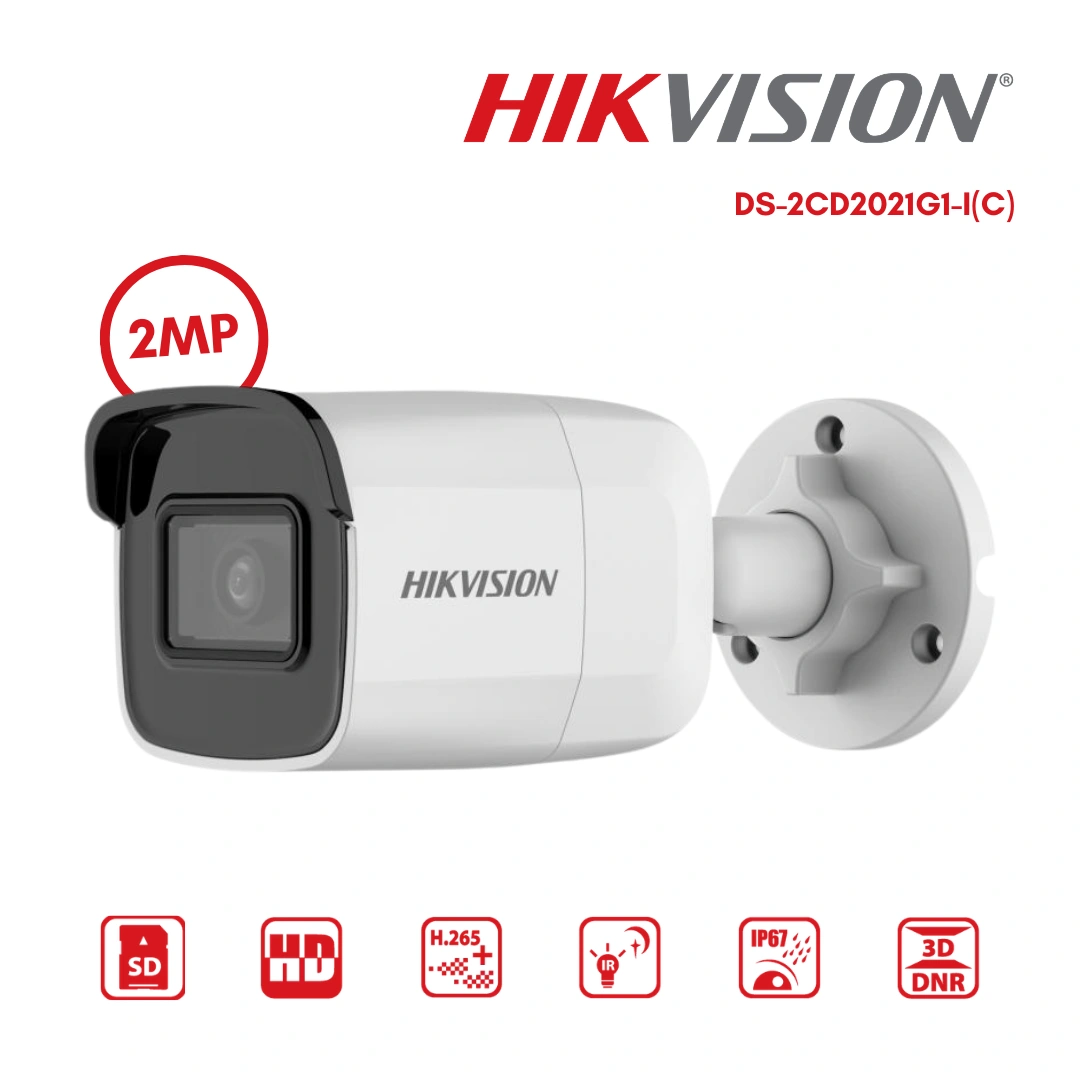

กล้องวงจรปิด Hikvision 2MP รุ่น DS-2CD2021G1-I เป็นกล้องระบบ IP ความละเอียด Full HD 1080p ให้ภาพคมชัดทั้งกลางวันและกลางคืน มาพร้อมอินฟราเรด (IR) สำหรับการมองเห็นในที่แสงน้อยหรือเวลากลางคืน ตัวกล้องออกแบบให้รองรับการติดตั้งภายนอกอาคาร ด้วยโครงสร้างแข็งแรงทนทานต่อสภาพอากาศ รองรับการดูภาพสดและย้อนหลังผ่านมือถือหรือคอมพิวเตอร์ เหมาะสำหรับบ้านพัก ร้านค้า สำนักงาน และพื้นที่กลางแจ้งที่ต้องการระบบรักษาความปลอดภัยที่เชื่อถือได้
- กล้องวงจรปิด รุ่น DS-2CD2021G1-I
- ความละเอียด 2 ล้านพิกเซล (2MP)
- รูปทรงกระบอก Bullet Camera
- ขนาดเลนส์ 2.8 mm / 4 mm
- ขนาดเซนเซอร์ 1/2.7″
- ค่า(LUX) 0.005
- การบีบอัดไฟล์ H.265+
- ระยะอินฟาเรด IR 30 เมตร
- การย้อนแสง 120 dB WDR
- รองรับเมมโมรี่การ์ด สูงสุด 256 GB
- มาตรฐานการป้องกัน IP67
Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens | |
| Lens Type | Fixed |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9° 4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° 6 mm, horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | Support 1 fixed region for main stream |
Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| Network Storage | Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in Micro SD slot, up to 256 GB |
| Reset Key | Yes |
Event | |
| Smart Event | Line crossing detection, intrusion detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Power | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, 36 to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material | Metal, Plastic |
| Dimension | 69.7 mm × 67.9 mm × 171.4 mm (2.7″ × 2.7″ × 6.7″) |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.7) |
| Weight | Approx. 350 g (0.8 lb.) |
| With Package Weight | Approx. 450 g (1.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
