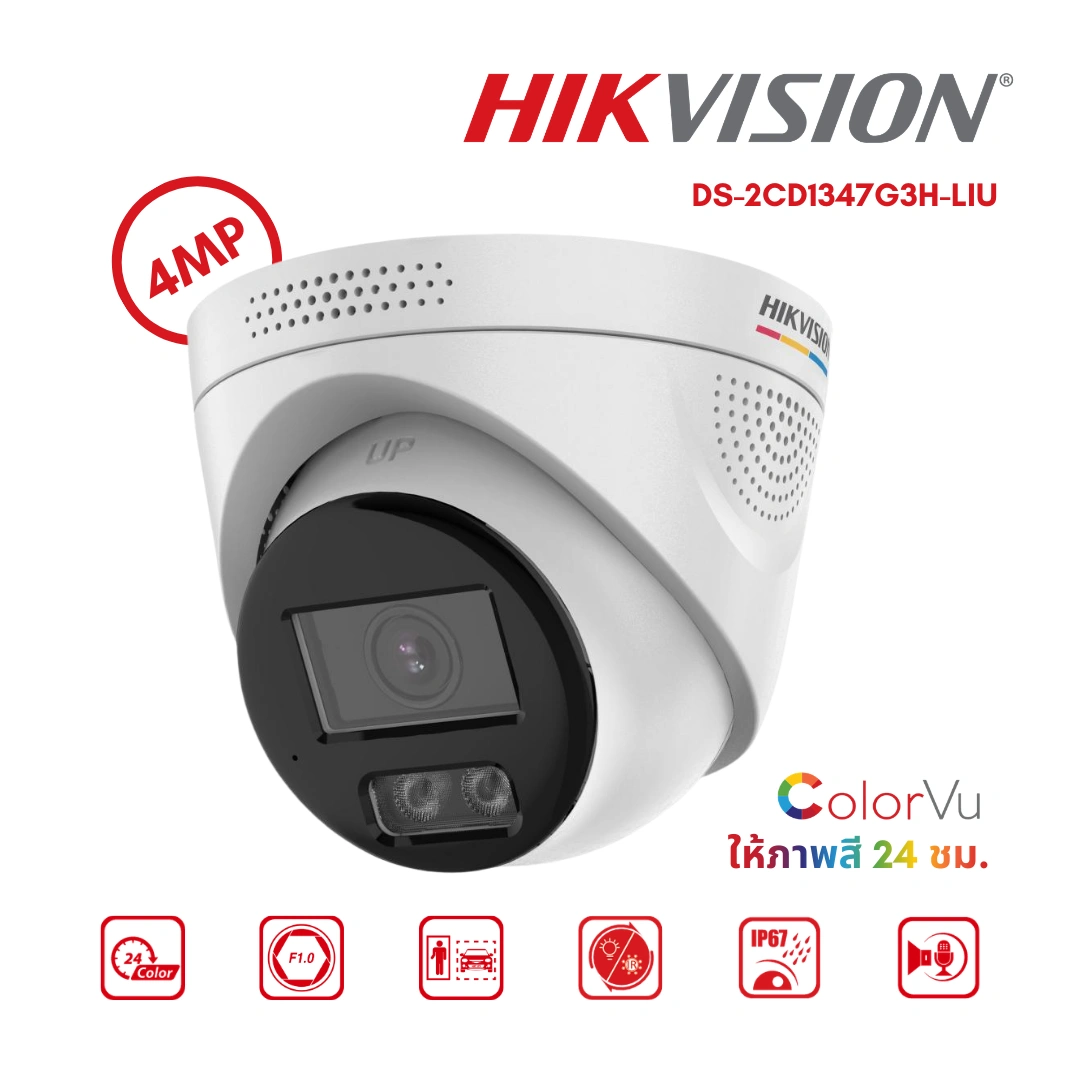

กล้องวงจรปิด Hikvision 4MP รุ่น DS-2CD1347G3H-LIU(F) เป็นกล้องระบบ IP ความละเอียด 2K (4MP) ที่มาพร้อมเทคโนโลยี ColorVu ให้ภาพสีคมชัดตลอด 24 ชั่วโมง แม้ในสภาพแสงน้อย เสริมด้วยระบบ Smart Hybrid Light ที่สามารถปรับโหมดไฟอัจฉริยะระหว่างไฟสีและอินฟราเรดตามสภาพแวดล้อม เพื่อให้ได้ภาพที่ชัดเจนและเหมาะสมกับพื้นที่ติดตั้ง รุ่น (LIU(F)) รองรับไมโครโฟนในตัวสำหรับบันทึกเสียง เพิ่มความครบถ้วนในการเฝ้าระวังความปลอดภัย รองรับการดูภาพสดและย้อนหลังผ่านมือถือได้ทุกที่ทุกเวลา เหมาะสำหรับติดตั้งภายในอาคาร บ้านพัก ร้านค้า และสำนักงาน
WEEE: 2012/19/EU
- กล้องวงจรปิด รุ่น DS-2CD1347G3H-LIU(F)
- ความละเอียด 4 ล้านพิกเซล (4MP)
- รูปทรงโดม Turret Camera
- ขนาดเลนส์ 2.8mm / 4mm
- ขนาดเซนเซอร์ 1/1.8″
- ค่า(LUX) 0.0001
- การบีบอัดไฟล์ H.265+
- ระยะอินฟาเรด IR, White Light 30m
- การย้อนแสง 120 dB WDR
- มีไมค์ในตัว บันทึกเสียงได้
- เทคโนโลยี Full Color ให้ภาพสี 24 ชั่วโมง
- มีไฟอัจฉริยะ Smart hybrid light
- รองรับ เมมโมรี่การ์ด สูงสุด 512 GB
- มาตรฐานการป้องกัน IP67
Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON) |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104°, vertical FOV 54.4°, diagonal FOV 126.7° 4 mm, horizontal FOV 89.3°, vertical FOV 48.2°, diagonal FOV 106.5° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 2.5 m to ∞ 4 mm: 2.8 m to ∞ |
DORI | |
| DORI | 2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m |
Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3) |
Network | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89 |
Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | LIUF、LIUF/SL(RB):Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB; LIU、LIU/SL(RB):NA; |
| Built-in Microphone | Yes,1 built-in microphone |
| Built-in Speaker | Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB. |
Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP,notify surveillance center,send email,trigger recording,trigger capture |
| Power | 12 VDC ± 25%, 0.64 A, max. 7.68 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.21 W |
| Material | Cover: PLASTIC, main body: METAL |
| Dimension | Ø130.1 mm × 103.1 mm (Ø5.1″ × 4.1″) |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″) |
| Weight | Approx. 580 g (1.3 lb.) |
| With Package Weight | Approx. 800 g (1.8 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German |
| General Function | Heartbeat, mirror,flash log,password reset via email,password protection,anti-banding |
| Flashing Light | Red and Blue Light |
Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU |
| Protection | IP67: IEC 60529-2013 |
