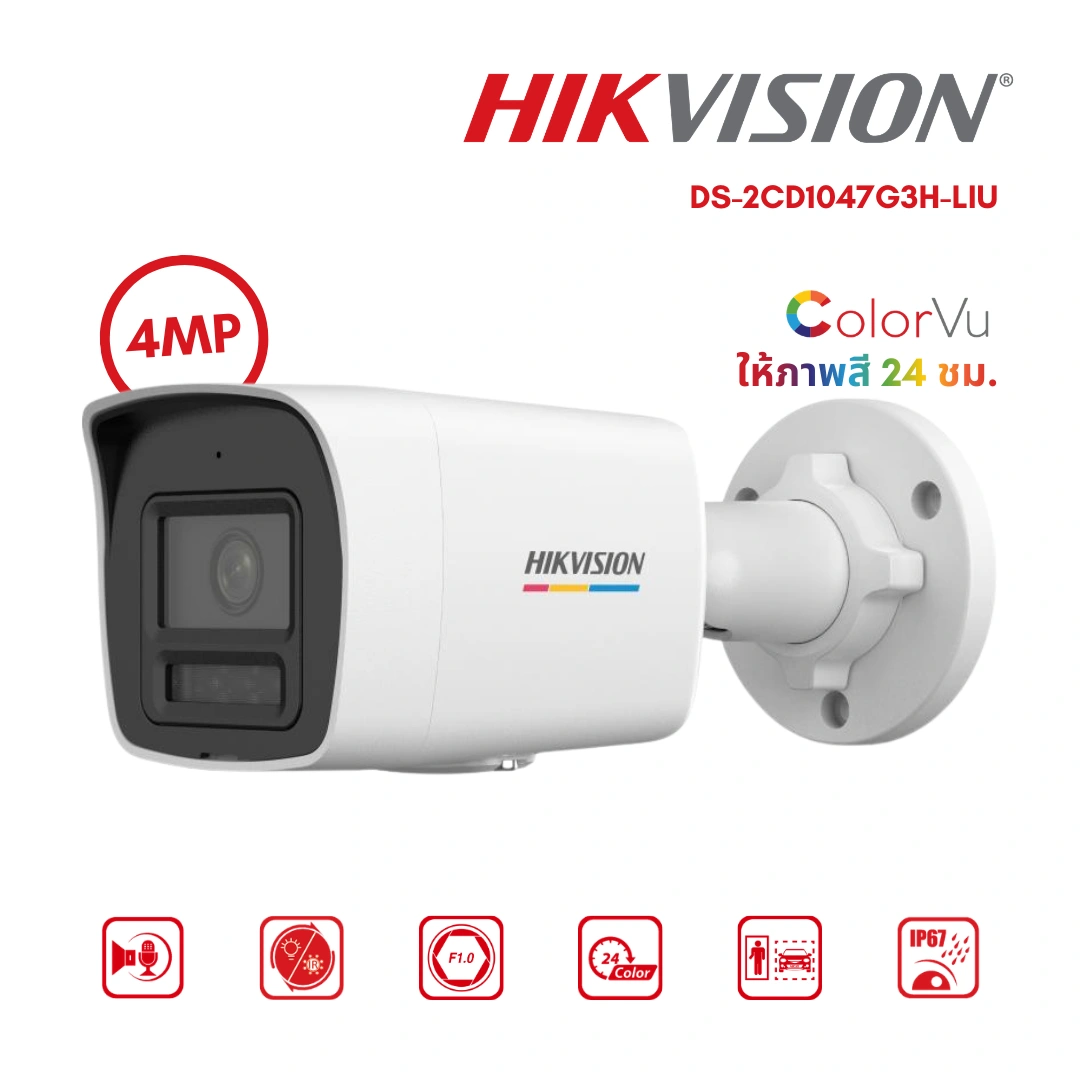

กล้องวงจรปิด Hikvision 4MP รุ่น DS-2CD1047G2H-LIUF เป็นกล้องวงจรปิด Hikvision 4MP รุ่น DS-2CD1047G3H-LIU เป็นกล้องระบบ IP ความละเอียดระดับ 2K (4MP) ที่ผสานเทคโนโลยี ColorVu และ Smart Hybrid Light รุ่นใหม่ ให้ภาพสีคมชัดตลอด 24 ชั่วโมง แม้ในสภาพแสงน้อย ระบบสามารถปรับการทำงานระหว่างไฟแสงสีและอินฟราเรดได้อัตโนมัติเพื่อให้เหมาะกับพื้นที่ติดตั้ง รองรับการบันทึกเสียงด้วยไมโครโฟนในตัว และสามารถดูภาพสดหรือย้อนหลังผ่านมือถือได้ตลอดเวลา เหมาะสำหรับติดตั้งภายนอกอาคาร บ้านพัก ร้านค้า สำนักงาน และพื้นที่ที่ต้องการภาพสีชัดเจนทั้งกลางวันและกลางคืน
- กล้องวงจรปิด รุ่น DS-2CD1047G2H-LIUF
- ความละเอียด 4 ล้านพิกเซล (4MP)
- รูปทรงกระบอก (Bullet Camera)
- ขนาดเลนส์ 2.8 มม. / 4 มม.
- ขนาดเซนเซอร์ 1/3″ CMOS
- ค่าความไวแสงต่ำสุด 0.0005 Lux
- รองรับการบีบอัดไฟล์ H.265+
- เทคโนโลยี HikAI-ISP ช่วยลดสัญญาณรบกวนของภาพได้อย่างมีประสิทธิภาพ
- เทคโนโลยี ColorVu 3.0 (Full Color) ให้ภาพสีคมชัดตลอด 24 ชั่วโมง
- Motion Detection 3.0 ตรวจจับความเคลื่อนไหว พร้อมแยกแยะบุคคลและยานพาหนะได้แม่นยำ
- มีไมโครโฟนในตัว รองรับระบบเสียงสองทาง (Two-Way Audio)*
- มีไฟแจ้งเตือน Strobe Light เพื่อเพิ่มความปลอดภัยแบบเรียลไทม์*
- ระบบไฟอัจฉริยะ Smart Hybrid Light ผสาน IR และ White Light เลือกได้ 3 โหมด
- ระยะส่องสว่าง IR / White Light สูงสุด 30 เมตร
- รองรับหน่วยความจำ MicroSD สูงสุด 512GB*
- มาตรฐานป้องกันน้ำและฝุ่นระดับ IP67
*เฉพาะบางรุ่นย่อย (SL/SRB หรือ -F)
Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143° 4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
DORI | |
| DORI | 2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m |
Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network | |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Client | iVMS-4200 ,Hik-Connect |
| Web Browser | Pug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+ |
Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | NA |
| Built-in Microphone | Yes,1 built-in microphone |
| Reset Key | NA |
| RReset Key | NA |
Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture |
General | |
| Power | 12 VDC ± 25%, 0.58 A, max. 7 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W |
| Material | Cover: PLASTIC, main body: METAL |
| Dimension | 69.1 mm × 66.9 mm × 172.9 mm (2.7″ × 2.6″ × 6.8″) |
| Package Dimension | 210 mm × 116 mm × 106 mm (8.3″ × 4.6″ × 4.2″) |
| Weight | Approx. 310 g (0.7 lb.) |
| With Package Weight | Approx. 465 g (1.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
Approval | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
