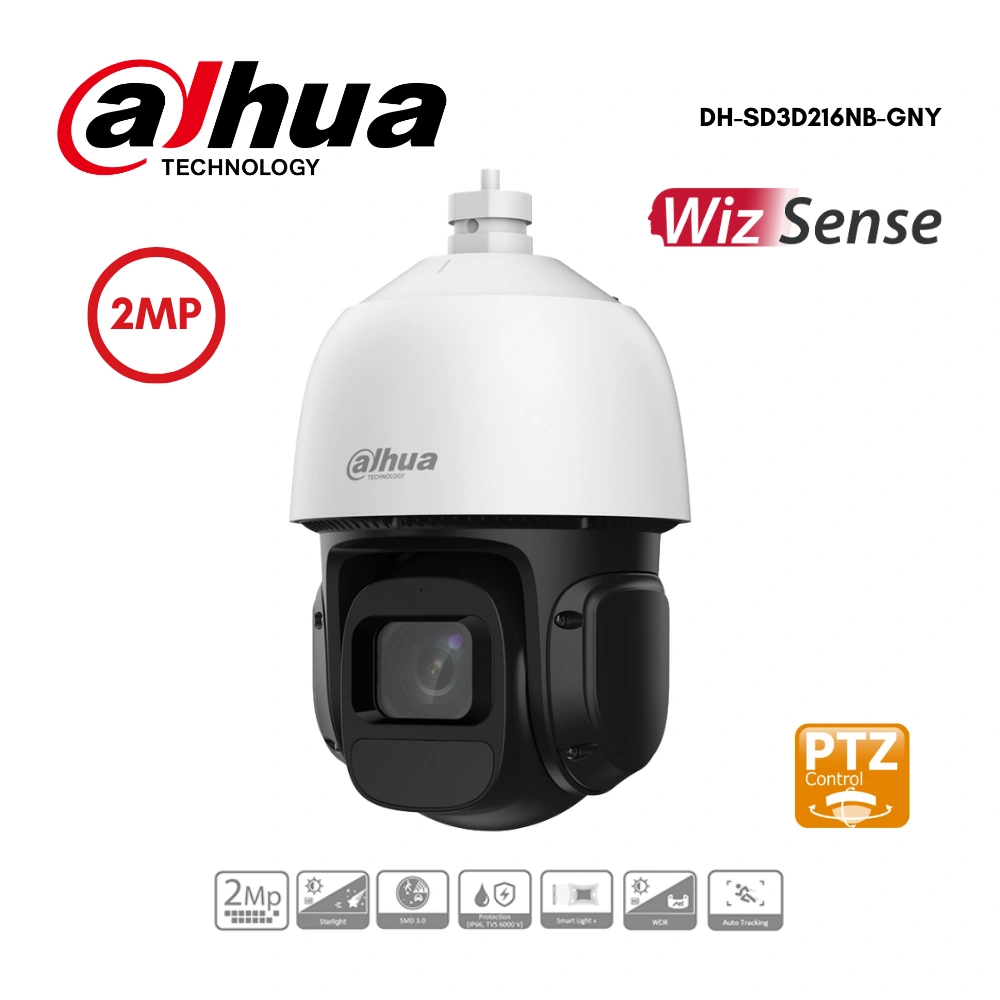

กล้องวงจรปิด IP Dahua PTZ 2MP รุ่น DH-SD3D216NB-GNY

Camera

Image Sensor

1/2.8″ CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);

0.0005 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

Illumination Distance

80 m (262.47 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

3 (IR)

Lens

Focal Length

5.0 mm–80 mm

Max. Aperture

F1.6–F3.5

Field of View

H: 54.4°–4.1° ; V: 31.4°–2.3°; D: 61.3°–4.7°

Optical Zoom

16×

Focus Control

Auto; Semi-auto; Manual

Close Focus Distance

0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control

Fixed

DORI Distance

Lens

Detect

Observe

Recognize

Identify

5.0 mm–80 mm

1,103.4 m

( 3,620.08 ft)

435.9 m

( 1,430.12 ft)

220.7 m

( 724.08 ft)

110.3 m

( 361.88 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s

Preset Speed

Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Preset

PTZ Protocol

DH-SD

Smart Event

IVS

Tripwire; intrusion

Intelligence

Smart Tracking

Auto Tracking 1.0

SMD

SMD 3.0

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3MP (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p @(1–25/30 fps)

Sub stream: D1/VGA/CIF@ (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 64 kbps–8,192 kbps

H.265: 25 kbps–6,400 kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic Image Stabilization (EIS)

Digital Zoom

5×

Image Rotation

180°

S/N Ratio

≥55 dB

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

Interoperability

CGI;SDK;ONVIF (Profile S & Profile T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (256 GB); FTP

Browser

IE 7 and later versions;

All Chrome versions; All Firefox versions; All Safari versions

Management Software

DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4

Port

Alarm Linkage

Capture; recording; send email

Alarm Event

Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 2 A ± 10%

PoE+ (802.3at)

Power Consumption

Basic: 8 W

Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC)

Power Adapter

Optional

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

240 mm × Φ151.5 mm (9.45″ × Φ5.94″)

Net Weight

1.5 kg (3.31 lb)

Gross Weight

2.5 kg (5.51 lb)

Filter

Remarks

The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
