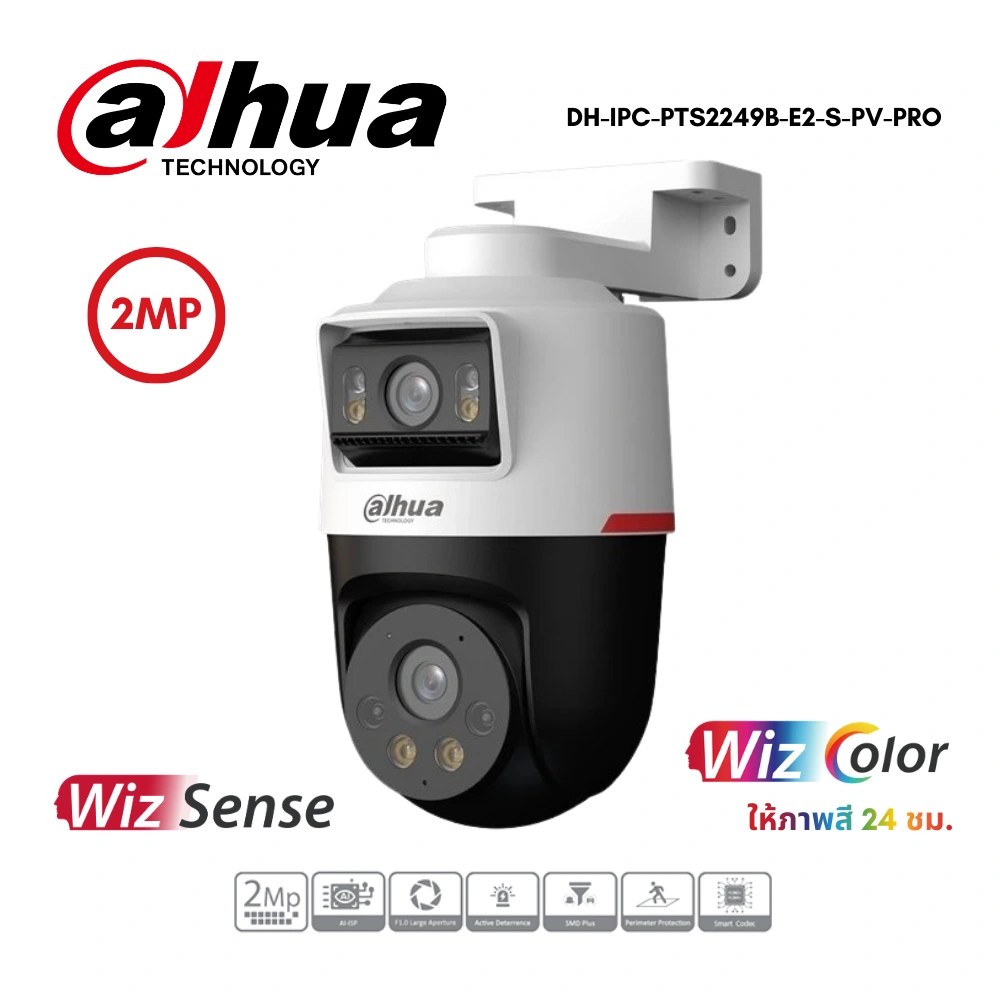

กล้องวงจรปิด IP Dahua WizSense 2MP รุ่น DH-IPC-PTS2249B-E2-S-PV-PRO

Camera

Image Sensor

Channel 1 (PT Lens): 1/2.9″ CMOS
Channel 2 (Fixed Lens): 1/2.9″ CMOS

Max. Resolution

Channel 1 (PT Lens): 1920 (H) × 1080 (V)
Channel 2 (Fixed Lens): 1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0006 lux@F1.0

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

4 (Warm light)

Lens

Lens Type

Channel 1 (PT Lens): Fixed-focal
Channel 2 (Fixed Lens): Fixed-focal

Lens Mount

M12

Focal Length

Channel 1 (PT Lens): 3.6 mm
Channel 2 (Fixed Lens): 3.6 mm

Max. Aperture

Channel 1 (PT Lens): F1.0
Channel 2 (Fixed Lens): F1.0

Field of View

Channel 1 (PT Lens): H: 81°; V: 44°; D: 95°
Channel 2 (Fixed Lens): H: 81°; V: 44°; D: 95°

Iris Control

Fixed

Close Focus Distance

Channel 1 (PT Lens): 1.7 m (5.58 ft)
Channel 2 (Fixed Lens): 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

Channel 1 (PT Lens)

55.7 m
(182.74 ft)

22.3 m
(73.16 ft)

11.1 m
(36.42 ft)

5.6 m
(18.37 ft)

Channel 2 (Fixed Lens)

55.7 m
(182.74 ft)

22.3 m
(73.16 ft)

11.1 m
(36.42 ft)

5.6 m
(18.37 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1 (PT Lens):
Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Channel 2 (Fixed Lens):
Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

2 streams

Resolution

Channel 1 (PT Lens):
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Channel 2 (Fixed Lens):
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR; CBR

Video Bit Rate

H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Security

Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE;
Chrome;
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

Android;iOS

Function

Light Warning

Warm light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low

Sound Warning

Offers 3 sound alarms and supports importing custom sound alarms.
Sound: 0–100.
Play times can be set from 1 to 10.

PTZ

Pan/Tilt Range

Channel 1 (PT Lens): Pan: 0° to 350°; Tilt: 0° to 90°;
Channel 2 (Fixed Lens): Pan: 0° to 326°; Tilt: –10° to 15°

Manual Control Speed

Pan: 0.1°/s–55.4°/s; Tilt: 0.1°/s–29.3°/s

Preset

300

Preset Speed

Pan: 55.4°/s; Tilt: 29.3°/s

Tour

8 (up to 32 presets per tour)

Power-off Memory

Yes

Idle Motion

Tour;Preset

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 2.3 W (12 VDC); 3.1 W (PoE);
Max.: 9.2 W (12 VDC); 10.5 W (PoE) (intelligence on + WDR + illuminator on + PT rotation + speaker on)

Environment

Operating Temperature

–40 °C to +50 °C (–40 °F to +122 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +50 °C (–40 °F to +122 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP66

Structure

Casing Material

Plastic

Product Dimensions

159.4 mm × 110.1 mm × 210 mm (6.28″ × 4.33″ × 8.27″) (L × W × H)

Net Weight

0.62 kg (1.37 lb)

Gross Weight

0.87 kg (1.92 lb)
