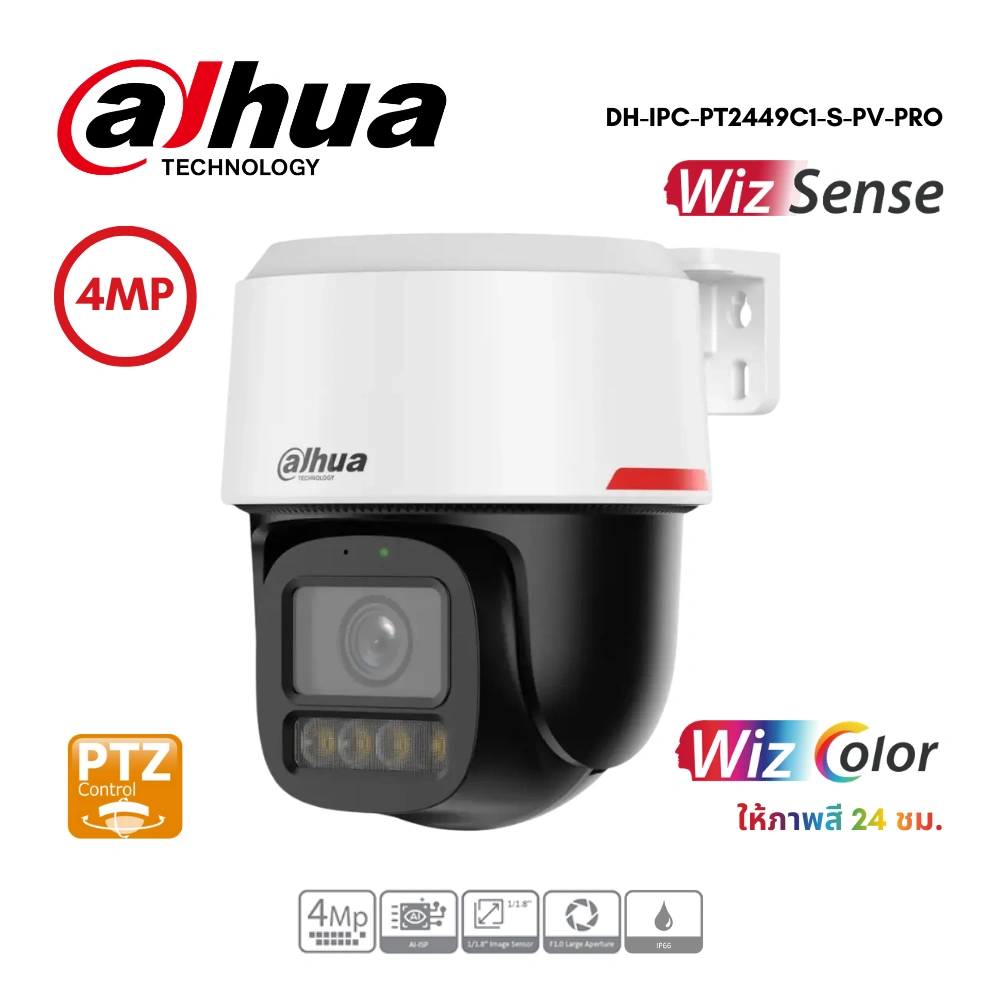

กล้องวงจรปิด IP Dahua WizColor 4MP รุ่น DH-IPC-PT2449C1-S-PV-PRO

Camera

Image Sensor

1/1.8″ CMOS

Pixel

4MP

Max. Resolution

2688 (H) × 1520 (V)

ROM

256 MB

RAM

256 MB

Electronic Shutter Speed

1–1/100,000 s

Scanning System

Progressive

Min. Illumination

0.0005 lux@F1.0 (Color, 30 IRE);
0 lux (Illuminator on);

Illumination Distance

3.6 mm: 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual; Off

Illuminator Number

4 (Warm light)

Lens

Focal Length

3.6 mm

Max. Aperture

F1.0

Field of View

3.6 mm: H: 97°; V: 52°; D: 114°

Close Focus Distance

3.6 mm: 2.6 m (8.53 ft)

DORI Distance

PTZ

Pan/Tilt Range

Pan: 0° to 345°;
Tilt: 0° to 90°

Manual Control Speed

Pan: 0.1°–34.5°/s; Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 0.1°–33.8°/s; Tilt: 0.1°–36.3°/s

Preset

80

Tour

8 (up to 6 presets per tour; the stay duration for each preset is 60 to 360 sec and tour interval is 900 to 3,600 sec)

Power-off Memory

Yes

Idle Motion

Preset;Tour

Smart Event

IVS

Tripwire; intrusion

Human Detection

Yes

Vehicle Detection

Yes

Intelligence

Smart Tracking

Auto Tracking Lite

SMD

SMD 3.0

Active Deterrence

Light Warning

Warm light warning
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning

Offers 3 sound alarm.
Sound can be set from 0%–100%.
Play times can be set from 1-10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

2 streams

Resolution

4M (2688 × 1520);4M (2560 × 1440);3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704×576);VGA(640 × 480); CIF(352 × 288)

Video Frame Rate

Main stream: 2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 8 kbps–6,400 kbps
H.265: 3 kbps–3,840 kbps

Day/Night

Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; Manual; Gain Priority

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Digital Zoom

16 ×

Image Rotation

180°

S/N Ratio

≥55 dB

Audio

Audio Compression

PCM, G.711A, G.711Mu

Built-in MIC

Yes

Built-in Speaker

Yes

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;NTP;DHCP;DNS;DDNS;IPv6;SSL;QoS;FTP;ICMP;IGMP;ARP;RTCP;RTP;RTMP

Interoperability

ONVIF (Profile S & Profile G & Profile T);CGI;SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (Up to 512 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

DMSS;NVR

Mobile Client

iOS;Android

Function

Abnormal Sound Alarm

Yes

Certification

Certifications

CE

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; recording; audio; light

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 1A ± 10% PoE (802.3af)

Power Consumption

PoE: Basic: 3.6 W Max: 9.5 W (illuminator + PTZ)

Power Adapter

Optional

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Protection

IP66;TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

153.5 mm × Φ129.3 mm (6.04″ × Φ5.09″)

Net Weight

0.8kg (1.76 lb)

Gross Weight

1.2kg (2.64 lb)
