NEW

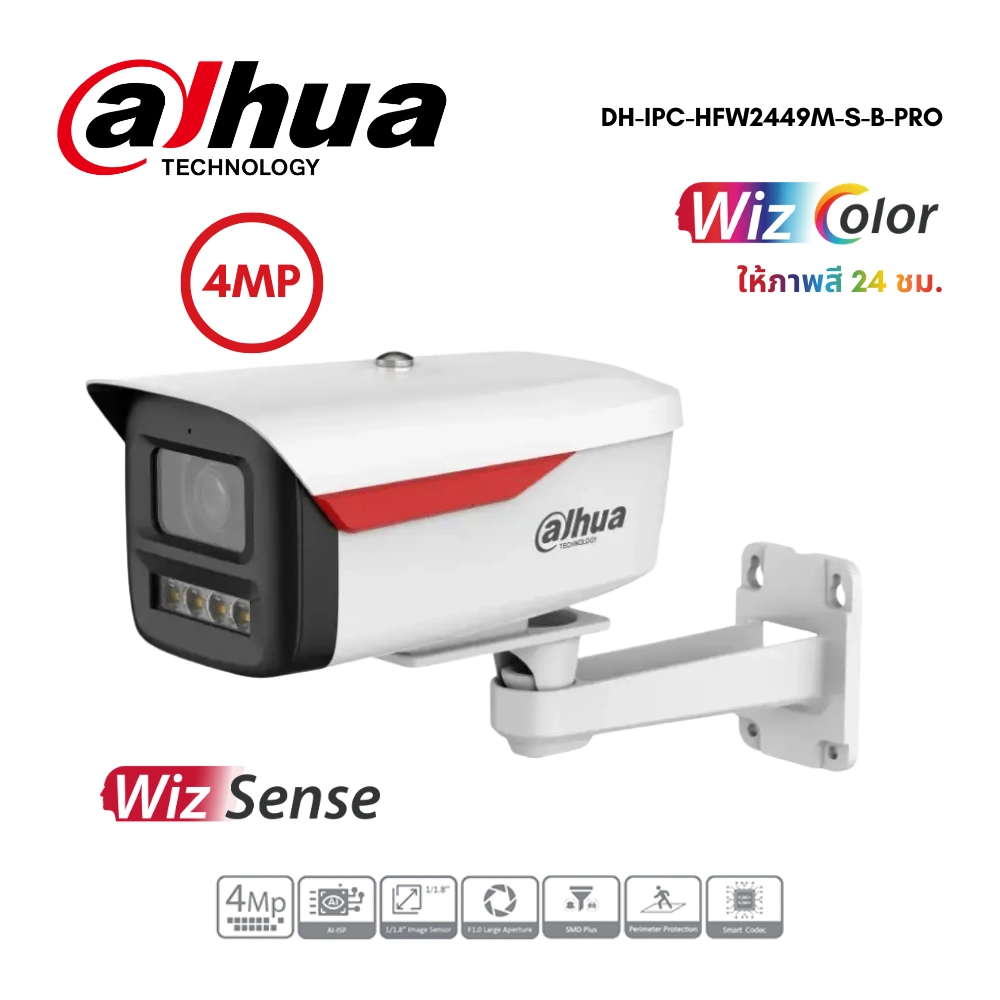

กล้องวงจรปิด IP Dahua 4MP WizColor รุ่น DH-IPC-HFW2449M-S-B-PRO

฿2,490.00

4MP WizColor Fixed-focal Bullet WizSense Network Camera

4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440
(2560 × 1440) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light, and the max. illumination distance is 50 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio
detection, no SD card, SD card full, SD card error, network disconnection,
IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD Plus

Categories: Dahua, Dahua Analog Camera, Dahua IP Camera, Dahua WizColor Series, Dahua WizSense Series Tags: analog, เครื่องบันทึก

Description
Additional information

กล้องวงจรปิด IP Dahua 4MP WizColor รุ่น DH-IPC-HFW2449M-S-B-PRO ความละเอียด 4MP ให้ภาพสีคมชัดตลอด 24 ชม. ด้วยเทคโนโลยี WizColor
เหมาะสำหรับติดตั้งภายนอกอาคาร เพิ่มความชัดเจนในที่แสงน้อย รองรับงานรักษาความปลอดภัยทั้งบ้านและธุรกิจ

4MP WizColor Fixed-focal Bullet WizSense Network Camera

รูรับแสง F1.0 ให้ภาพสี 24 ชั่วโมง แม้มืดสนิท
คมชัด 4 ล้านพิกเซล H.265 Codec
มีไฟ Warm Light ในตัว ระยะการมองเห็น 50 เมตร
รองรับ ROI , Smart H.264+ , H.265+
WDR , 3DNR , HLC , BLC
รองรับ Micro SD Card 256GB
มีไมค์ในตัว บันทึกเสียงได้

Camera

Image Sensor

1/1.8″ CMOS

Max. Resolution

2688 (H) × 1520 (V)

128 MB

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0001 lux@F1.0

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

4 (Warm light)

Lens Type

Fixed-focal

Lens Mount

Focal Length

3.6 mm; 6 mm

Max. Aperture

Field of View

3.6 mm: H: 89°; V: 48°; D: 105°
6 mm: H: 55°; V: 29°; D: 64°

Iris Control

Fixed

Close Focus Distance

3.6 mm: 3.0 m (9.84 ft)
6 mm: 6.0 m (19.69 ft)

DORI Distance

Detect

Observe

Recognize

Identify

3.6 mm

70.3 m

(230.64 ft)

28.1 m

(92.19 ft)

14.1 m

(46.26 ft)

7.0 m

(22.97 ft)

116.6 m

(382.55 ft)

46.6 m

(152.89 ft)

23.3 m

(76.44 ft)

11.7 m

(38.39 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR; CBR

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

Mirror

Privacy Masking

4 areas

Defog

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

Android;iOS

Security

Session security;Digest; WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Security warning; IP/MAC filtering; HTTPS; Trusted upgrade; syslog; Trusted boot

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 1.7 W (12 VDC); 2.0 W (PoE);
Max.: 5.3 W (12 VDC); 6.3 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity
