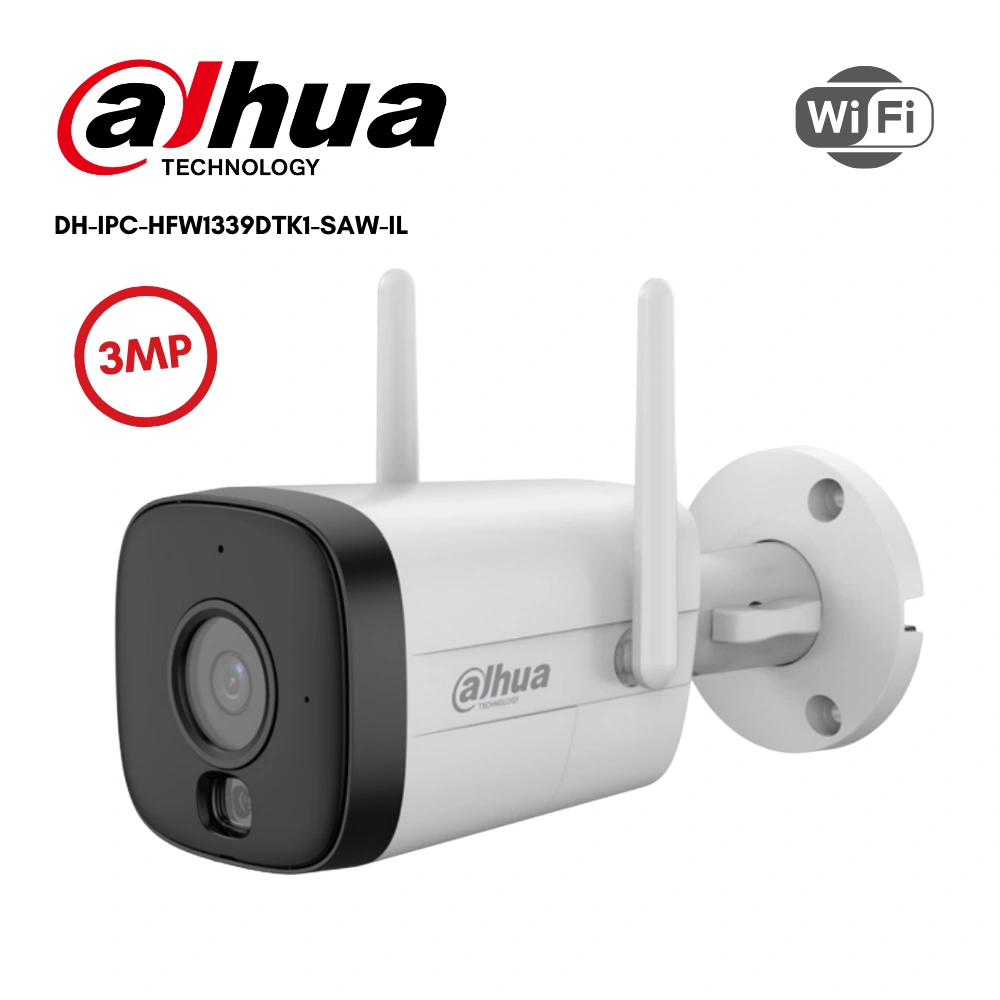

กล้องวงจรปิด IP Dahua Wi-Fi 3MP รุ่น DH-IPC-HFW1339DTK1-SAW-IL

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE)

0.0005 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator Number

1 (Multi-core (IR + warm) light)

Angle Adjustment

Tilt: 0°–90°
Rotation: 0°–360°

Lens Type

Fixed-focal

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 103°; V: 55°; D: 123°
3.6 mm: H: 85°; V: 46°; D: 100°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.264B; H.264; H.264H; H.265;

Video Frame Rate

Main stream: 2304 × 1296@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 32 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm

Wi-Fi Pairing

Bluetooth pairing

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

Storage

Micro SD card (support max. 256 GB)

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

Android;iOS

Function

Abnormal Sound Alarm

Yes

General

Certifications

CE

Power Supply

12 VDC (±30%)

Power Consumption

Basic: 2.2 W (12 VDC);
Max.: 4.1 W (12 VDC)

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP67

Camera Button

Reset button

Casing Material

Metal + plastic

Product Dimensions

172.4 mm × 83.3 mm × 75.0 mm (6.79″ × 3.28″ × 2.95″) (L × W × H)

Net Weight

0.3 kg (0.66 lb)
