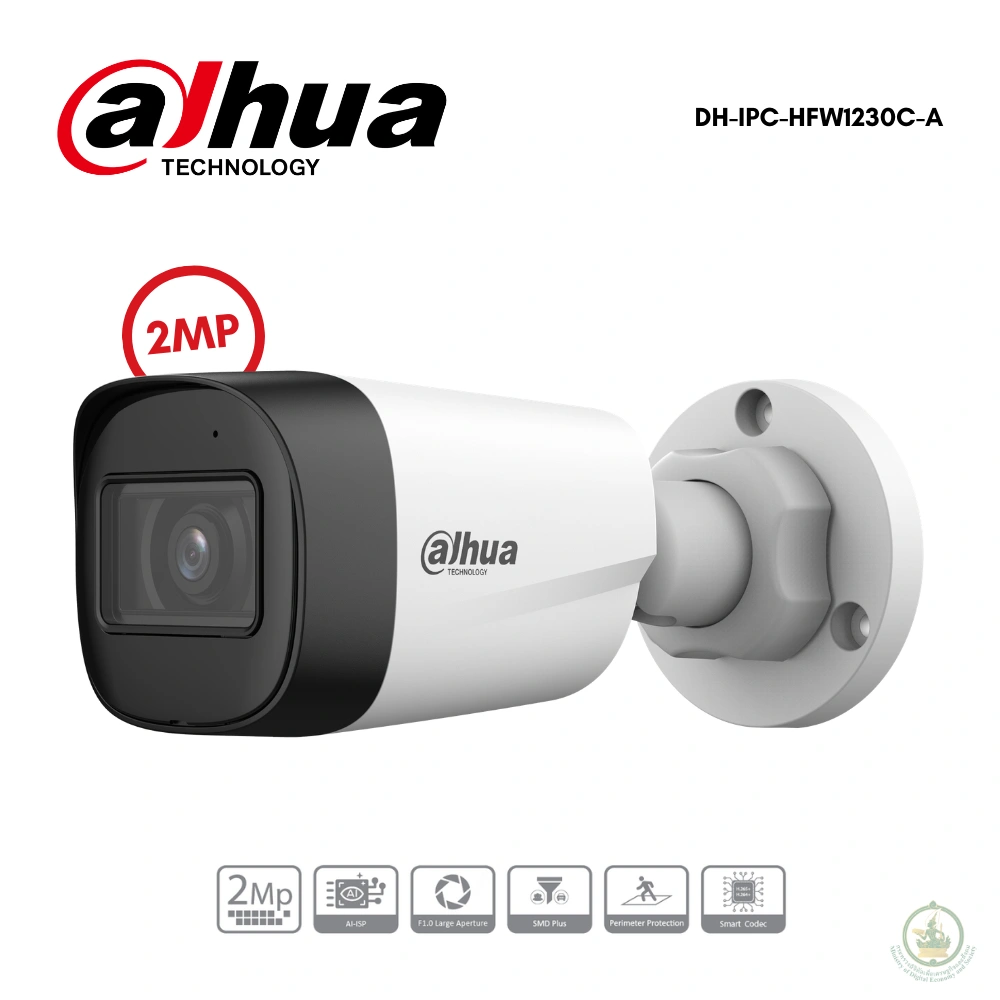

กล้องวงจรปิด IP Dahua 2MP รุ่น DH-IPC-HFW1230C-A

฿1,150.00

2MP Entry IR Fixed-focal Bullet Network Camera

2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
Outputs max. 2 MP (1920 ×1080)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various
monitoring scenes.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
Abnormality detection: Motion detection, video tampering, audio
detection, network disconnection, IP conflict, illegal access.
Built in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Supports human detection.

Categories: Dahua, Dahua IP Camera, Dahua Standard Series Tags: IP, กล้องวงจรปิด

Description
Additional information

กล้องวงจรปิด IP Dahua 2MP รุ่น DH-IPC-HFW1230C-A กล้อง Outdoor ความละเอียด 2MP มีไมค์ในตัว บันทึกภาพคมชัดทั้งกลางวันและกลางคืน
รองรับอินฟราเรดสำหรับมองเห็นเวลากลางคืน เหมาะสำหรับติดตั้งภายนอกบ้าน ร้านค้า และสำนักงาน

2MP Entry IR Fixed-focal Bullet Network Camera

ความละเอียด 2MP
รูปทรง กระบอก Bullet
ขนาดเลนส์ Fixed 2.8 mm ,3.6 mm
ค่า(LUX) 0.01 lux@F2.0
การบีบอีดไฟล์ H.265
ระยะอินฟาเรด IR 30 เมตร
การย้อนแสง DWDR
Built in Mic มีไมค์ในตัว บันทึกเสียงได้
Supports human detection.
มาตรฐานการป้องกัน IP67
Power Supply DC12V, PoE

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

16 MB

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

Focal Length

2.8 mm;3.6 mm

Max. Aperture

Field of View

2.8 mm: H: 101°; V: 54°; D: 119°
3.6 mm: H: 86°; V: 47°; D: 103°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 0.9 m (2.95 ft)

DORI Distance

Detect

Observe

Recognize

Identify

2.8 mm

45.5 m (149.27 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

4.6 m

(15.09 ft)

3.6 mm

52.4 m (171.92 ft)

21.0 m

(68.90 ft)

10.5 m

(34.45 ft)

5.2 m

(17.06 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

Human Detection

Support the classification and accurate detection of human

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

At Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception; SMD (human)

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S & Profile T); CGI

User/Host

6 (Total bandwidth: 24 M)

Storage

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Configuration encryption;Trusted execution;Digest;Security logs;HTTPS;Trusted upgrade;WSSE;Trusted boot;Account lockout;Generation and importing of X.509 certification;Video encryption

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 1.3 W (12 VDC); 1.6 W (PoE);

Max. (H.265 + intelligence on + WDR+ IR intensity): 4.7 W (12 VDC); 6.0 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)
