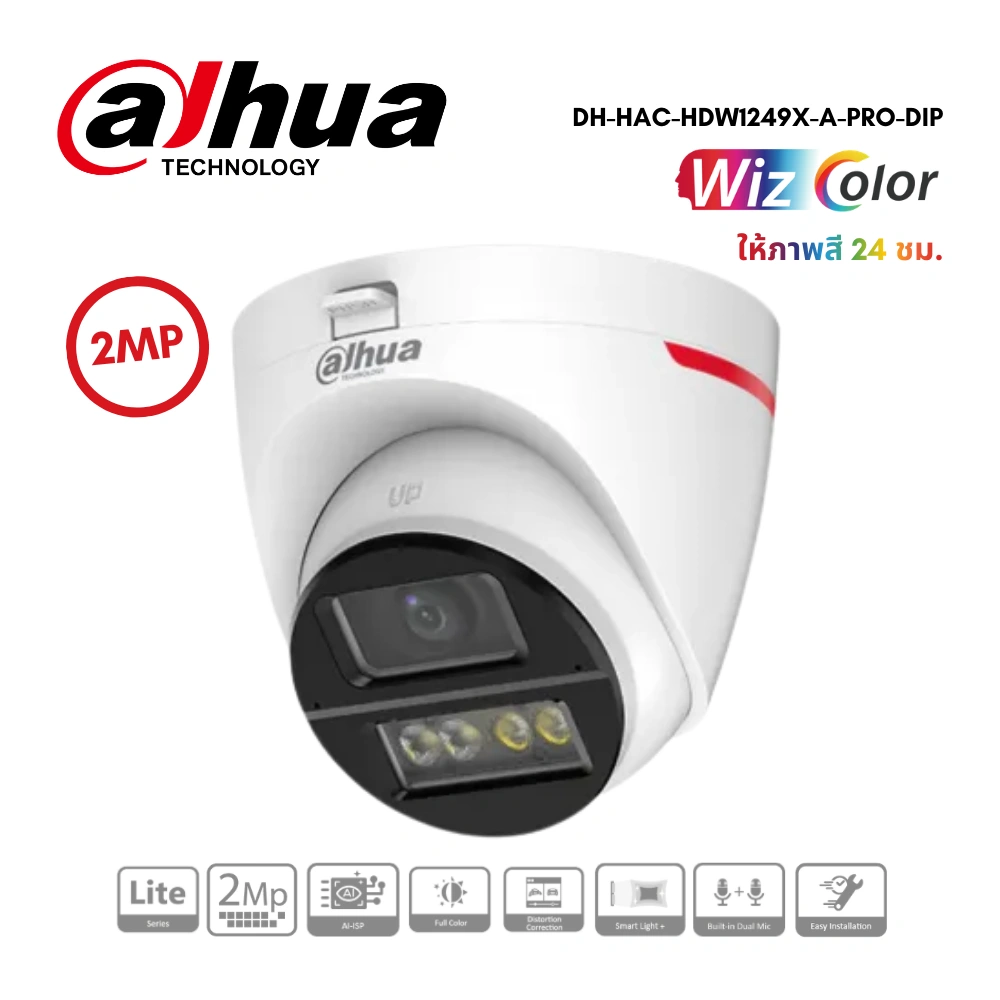

กล้องวงจรปิด Dahua HDCVI 2MP รุ่น DH-HAC-HDW1249X-A-PRO-DIP ความละเอียด 1920×1080 (Full HD) ให้ภาพคมชัด รองรับระบบ HDCVI ใช้งานร่วมกับเครื่องบันทึก DVR
รองรับการสลับระบบสัญญาณผ่าน DIP Switch (HDCVI / TVI / AHD / CVBS) เพิ่มความยืดหยุ่นในการติดตั้ง เหมาะสำหรับงานอัปเกรดระบบเดิม มีไมโครโฟนในตัวสำหรับบันทึกเสียง และรองรับฟังก์ชันปรับภาพอัตโนมัติ เช่น DWDR และ 3D NR
ตัวกล้องทรงโดม ดีไซน์กะทัดรัด แข็งแรง มาตรฐานกันน้ำกันฝุ่น IP67 สามารถติดตั้งได้ทั้งภายในและภายนอกอาคาร เช่น บ้านพัก ร้านค้า และสำนักงาน
2MP WizColor HDCVI Fixed-focal Eyeball Camera
ความละเอียด 2MP (Full HD 1080P)
เทคโนโลยี WizColor ให้ภาพสี 24/7
บันทึกวิดีโอสูงสุด 1080P @30fps
AI-ISP ช่วยปรับภาพอัตโนมัติให้คมชัด
Distortion Correction ลดการบิดเบี้ยวของภาพ
Smart Light+ ระยะส่องสว่างสูงสุด 50 เมตร
Super Adapt, 130dB True WDR และ 3D NR ให้ภาพชัดแม้ย้อนแสง
ไมค์คู่ในตัว (Dual Mic)
ดีไซน์ Eyeball ติดตั้งง่าย ประหยัดเวลา
เลนส์ Fixed 3.6mm (เลือก 2.8mm ได้)
รองรับสัญญาณ CVI / CVBS / AHD / TVI (สลับได้)
มาตรฐานกันน้ำกันฝุ่น IP67
ใช้ไฟเลี้ยง 12VDC
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 2 MP CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.0001 lux@F1.0 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >65 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 50 m (164.04 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle Adjustment | Pan: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm; 3.6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 2.8 mm: H: 101°; V: 53.4°; D: 119.5° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | CVI: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Color | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | BLC; HLC; WDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 130 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Yes (It needs to be controlled through the XVR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Mode | Smart Light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Yes (It needs to be controlled through the XVR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN 62368-1; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in Mic | Yes, built-in dual Mic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Audio | CVI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pick-up Distance | 12 m (39.37 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC (±30%) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Max 5.6 W (12 VDC, LED on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | <95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | <95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-corrosion Level | Basic Protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Dome (metal + plastic) + plastic enclosure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | Φ109.9 mm × 102.2 mm (Φ4.33″ × 4.02″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.33 kg (0.73 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.45 kg (0.99 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Wall mount; ceiling mount; vertical pole mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
