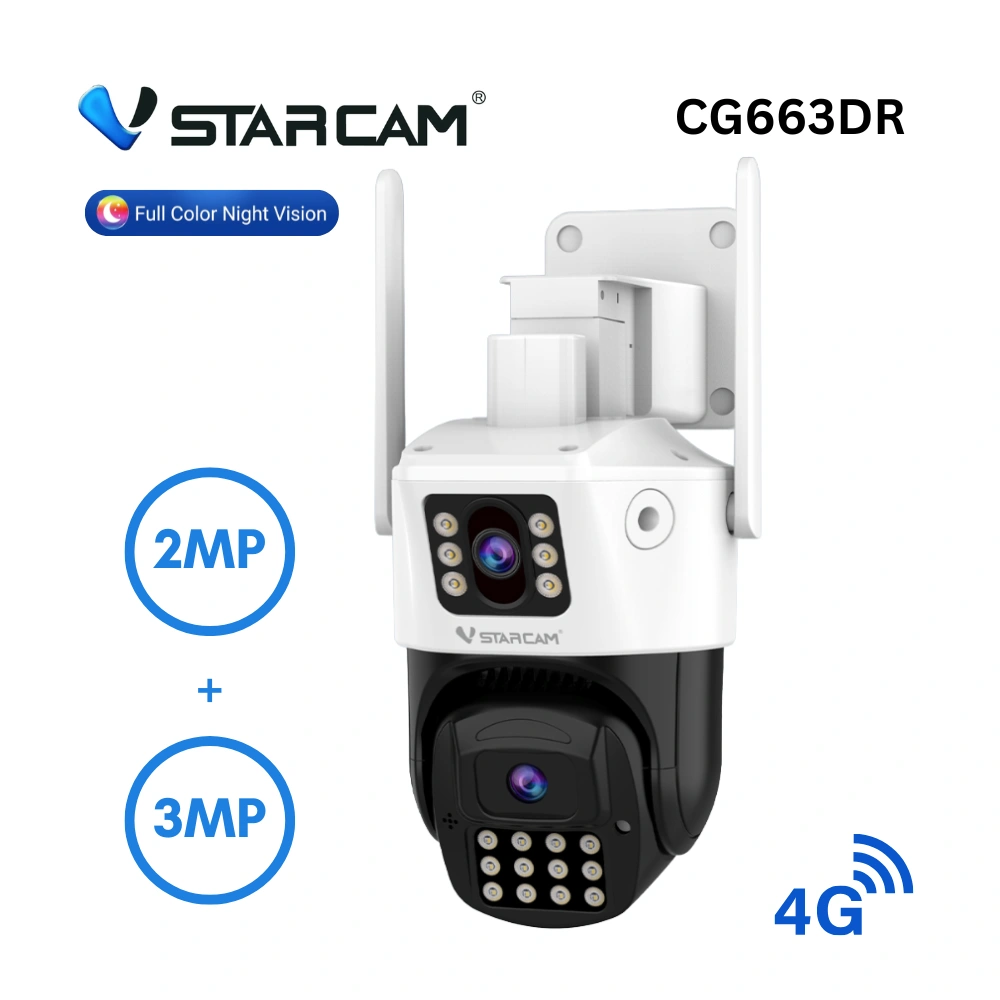

กล้องวงจรปิด 4G VStarcam 2MP+3MP รุ่น CG663DR ยกระดับการรักษาความปลอดภัยด้วยกล้อง 4G เลนส์คู่ CG663DR ที่ให้มุมมองกว้างและชัดเจนที่สุด พร้อมบริการออกแบบและ ติดตั้ง กล้องวงจรปิดอัจฉริยะครบวงจร
CG663DR (4G Dual-Lens Panoramic Camera)
Dual Lens Dual View เหนือกว่าด้วยเลนส์คู่ที่ให้ภาพ 2 มุมมองพร้อมกันในหน้าจอเดียว ช่วยกำจัดจุดบอด (Blind Spots) ได้อย่างมีประสิทธิภาพ ให้คุณเฝ้าระวังพื้นที่กว้างได้ครอบคลุมกว่าเดิม
4G Cabling Free รองรับการเชื่อมต่อผ่านเครือข่าย 4G ความเร็วสูง ไม่ต้องเดินสายแลนให้วุ่นวาย ติดตั้งได้ทุกที่ที่มีสัญญาณโทรศัพท์ เหมาะสำหรับหน้างานกลางแจ้งหรือพื้นที่ห่างไกล
2MP HD & ISP Technology บันทึกภาพความละเอียดสูง 2 ล้านพิกเซล พร้อมเทคโนโลยี ISP (Image Processing Technology) ที่ช่วยปรับจูนภาพให้สีสันสมจริงและคมชัดเป็นธรรมชาติ
F2.0 Large Aperture รูรับแสงขนาดใหญ่ F2.0 ช่วยให้กล้องรับแสงได้มากขึ้น ส่งผลให้ภาพในที่แสงน้อยชัดเจนและมีสัญญาณรบกวน (Noise) ต่ำ
Full Color Night Vision มอบภาพสีคมชัดตลอด 24 ชั่วโมง แม้ในเวลากลางคืนที่มืดสนิท ช่วยให้ระบุลักษณะบุคคลหรือยานพาหนะได้อย่างแม่นยำ
Intelligent AI Human Detection ระบบตรวจจับมนุษย์อัจฉริยะ คัดกรองเฉพาะการเคลื่อนไหวของบุคคลเพื่อลดการแจ้งเตือนผิดพลาด พร้อมส่งสัญญาณเตือนแบบ Real-time ทันที
Two-Way Audio รองรับการสนทนาโต้ตอบแบบ 2 ทิศทาง มีไมค์และลำโพงในตัว สามารถพูดคุยผ่านแอปพลิเคชันบนสมาร์ทโฟนได้จากระยะไกล
Audio Visual Alarm เพิ่มความปลอดภัยด้วยระบบแจ้งเตือนทั้งแสงและเสียง (ไซเรน) เพื่อขับไล่ผู้บุกรุกทันทีที่ตรวจพบเหตุผิดปกติ
IP66 Waterproof ตัวเครื่องแข็งแรงทนทาน พร้อมมาตรฐานกันน้ำกันฝุ่น IP66 มั่นใจได้ว่ากล้องจะทำงานได้อย่างเสถียรท่ามกลางแดดและฝน
Cloud Storage & Motion Detection รองรับการบันทึกข้อมูลบน Cloud ป้องกันข้อมูลสูญหาย และเริ่มบันทึกทันทีเมื่อตรวจพบความเคลื่อนไหว (Motion Detection)
| Sorts | Type | Parameters |
|---|---|---|
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU / Memory | Ingenic / 512Mb |
| Image sensor | 1/2.7″ 1080p progressive scan CMOS sensor | |
| Min. Illumination | 0.5Lux (Color), 0.1Lux (B&W) | |
| Lens / Viewing angle | 4mm / 91° | |
| Sensor performance | Auto white balance, Gain control, Backlight compensation | |
| Night vision | Black and white / Full-color night vision | |
| Pan / Tilt | Horizontal: 350°, Vertical: 90° | |
| Video & Audio | Resolution | 1080P (2MP) / 1296P (3MP) @ 15FPS |
| Compression | H.264 main profile / Motion-JPEG / JPEG | |
| IR Control / Bit rate | IR-CUT, soft photosensitive / 128~4096kbps | |
| Audio In / Out | Built-in -38dB Mic / 8Ω 1W Speaker | |
| Sampling frequency | 8KHz/16bit / G711A | |
| Network & Storage | 4G Network (China) | FDD: B1/3/5/8, TDD: B34/38/39/40/41, WCDMA: B1/5/8 |
| Protocol / Interface | TCP/IP, HTTP, RTSP, P2P etc. / 10/100Mbps | |
| External TF card | Supports up to 256GB | |
| Cloud storage | Supported (Purchase optional) | |
| Alarm | Detection | Motion, Human detection, Human framing, Siren, Area detection |
| Physical | Power Supply | DC12V±5% (Max power: 11.88W) |
| Condition | Temp: -10~55 ℃, Humidity: <90% | |
| Camera Size | 183x141x237mm | |
| Weight | Net: 545g / Gross: 845g | |
| Packaging Box | 253x200x153mm | |
| Carton Size | 637x520x425mm (16PCS/CTN) |
