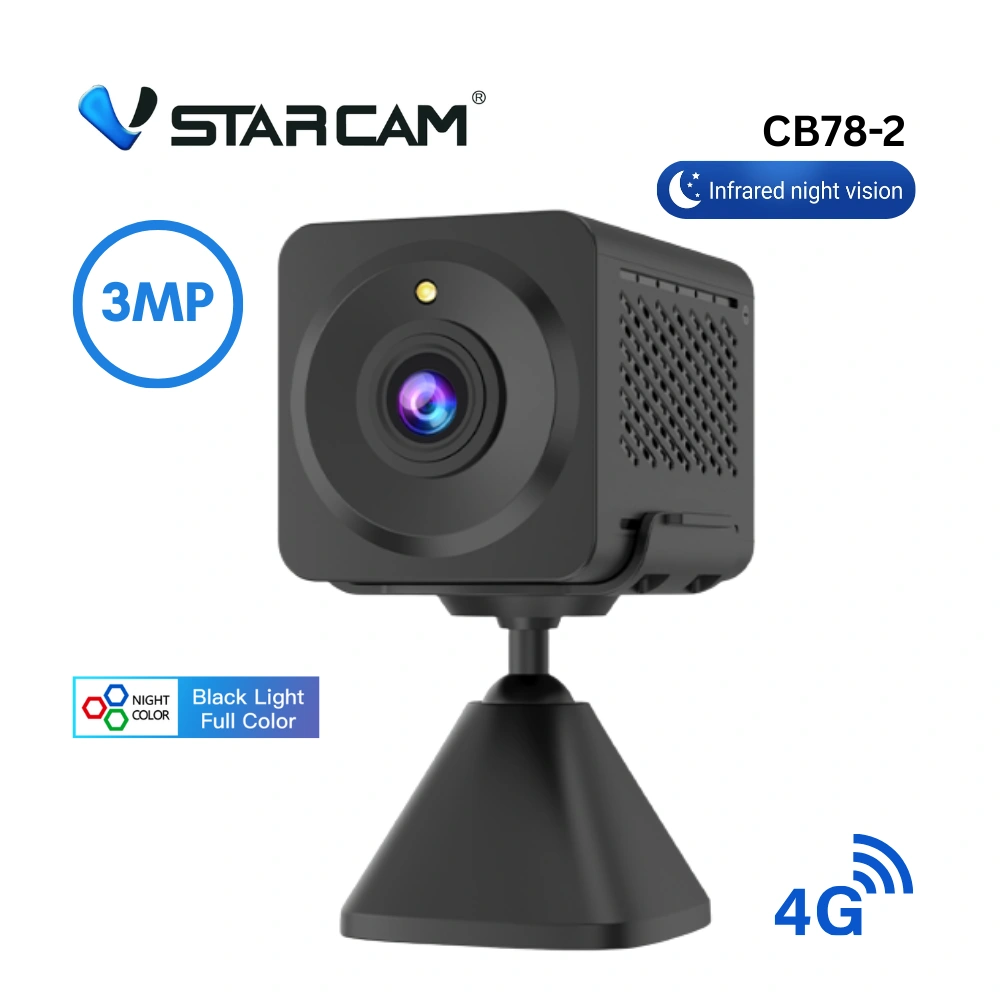

กล้องวงจรปิด 4G VStarcam 3MP รุ่น CB78-2 สัมผัสเทคโนโลยีภาพสีในที่มืดระดับโลกกับกล้องจิ๋วตระกูล CB78 ที่ให้ความคมชัดสูงและติดตั้งได้ทุกที่ พร้อมบริการออกแบบระบบและ ติดตั้ง กล้องวงจรปิดอัจฉริยะครบวงจร
CB78-2 (4G Network)
3 MP Ultra HD Resolution ให้ความคมชัดสูงถึง 3 ล้านพิกเซล เห็นรายละเอียดชัดเจนกว่ากล้องจิ๋วทั่วไปในท้องตลาด
4G High-Speed Module รองรับซิมการ์ด 4G ความเร็วสูง เชื่อมต่ออินเทอร์เน็ตได้ทุกที่โดยไม่ต้องพึ่งพา Wi-Fi
Black Light Color Night Vision เทคโนโลยีขั้นสูงที่ทำให้ได้ภาพสีในเวลากลางคืน (Color Image) แม้ในจุดที่ไม่มีแสงช่วยส่องสว่าง (No fill lights)
F1.0 Super Large Aperture รูรับแสงขนาดใหญ่พิเศษ F1.0 ช่วยให้รับแสงได้มากกว่ากล้องปกติถึง 4 เท่า มอบความคมชัดในที่แสงน้อยได้อย่างยอดเยี่ยม
Advanced ISP Technology ระบบประมวลผลภาพ ISP ช่วยรักษาสีสันของภาพให้ถูกต้องและเป็นธรรมชาติที่สุด
Intelligent AI Human Detection ระบบตรวจจับความเคลื่อนไหวอัจฉริยะ คัดกรองเฉพาะมนุษย์เพื่อความแม่นยำในการแจ้งเตือน (Push Alarm)
Remote Live Feed ดูภาพสดและจัดการกล้องผ่านสมาร์ทโฟนได้จากทุกมุมโลกผ่านแอปพลิเคชัน
| Sorts | Type | Parameters |
|---|---|---|
| System | Operating system | Linux |
| Online visitor | Supports 4 visitors viewing at the same time | |
| APP | O-KAM Pro | |
| Collection | CPU / Memory | SSC335 (B version) / 512Mb |
| Image sensor | 1/2.9 CMOS sensor (0.01Lux) | |
| Lens | 4mm F1.0 | |
| Sensor Performance | Auto white balance, gain control, and backlight compensation | |
| Viewing angle | Diagonal: 95° | |
| Night vision | Color night vision (No IRCUT) | |
| Video | Resolution | 2304*1296P / 25FPS / 3 MP |
| Compression | H.264+ / H.264 / MJPEF / JPEG | |
| Bit rate | 128~4096kbps | |
| Adjustment | Brightness, contrast, OSD display | |
| Audio | Input / Output | Built-in -42dB Mic / 8Ω 1W Speaker |
| Sampling Rate | 8KHz / 16bit | |
| Compression | G711A | |
| AI | Detection | Humanoid detection, Motion, Area detection |
| Smart Notification | Custom notification sounds for different devices | |
| Intelligent Alarm | Siren alarm, Set sounds based on scenarios | |
| Area monitoring | Customize detection zones, Human framing | |
| Network | Protocol | TCP/IP, HTTP, UDP, DHCP, DNS, NTP, RTSP, P2P etc. |
| 4G (China) | FDD: B1/B3/B5/B8, TDD: B34/B38/B39/B40/B41, WCDMA: B1/B5/B8 | |
| 4G (Europe) | FDD: B1/B3/B5/B7/B8/B20, TDD: B38/B40/B41, WCDMA: B1/B5/B8 | |
| Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Supported (Optional purchase) | |
| Physical | Power / Voltage | DC5V±5% |
| Condition | Temp: -10~55℃; Humidity: <90% | |
| Dimensions / Weight | 40.5*39*57.5mm / Net weight: 65.5g | |
| What’s in the box | Camera, bracket, manual, charging cable | |
| Alarm detection | Motion, Human Framing, Siren, Area detection |
